Tripp Lite SmartRack SRW18US13 Manual

Model #: SRW18US13

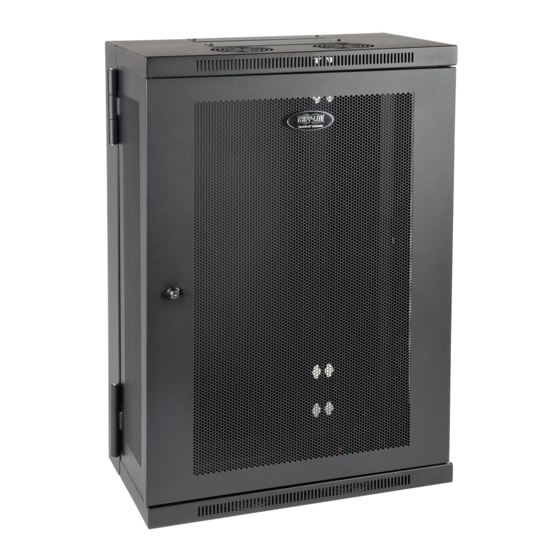

SmartRack Slim 18U Swinging Wall-Mount Rack Enclosure Cabinet

Description

The SRW18US13 slim 18U Wall-Mount Rack Enclosure is designed to safely store shallow network switches and patch panels. It integrates
wall-mounting, easy equipment access and cable management in Telco environments with limited floor space. Ventilated top and bottom panels
allows generous airflow to keep equipment operating safely. Top panel offers a convenient cable access cutout with cover. Adjustable front mounting
rails have square holes (default position) and tapped holes to accommodate 18U of equipment. A sturdy hinge between the cabinet and the
wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Supports up to 250lbs of equipment.
The SRW18US13 comes with a 5-year product warranty.

Package Includes

SRW18US13 Wall-Mount Rack Enclosure
Mounting Hardware
Keys
Owner's Manual

Features

18U slim wall-mounted enclosure
Dual threaded rail option
Ventilated top and bottom panels for increased airflow
Locking, reversible front door
Hinged cabinet swings away from wall bracket for easy equipment and cable access
Fully assembled for quick installation
PCI-Compliant: meets stringent physical security requirements

Specifications

PHYSICAL
Installed whole system
maximum rack depth (inches)
Rack Height
Shipping Dimensions
(HWD/in)

Highlights

13
18U
41.61 x 25.6 x 14.96
Slim design for shallow network switches and patch panels
18U with dual threaded front rails
Locking, reversible front door
Hinged cabinet swings away from wall bracket for easy equipment access
(swing direction is reversible)
Fully assembled for quick installation
PCI-Compliant: meets stringent physical security requirements
