Tripp Lite SRW12US Specifications

Model Number: SRW12US
SmartRack 12U Wall-Mount Rack Enclosure Cabinet
Description

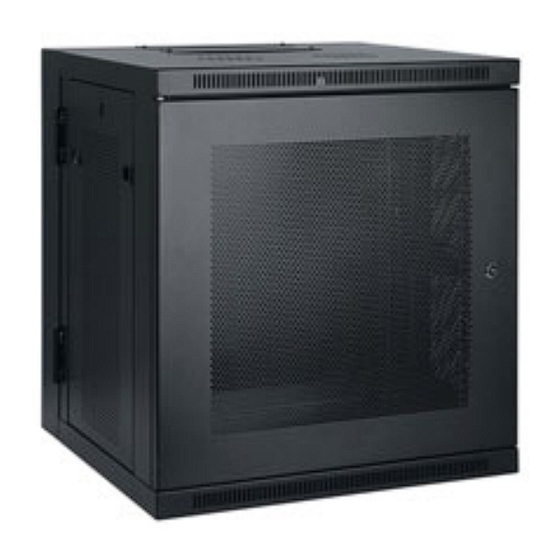

Tripp Lite's SRW12US Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with
limited floor space. Constructed with a hinged wall mounting bracket and a sturdy steel frame, it can accommodate up to 200 lbs. of equipment in
12U of rack space. Four adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. To allow easy
access to rackmounted equipment, the enclosure cabinet is hinged to swing away from the wall mounting bracket. The SRW12US also features
perforated lockable side panels and front door, assuring generous airflow to keep equipment operating safely. The front door is reversible and the
side panels are removable for easy access to equipment. The top and bottom panels of the enclosure include convenient cable routing ports.
Package Includes
SRW12US Wallmount Rack Enclosure
(20) M6 screws
(20) M6 cage nuts
(20) M6 washers
(2) Keys
Owner's Manual
Features
12U wall-mounted enclosure
Adjustable mounting depths from 3" to 20.5" inches
Ventilated front door and side panels for increased airflow
Hinged cabinet swings away from wall bracket for easy equipment and cable access
Locking, reversible front door
Locking, removable side panels
Top and bottom panel cable access openings
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Specifications
PHYSICAL
Installed whole system
maximum rack depth (inches)
Highlights
20.5
12U with adjustable front and rear vertical rackmount rails
Hinged cabinet swings away from wall bracket for easy equipment access
(swing direction is reversible)
Locking, reversible front door and locking, removable side panels
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry
Data Security Standard) Compliance
