Sennheiser ADN CU1 Quick Manual

Audio distribution network
Hide thumbs Also See for ADN CU1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Audio
Distribution
Network
ADN CU1
Quick guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADN CU1 and is the answer not in the manual?

Questions and answers

Related Manuals for Sennheiser ADN CU1

Summary of Contents for Sennheiser ADN CU1

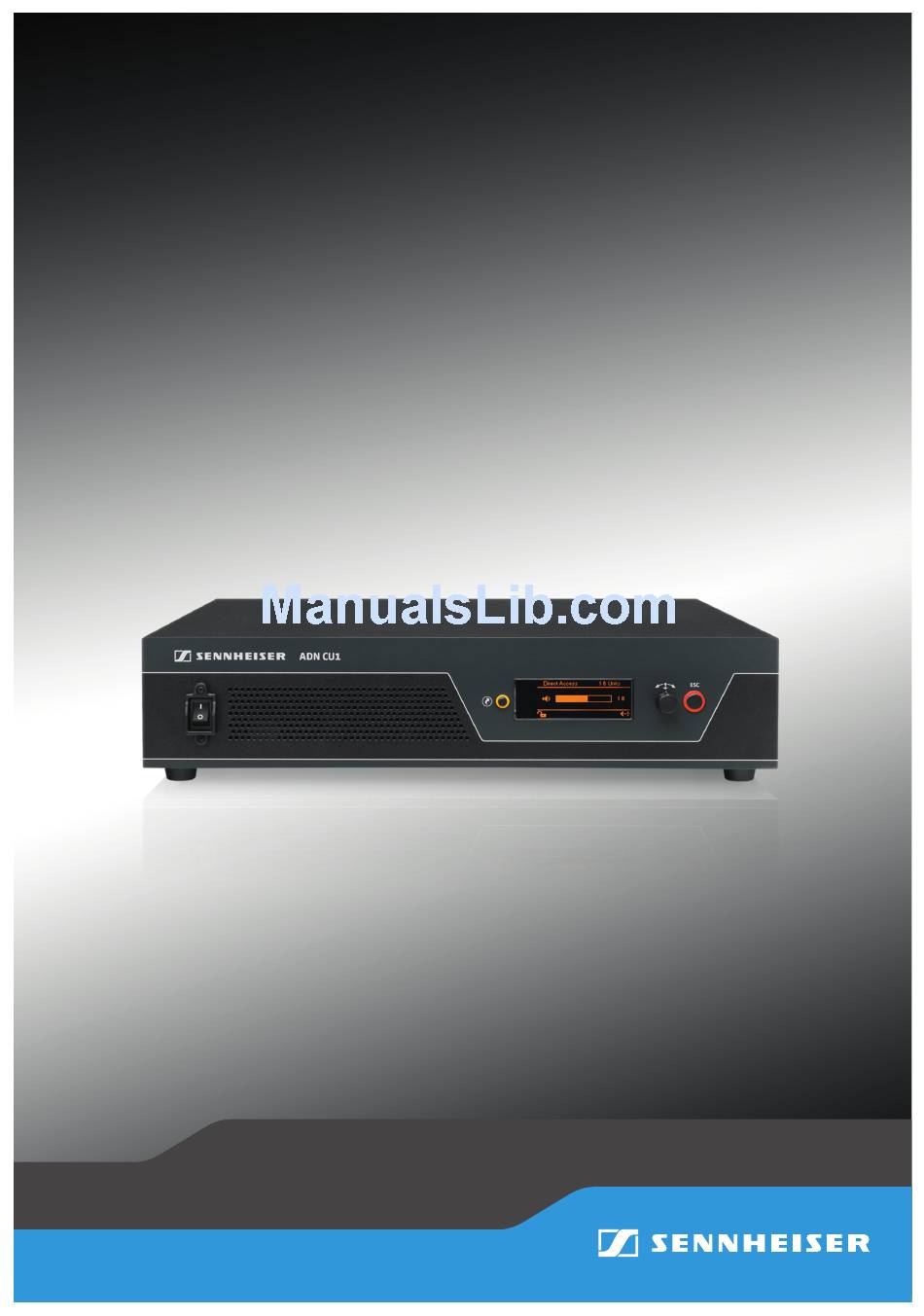

  • Page 1 Audio Distribution Network ADN CU1 Quick guide...

  • Page 2: Table Of Contents

    Overview of the ADN CU1 display panel ..............5 Structuring and controlling the conference system ..........6 Preparing the ADN CU1 central unit for use ............. 9 Setting up the conference system ................10 Using the ADN CU1 central unit ................14 Switching the conference system on/off ..............

  • Page 3: Information On This Quick Guide

    DVD-ROM supplied with the ADN CU1 central unit. The ADN CU1 central unit The ADN CU1 central unit is part of the Sennheiser ADN conference system. The central unit controls the operation of the entire conference system. Up to max.

  • Page 4: Delivery Includes

    Delivery includes Delivery includes 1 ADN CU1 central unit 1 mains cable (EU, UK or US version), length 1.8 m 1 quick guide 1 “Safety information” supplement 1 including, among other things, the “Conference Manager” software, the “ADN Cable Calculator” software and the instruction manual for the overall...

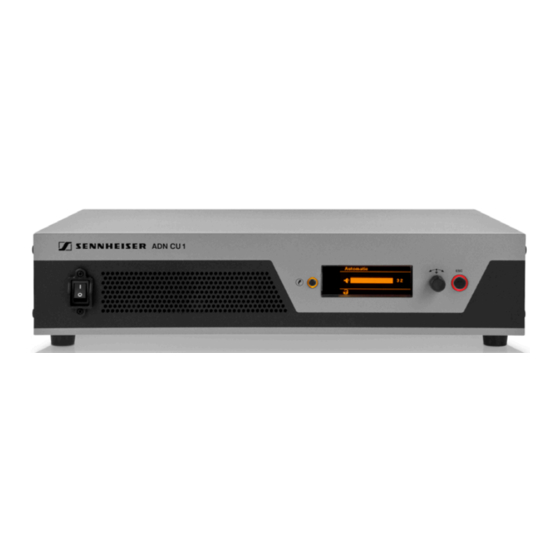

  • Page 5: Product Overview Adn Cu1 Central Unit

    Product overview ADN CU1 central unit Product overview ADN CU1 central unit IN –– AUDIO –– OUT PORT II PORT I 100-240V~ 50/60Hz 240W 2x 52.8V 1.75A A Front view B Rear view 6 IN On/off switch audio input 7 OUT...

  • Page 6: Overview Of The Adn Cu1 Display Panel

    Product overview ADN CU1 central unit Overview of the ADN CU1 display panel After switch-on, the central unit’s display shows progress bars (for the booting routine “Booting” and the self test “Selftest”) and then the standard display: Direct Access 30 Units...

  • Page 7: Structuring And Controlling The Conference System

    – 30-40 conference units connected in simple strings • large conference systems comprising an ADN CU1 central unit and a max. of 15 ADN PS power supplies – max. 400 conference units connected in simple strings or in ring topology per ADN PS power supply –...
  • Page 8 For setting up a large conference system with the maximum number of conference units (i.e. up to 400), you require one ADN CU1 central unit for controlling the con- ference and additional ADN PS power supplies for powering the conference units.
  • Page 9 For setting up a large conference system with redundant ring topology, you require one ADN CU1 central unit for controlling the conference and additional ADN PS power supplies for powering the conference units. The conference units are inter- connected in rings and two rings can be connected to each ADN PS power supply.

  • Page 10: Preparing The Adn Cu1 Central Unit For Use

    For recording a conference on a USB mass storage device, you can use the recording function of the ADN CU1 central unit, which saves the floor channel and all channels of the conference units as audio files in wav format.

  • Page 11: Setting Up The Conference System

    (see page 8). Place the ADN CU1 central unit and, if necessary, the ADN PS power supplies in the electrical equipment room. Place the conference units at the corresponding seats.
  • Page 12 For a small conference system, you do not require ADN PS power supplies. Connecting conference units The following describes how to connect one cable string to the ADN CU1 central connected in a cable string to the unit. If necessary, repeat these steps for a second cable string.
  • Page 13 Connecting a USB mass storage device for audio recordings to the central unit In order to be able to use the audio recording function of the ADN CU1 central unit, you require a USB mass storage device with the following characteristics:...
  • Page 14 You can also connect the PC and the central unit using a switch or similar. Install the “Conference Manager” software supplied on the DVD-ROM on your connected PC and configure the network (for further information on the soft- ware, refer to the detailed instruction manual “ADN Conference System”). ADN CU1 | 13...

  • Page 15: Using The Adn Cu1 Central Unit

    Using the ADN CU1 central unit Using the ADN CU1 central unit Switching the conference system on/off To switch the conference system on: On the ADN CU1 central unit and the ADN PS power supplies, set the on/off ADN CU1 switch to position “I”.

  • Page 16: Configuring The Conference System

    Temperature Bus Statistics Start Self-Test Reset Break Indication Reset Error Indication “Settings” “Versions” submenu submenu Network Hardware Versions Info Contrast Software Versions Info Lock Restore Factory Defaults “Network” submenu IP Address Mode IP Address Subnet Mask ADN CU1 | 15...
  • Page 17 “On”: Pressing the priority key deactivates all ADN D1 del- egate units. All requests to speak are deleted. “Off”: Pressing the priority key deactivates all currently active ADN D1delegate units. All requests to speak are retained. 16 | ADN CU1...
  • Page 18 XLR In Sensitivity +07.5 dBu +07.5 dBu “−18.0 dBu” ... “+18.0 dBu” “XLR In Equalizer” Adjusts the tone color of the XLR input XLR In Equalizer +02 dB –03 dB +05 dB “−12 dB” ... “+12 dB” ADN CU1 | 17...
  • Page 19 Displays the type and number of the conference units Units System : 216 D1 06 C1 connected to the connections PORT of the ADN CU1 : 00 D1 04 C1 central unit or ADN PS power supplies PS01 : 29 D1 01 C1 “Topology”...

  • Page 20: Working With The Operating Menu

    Changing from the standard display to the operating menu Direct Access 30 Units Main Menu Conference Audio System Standard display „Main Menu“ Press the jog dial. The standard display is replaced by the “Main Menu”. The last called-up menu item is highlighted. ADN CU1 | 19...
  • Page 21 To subsequently directly return to the last edited menu item: Press the jog dial repeatedly until the last edited menu item appears. Exiting the operating menu Press the standard display key. The standard display appears. Press the key repeatedly until the standard display appears. 20 | ADN CU1...

  • Page 22: Setting The Volume Of The Conference Units' Built-In Loudspeakers

    Do not use any solvents or cleansing agents. Switch the conference system off (see page 14). Before cleaning, disconnect the ADN CU1 central unit and the ADN PS power supplies from the mains power supply. Only use a dry and soft cloth to clean the product.

  • Page 23: Specifications Adn Cu1

    Specifications ADN CU1 To ensure optimum cooling of the ADN CU1 central unit and the ADN PS power supplies: Clean the air vents on the front, back and bottom from time to time with a soft brush or paintbrush in order to avoid dust deposits.
  • Page 24 Publ. 09/11 546415/A01 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com...
