Summary of Contents for Sennheiser audioport A 200

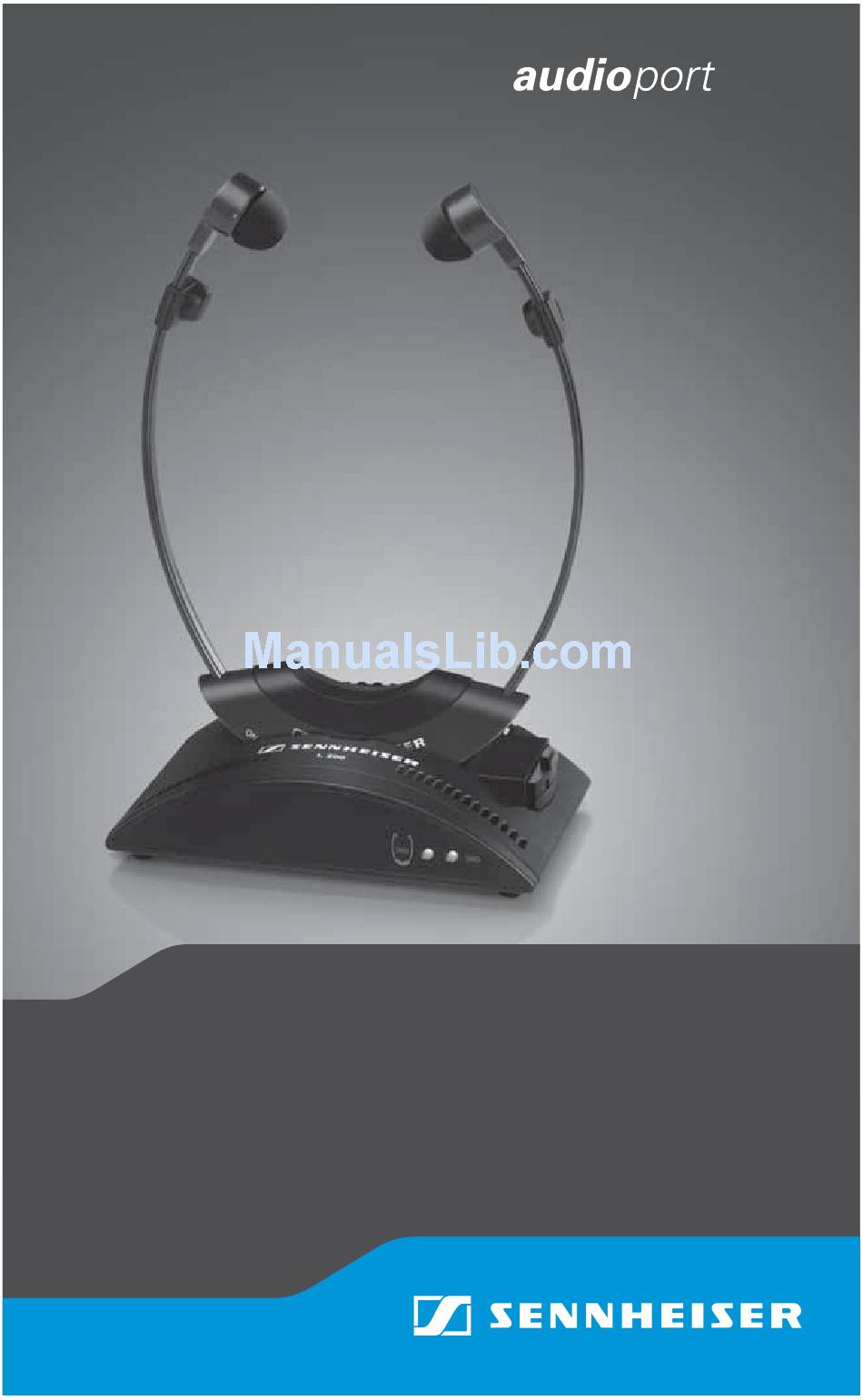

  • Page 1 A 200 Hearing Amplifier Instruction manual...
  • Page 2: Important Safety Information

    Do not use the product if it visibly damaged, if it has been dropped or if liquids or objects have gotten into the product. In this case, contact a qualified service center or your Sennheiser service partner to have the product tested.
  • Page 3 • a heat hazard, • a fire hazard, • an explosion hazard, • a smoke or gas hazard. Please understand that Sennheiser does not accept liability for damage arising from abuse or misuse. Keep away from Only charge rechargeable children.
  • Page 4: Delivery Includes

    2 pairs of spare ear pads 1 set of sealing tape 1 instruction manual A list of accessories can be found on the A 200 product page at www.sennheiser.com. For information on suppliers, contact your local Sennheiser partner: www.sennheiser.com > “Service & Support“. A 200...
  • Page 5: Product Overview

    Product overview Product overview Ear pads Charging compartment for A 200 DC socket for connection of  Microphones mains unit Balance control  Charging compartment for (at the rear) optional spare rechargeable Battery compartment battery On/off/sound amplification Charging indicator for optional control spare rechargeable battery Indicator for sound...
  • Page 6: Connecting The Charger To The Mains

    Charging the A 200 with the rechargeable battery installed After use, place the A 200 into the charging compartment without exerting too much pressure, making sure the Sennheiser logo is at the front. When the A 200 is placed correctly, the indicator lights up green.
  • Page 7: Using The A 200 Personal Sound Amplifier

    Using the A 200 personal sound amplifier Charging the rechargeable battery in the charging compartment at the side of the charger Pull the rechargeable battery out of the A 200’s battery compartment. Insert the rechargeable battery into the charging compartment at the side of the charger.
  • Page 8: Switching The A 200 On/Off

    Using the A 200 personal sound amplifier Switching the A 200 on/off Turn the on/off/sound amplification control towards until you overcome a slight resistance. Adjusting the sound amplification You can choose between 6 different settings for the sound amplification 6. Position “1” corresponds to a low sound amplification and position “6”...
  • Page 9: Adjusting The Balance

    Cleaning and maintaining the product Adjusting the balance The balance control allows for right/left volume adjustment. Adjust the balance so that you hear equally well with both ears. If necessary, have the balance adjusted by your hearing aid acoustician. Using a 2 mm slotted screwdriver, turn the balance control the left or right in order to increase the volume for the corre-...
  • Page 10: Cleaning And Replacing The Ear Pads

    The product is supplied with two pairs of ear pads in different fits. You can change to these ear pads to optimize the wearing comfort, if neces- sary. Other spare ear pads are available from your Sennheiser partner. Carefully remove the ear pads from the A 200.
  • Page 11 Specifications NT 12-2T plug-in power supply unit (country-specific, EU or US) Nominal input voltage 100–240 V~ max. 50 mA  Input current @ 240 V/50 Hz, full load Mains frequency 50–60 Hz Nominal output voltage 12 V DC Nominal output current max.
  • Page 12: Manufacturer Declarations

    Manufacturer declarations Manufacturer declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. FOR AUSTRALIA ONLY Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law.
  • Page 13 Manufacturer declarations CE Declaration of Conformity • EMC Directive (2004/108/EC) • RoHS Directive (2011/65/EC) • Low Voltage Directive (2006/95/EC) • ErP Directive (2009/125/EG) The declaration is available at www.sennheiser.com. In compliance with: Europe Australia/ New Zealand Canada CAN ICES-3 (B)/NMB-3(B)
  • Page 14 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Publ. 12/15, 566667/A01...
