Summary of Contents for Sennheiser ADN PS

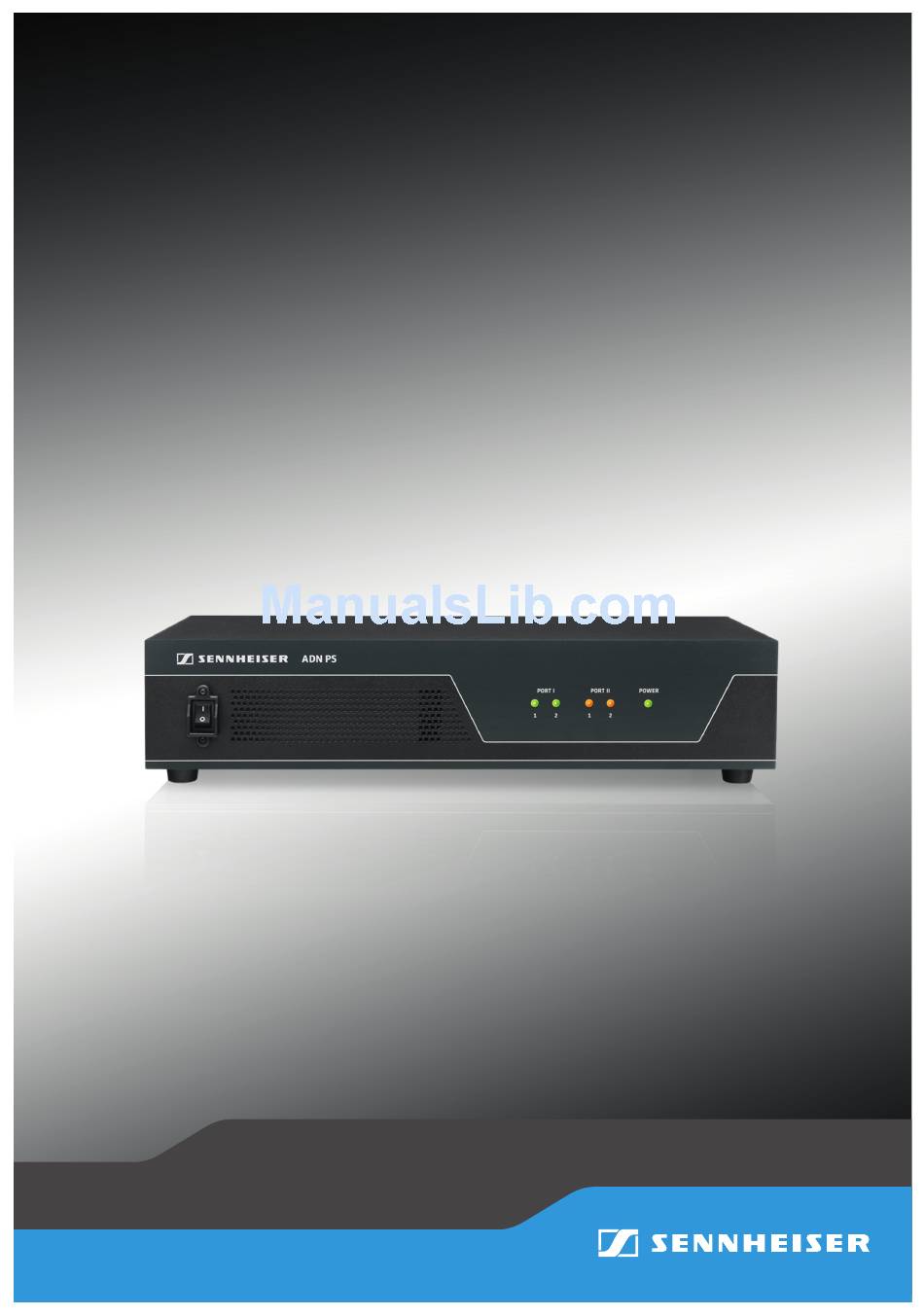

- Page 1 Audio Distribution Network ADN PS Quick guide...
-
Page 2: Table Of Contents
Product overview ADN PS power supply ..............4 Structuring and controlling the conference system ..........5 Preparing the ADN PS power supply for use ............8 Setting up the conference system ................9 Switching the ADN PS power supply on/off ............14 Cleaning and maintaining the conference system .......... -
Page 3: Information On This Quick Guide
For large conference systems with up to 400 conference units, you require ADN PS power supplies. A max. of 15 ADN PS power supplies can be used in a conference system. When the conference units are connected in simple strings, one ADN PS power supply can power up to 70 conference units. -
Page 4: Components Required For Operation
ADN CU1-UK central unit, 505554 UK version ADN CU1-US central unit, 505555 US version 1 –15 ADN PS-EU power supply, 505546 Supplies power to conference EU version units connected in simple (optional) strings or in redundant ring ADN PS-UK power supply,... -

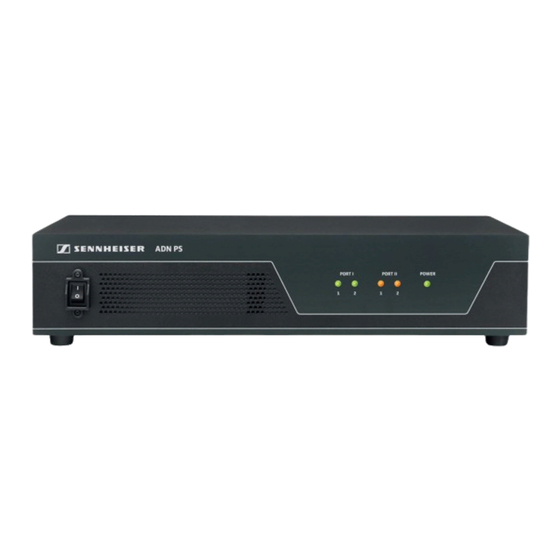

Page 5: Product Overview Adn Ps Power Supply
Product overview ADN PS power supply Product overview ADN PS power supply ADN PS PORT I PORT II DATA CU/PS 100 - 240V 50/60Hz 385W PORT I & PORT II: max. 5.25A sum A Front view B Rear view Rack mount “ears”... -
Page 6: Structuring And Controlling The Conference System
– 30-40 conference units connected in simple strings • large conference systems comprising an ADN CU1 central unit and a max. of 15 ADN PS power supplies – max. 400 conference units connected in simple strings or in ring topology per ADN PS power supply –... - Page 7 (i.e. up to 400), you require one ADN CU1 central unit for controlling the conference and additional ADN PS power supplies for powering the conference units. The conference units are interconnected in cable strings and up to four cable strings can be connected to each ADN PS power supply.
- Page 8 ADN CU1 central unit for controlling the conference and additional ADN PS power supplies for powering the conference units. The conference units are interconnected in rings and two rings can be connected to each ADN PS power supply. ADN CU1 ADN PS (max.
-
Page 9: Preparing The Adn Ps Power Supply For Use
Setting up the power supply CAUTION Danger of material damage and personal injury due to stacked power supplies! When stacking several ADN PS power supplies on top of each other, • the stack may topple over, • the temperature of the individual ADN PS power supplies may drastically increase, •... -
Page 10: Setting Up The Conference System
(see page 7). Place the ADN CU1 central unit and, if necessary, the ADN PS power supplies in the electrical equipment room. Place the conference units at the corresponding seats. - Page 11 For conference systems comprising more than 40 conference units or when the conference units are connected in a redundant ring topology, you require ADN PS power supplies. A max. of 15 ADN PS power supplies can be used in a conference system.
- Page 12 Please note that there is a limited number of approx. 15-20 conference units per cable string due to the voltage drop on the cable string (see page 5). One ADN PS power supply can power a total of 60-70 conference units if all connection sockets (PORT I...
- Page 13 2. Connecting conference units The following describes how to connect one cable ring to an ADN PS power supply. connected in a cable ring to the If necessary, repeat these steps for a second cable ring and additional ADN PS ADN PS power supply power supplies.
- Page 14 Setting up the conference system ADN PS ADN D1/ADN C1 PORT I PORT II DATA CU/PS 100 - 240V 50/60Hz 385W PORT I & PORT II: max. 5.25A sum µ ¸ 6 7 8 9 PORT I PORT II IN OUT...
-
Page 15: Switching The Adn Ps Power Supply On/Off
Set the on/off switch of the ADN CU1 central unit to position “0”. The central unit is switched off and the display panel goes off. All ADN PS power supplies connected to the central unit and switched on are switched off and the status LEDs go off. -
Page 16: Cleaning And Maintaining The Conference System
Only use a dry and soft cloth to clean the product. To ensure optimum cooling of the ADN CU1 central unit and the ADN PS power supplies: Clean the air vents on the front, back and bottom from time to time with a soft brush or paintbrush in order to avoid dust deposits. -
Page 17: Specifications Adn Ps
Specifications ADN PS Specifications ADN PS Dimensions 482.5 x 168 x 100 mm (B x H x D) Weight approx. 4.6 kg Nominal input voltage 100 to 240 V~ Mains frequency 50 to 60 Hz Power consumption 385 W Output voltage at RJ45... - Page 18 Publ. 09/11 543374/A01 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com...
