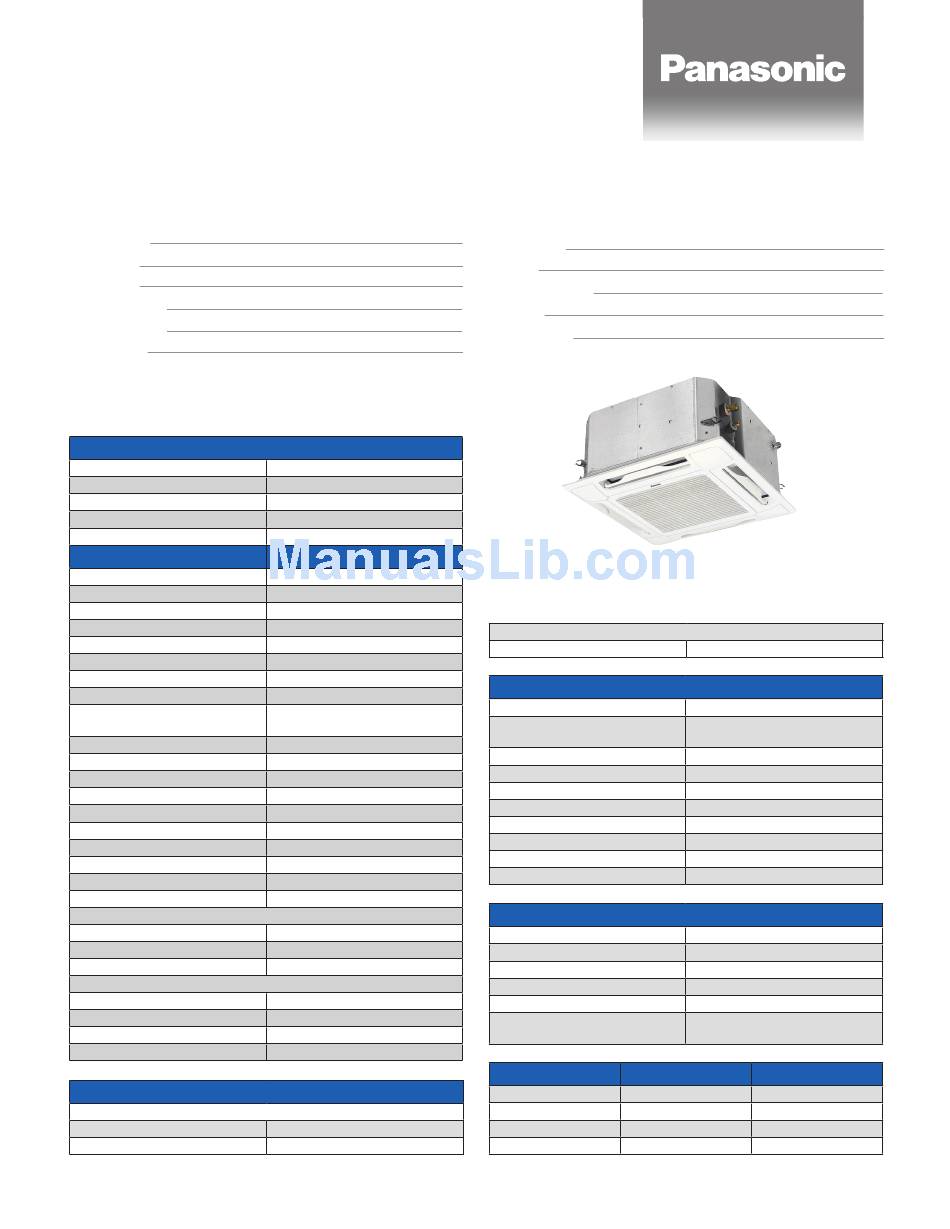

Split System Submittal Data
Indoor: CS-MKE9NB4U
Multi System Indoor Units - Ceiling Recessed
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
General Data
Power (V/P/Hz)
208 - 230/1/60
Circuit Ampacity (A)
N/A
Fuse Size, Max.(A)
15
Running Amps (A)
COOL .11 / .1
HEAT .13 / .12
Power Input (W)
COOL 15 / 16
HEAT 17 / 18
Indoor Unit
Cool/Heat
Fan type
Turbo
Dia & Length (in.) - No. Speeds
D12-5/8 L5-3/4 -1
No. Speeds
3 & Auto
No. Poles (RPM, High)
8 - 440/490
No. Motors (W)
1-(23)
CFM (HI)
221/247
Operation Sound (HI/Med/Lo)
33/32/31-34/33/32
Coil Type
Aluminum Plate Fin & Copper
Tube
Fin Type - Pipe Type
Aluminum - Copper
Rows - F.P.I.
2 - 18.1
Face Area (sq.ft.)
2.94
Tube Size (in)
N/A
Drain Connection Size
3/4
Refrigerant
R410A
Line Size (in. O.D. Discharge)
1/4” (Flare)
Line Size (in. O.D. Suction)
3/8” (Flare)
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
11-13/32 x 24-13/16 x 28-1/8
Indoor Unit (Uncrated) (in.)
12-5/16 x 24-19/32 x 24-19/32
Weight (lbs.)
Net
35.3
Shipping
41.9
Shipping Volume (cu.ft.)
4.59
Performance Data @ ARI Standard Conditions (230V)
Cooling
Total Capacity (BTU/H)
9000
Moisture Removal (HI, Pint/H)
3.4
Approval:
Date:
Construction:
Unit#:
Drawing#:
Heating
Total Capacity (BTU/H)
12,300
Features
Controls
Microprocessor
Remote Control
LCD Wirelss Built-in Temp
Sensor
Temperature Control
IC Thermostat
Timer
24 Hr. Program, 1 Hr. Off
Night Setback
Built-In
Air Louver
Automatic
Power Failure Automatic Restart
Built-In
Self-Diagnosis
Built-In
Quiet Operation
Built-In
Air Filter
Washable, Anti-Mold
Option
Refrigerant Line Set
Available
Fresh Air Intake
Knock-out
Airduct Extension
N/A
Condensate Drain Pump
Standard
Hard Wired Remote Controller
Available
Non-Removeable Remo-con
Available
Bracket
Operating Range
Indoor Air Intake Temp
Outdoor Air Intake Temp
Cooling (Max)
95F DB/71F WB
115F DB
Cooling (Min)
67F DB/57F WB
14F DB
Heating (Max)
80 F DB / 67 F WB
75 F DB / 65 F WB
Heating (Min)
- DB / - WB
