Split System Submittal Data
Indoor: CS-MKE7NKU
Multi System Indoor Units - Wall Mounted
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
General Data
Power (V/P/Hz)
Circuit Ampacity (A)
Fuse Size, Max.(A)
Running Amps (A)
Power Input (W)
Indoor Unit
Fan type
Dia & Length (in.) - No. Speeds
No. Speeds
No. Poles (RPM, High)
No. Motors (W)
CFM (HI)
Operation Sound (HI/Med/Lo/
QT*dB-A)
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Tube Size (in)
Drain Connection Size
Refrigerant
Line Size (in. O.D. Discharge)
Line Size (in. O.D. Discharge)
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
Indoor Unit (Uncrated) (in.)
Weight (lbs.)
Net
Shipping
Shipping Volume (cu.ft.)
Performance Data @ ARI Standard Conditions (230V)
Cooling
Total Capacity (BTU/H)
Moisture Removal (HI, Pint/H)
208 - 230/1/60
15
20
0.11
25
Cool/Heat
Cross Flow
D3-11/16 L24-31/32 -1
3 & Auto
8 - 1050/1100
1-(47)
241/271
33/30/27/23
Aluminum Plate Fin & Copper
Tube
Slit Plate - Inner Rifled
2 - 19.5
2.02
9/32
23/32
R410A
1/4" (Flare)
3/8" (Flare)
13-25/32 x 35-7/16 x 10-1/32
11-7/32 x 32-15/32 x 7-7/16
Indoor
19.8
24.3
2.82
7500
2.77
Approval:
Date:
Construction:
Unit#:
Drawing#:
Heating
Total Capacity (BTU/H)
Features
Controls
Remote Control
Temperature Control
Timer
Night Setback
Air Louver, Horizontal
Air Louver, Vertical
Power Failure Automatic Restart
Heating/Cooling Automatic
Changeover
Self-Diagnosis
Quiet Operation
Air Filter
Ion Generator
Air Clean Apatite Filer
Option
Refrigerant Line Set
Fresh Air Intake
Airduct Extension
Indoor Frame Extension
Condensate Drain Pump
Non-Removeable Remo-con
Bracket
Operating Range
Indoor Air Intake Temp
Cooling (Max)
95F DB/71F WB
Cooling (Min)
67F DB/57F WB
Heating (Max)
80F DB/67F WB
Heating (Min)
-DB/-WB
8500
Microprocessor
LCD Wireless Type, Built-in Temp
Sensor
IC Thermostat
24 Hr. Program, 1 Hr. Off
Built-In
Manual
Automatic
Built-In
Built-In
Built-In
Built-In
Washable, Anti-Mold
N/A
N/A
Available
N/A
N/A
N/A
Available
Available
Outdoor Air Intake Temp
115F DB
14F DB
75F DB/65F WB
0F DB

Advertisement

   Also See for Panasonic CS-MKE7NKU

   Summary of Contents for Panasonic CS-MKE7NKU

  • Page 1

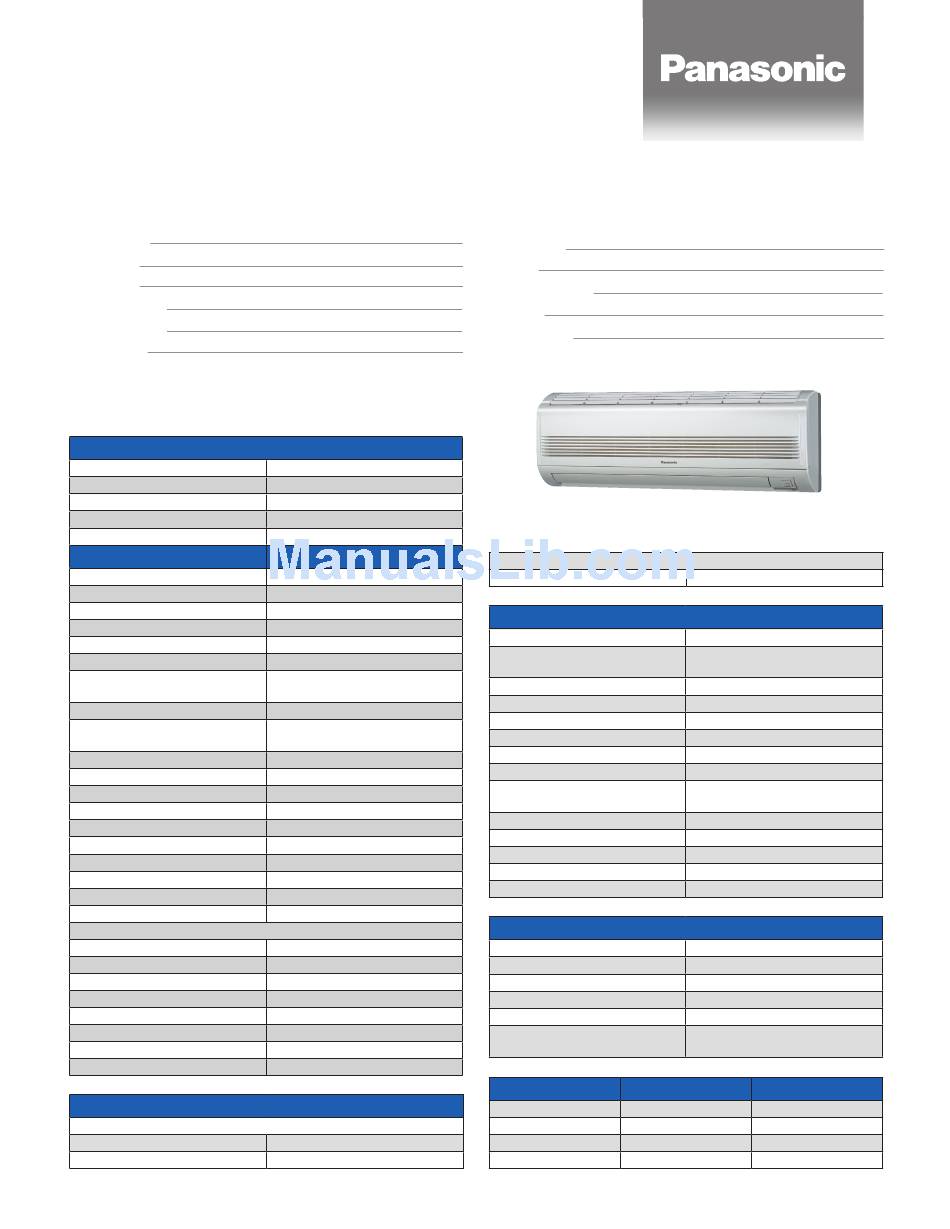

    Split System Submittal Data Indoor: CS-MKE7NKU Multi System Indoor Units - Wall Mounted Job Name: Approval: Location: Date: Engineer: Construction: Submitted to: Unit#: Submitted by: Drawing#: Reference: General Data Power (V/P/Hz) 208 - 230/1/60 Circuit Ampacity (A) Fuse Size, Max.(A) Running Amps (A) 0.11...
