Intellian i3 User Manual page 9

Installation Kit
Contains the items required for securing the antenna unit and ACU to the
vessel.
Antenna
Item
Hex.Bolt
Qty
5
ACU
Item
Self-Tapping Screw
Qty 5
Size (M4 X 16L)

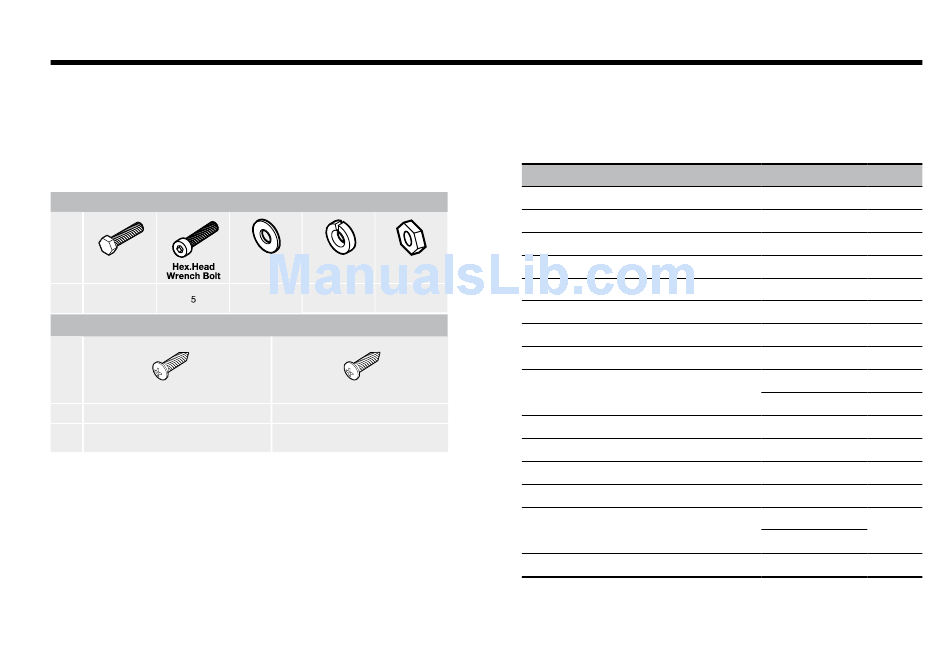

Figure 04 : Installation Bolt Kit
Flat Washer Spring Washer
Hex. Nut
5 5
5
Machine Screw
5
(M3 X 8L)
Other Components
No Components
1 ACU Table Mounting Bracket
2 RF Cable (ACU to IRD)
3 RF Cable (ACU to IRD)
4 DC Power Cable
5 PC Serial Cable
6 NMEA Connector
7 Power Connector
8 Hex Bolt
9 Tapping Screw
10 Flat Washer
11 Spring Washer
12 Installation CD
13 User Manual
14 Mounting Template
15 Quick Installation Guide
Figure 05 : List of the Supplied Parts
Size Qty
- 2EA
49ft (15m) 1EA
10ft (3m) 1EA
33ft (10m) 1EA
6ft (1.8m) 1EA
AK950-2 1EA
AK950-3 1EA
M8x35L 5EA
ø4x16L 5EA
ø3x8L 5EA
M8 5EA
M8 5EA
- 1EA
- 1EA
i3/i3L
1EA
i4/ i4P
- 1EA
9
