Intellian i3 User Manual page 8

Intellian Satellite TV Antenna Systems
Antenna Control Unit (ACU)
The Antenna Control Unit (ACU) provides the power to the antenna and
controls the various settings of the antenna. The digital VFD (Vacuum
Fluorescent Display) allows for easy operation of the ACU, even in the
dark.
The functions of the ACU are as follows:
• Controls the antenna system
• Provides power to the antenna unit
• Monitors the antenna status
• Changes the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Move antenna manually
• Perform self-diagnosis of the antenna
• Set up the interface with a PC
8
Front
Rear
FG - +
DC 9~30V FUSE

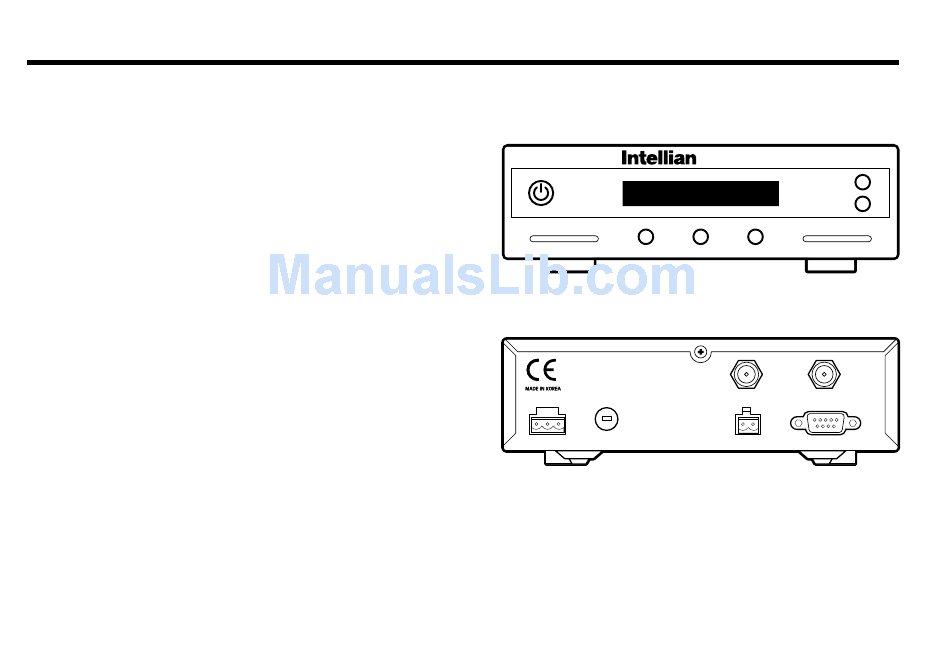

Figure 03 : Front & Rear of ACU
Antenna Control Unit
ANT RF1 RECEIVER
+ -
NMEA PC INTERFACE
