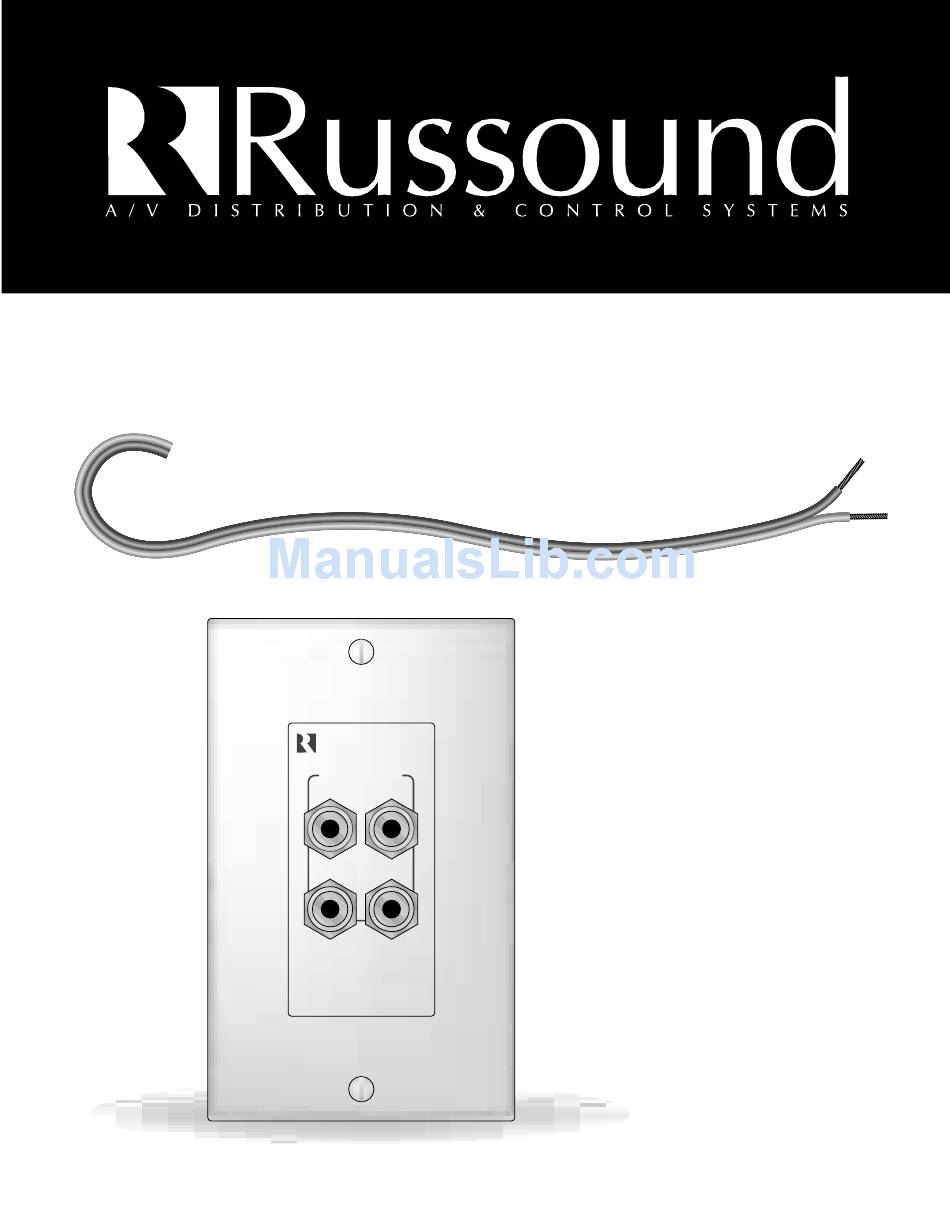

- Page 1 SRM-2.1 Instruction Manual Speaker SRM 2.1 AMPLIFIER INPUT Relay Module SPEAKER RELAY MODULE...
- Page 2 2) CP4.6 (fig 2): This connection requires the use of a 1/8” male phono plug. Wire the + terminal of the SRM-2.1 to the tip of the connector. Wire the - terminal of the SRM-2.1 the sleeve of the connector. On the rear of the CP4.6, plug the 1/8”...
- Page 3 3) Connect the positive and negative leads from each speaker ouput of the local source to the front of the SRM-2.1 wall plate. See fig 3. 4) Connect the speakers to the speaker connector on the back of the wall plate.
- Page 4 Limited Warranty The Russound SRM-2.1 is fully guaranteed for Two (2) years from the date of purchase against all defects in materials and workmanship. During this period Russound will replace any defective parts and correct any defect in workmanship without charge for either parts or labor. For this warranty to apply, the unit must be installed and used according to its written instruc- tions.
