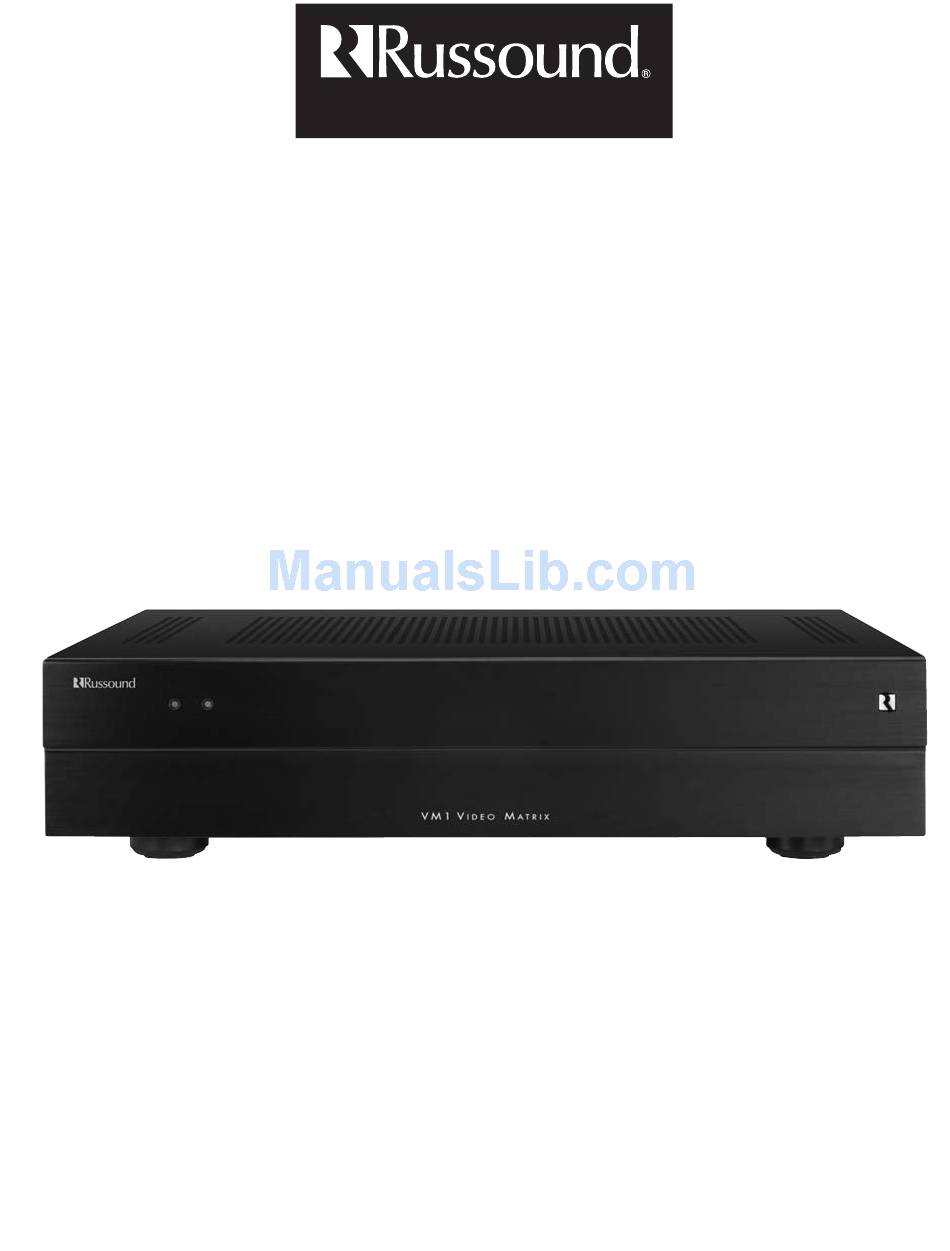

- Page 1 VM1 Video Matrix HD Component Video Distribution System Instruction Manual...
-
Page 2: Safety Precautions
It is not necessary to make any other changes. If you have any questions, call Russound at 603-659-5170. 15. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through the openings. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Product Overview....... . . 4 Control Methods ....... . . 5 Rear-Panel Features . -
Page 4: Introduction
Product Overview The 4x4 configurations provide four source inputs and four zone outputs. The 8x8 configurations provide The VM1 Video Matrix works with a multiroom audio eight source inputs and eight zone outputs. system to distribute analog component video over a Each source input has red, green, and blue RCA con- single CAT-5e cable to each zone. -
Page 5: Control Methods
The VM1 provides a choice of ports for receiving control data from the host system: two RJ-45 jacks RS-232 communication for linking to a Russound RNET multiroom system; a The DB9 serial port allows control of the Video Matrix DB9 serial connector; and a USB connector. -
Page 6: Installation
INSTALLATION Location Upconverter Configuration Locate the VM1 Video Matrix with the host system Models with upconverters are factory set to convert controller and source equipment to facilitate source composite video. Follow the procedure below to set and control connections. Locate the VMR1 Receivers... -
Page 7: Rack Mounting
INSTALLATION Rack Mounting 3. Connect Receiver cables to VM1. Crimp RJ-45 connectors on the system end of the CAT-5e cables, To rack mount the VM1, attach the supplied rack following the T568A standard as shown. Plug the ears to the chassis as shown. Leave one rack unit of connectors into the appropriate zone outputs on the space open above and below the VM1 to allow prop- VM1. -
Page 8: Typical Application Diagrams
INSTALLATION Typical Application Diagrams RGB cable DVD player* VM1 Video Matrix Audio to controller Power supply CAT-5e cables RJ-45 patch cable SMS3 Smart Media Server VMR1 Receivers Audio to Component video controller distribution amplifier* VGA-component video adapter* Video display* VGA IN CAM6.6T Multiroom Controller... - Page 9 INSTALLATION Connection for RS-232 control by a home automation system...
-
Page 10: Reference
REFERENCE Technical Specifications VM1 Video Matrix VM1 8 Component video connectors: 3 RCA per input (RGB) Component video inputs: 8 Zone output connectors: 8-pole modular RJ-45 Zone outputs: 8 System cable: CAT-5e Maximum cable length: 300 ft (90 m) VM1 8UC... -
Page 11: Warranty
Warranty The Russound VM1 Video Matrix is fully guaranteed against all defects in materials and workmanship for two (2) years from the date of purchase. During this period, Russound will replace any defective parts and correct any defect in workmanship without charge for either parts or labor. - Page 12 Tel 603.659.5170 • Fax 603.659.5388 www.russound.com Technical Support: tech@russound.com 28-1235 03/22/07 Copyright © 2007 Russound. All rights reserved. All trademarks are the property of their respective owners. Specifications are subject to change without notice. Russound is not responsible for typographical errors or omissions.
