SMART INSTEON Owner's Manual

Wireless insteon motion / occupancy sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

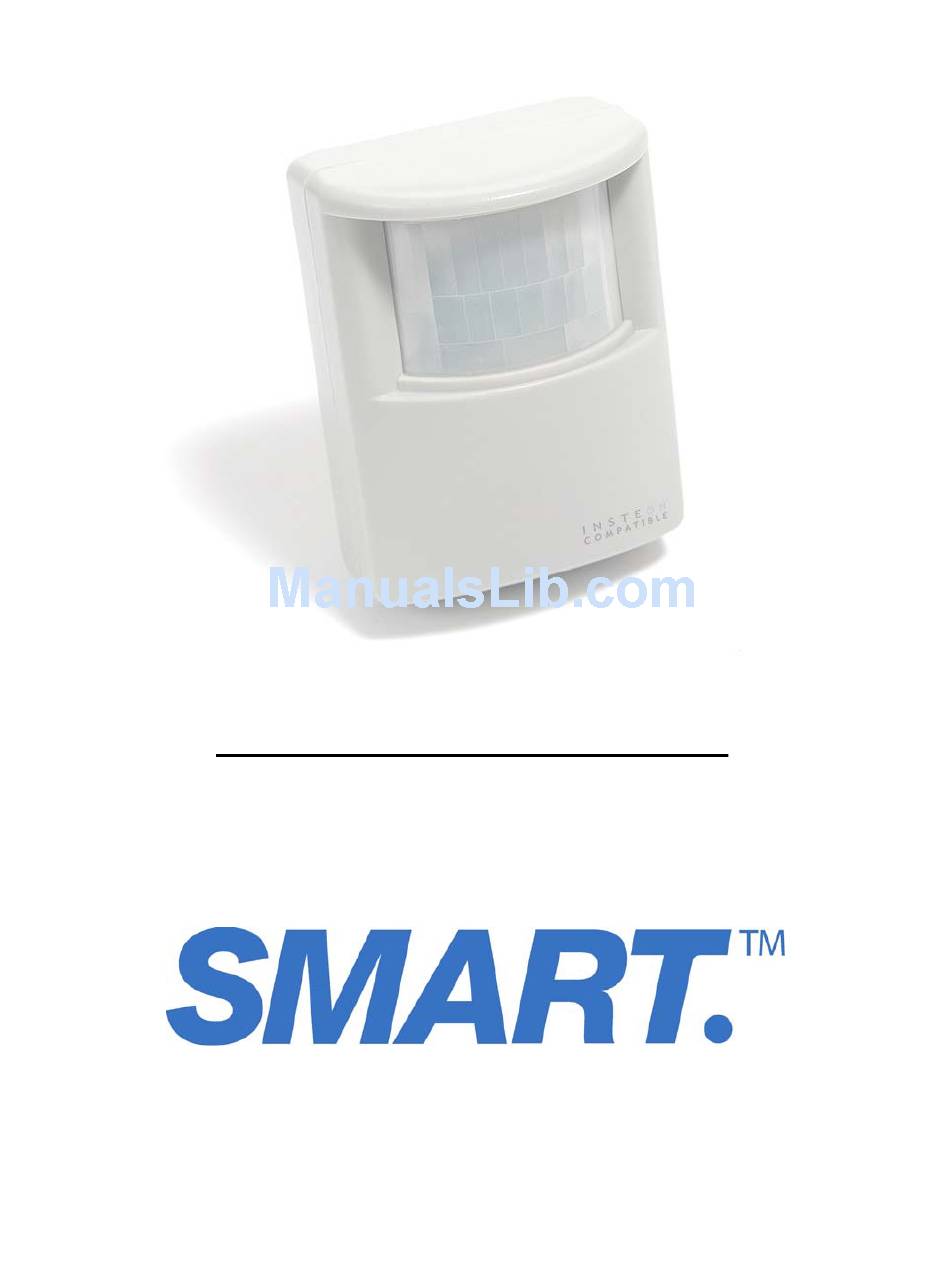

Motion Sensor
®
Wireless INSTEON
Motion / Occupancy Sensor
For model: 4716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSTEON and is the answer not in the manual?

Questions and answers

Related Manuals for SMART INSTEON

Summary of Contents for SMART INSTEON

  • Page 1 Motion Sensor ® Wireless INSTEON Motion / Occupancy Sensor For model: 4716...

  • Page 2: Table Of Contents

    HOW TO USE MOTION SENSOR ..........................5 How Motion Sensor Works ..................................5 HOW TO SET UP MOTION SENSOR TO REMOTELY CONTROL AN INSTEON DEVICE ......... 6 Linking Motion Sensor to Control an INSTEON Device......................6 Unlinking a Controlled INSTEON Device from Motion Sensor ....................6 HOW TO CREATE AN INSTEON SCENE........................

  • Page 3: About Motion Sensor

    INSTEON device works as a network repeater, ensuring your commands will not be lost. Affordable, because INSTEON can be integrated into any number of products easily and at a very low cost. An INSTEON home grows in value with every INSTEON device you add, making life more convenient, safe, and fun.

  • Page 4: What Is Included With Motion Sensor

    Motion Sensor Owner’s Manual What is Included with Motion Sensor • Motion Sensor • Mounting bracket • Two (2) 3x18 mounting screws • 9V battery • Quick-Start Guide HOW TO INSTALL MOTION SENSOR Choosing a Location for Motion Sensor When selecting a location for Motion Sensor, keep in mind the following: •...

  • Page 5: Installing Motion Sensor

    INSTEON has only been officially tested in a split single-phase residential environment, but has been known to work in many 3-phase systems, where three dual-band INSTEON products are used (one on each phase). However, due to the potential complexity of its troubleshooting, SMART Tech Support is unable to support INSTEON in 3-phase environments.

  • Page 6: How To Set Up Motion Sensor To Remotely Control An Insteon Device

    Unlinking a Controlled INSTEON Device from Motion Sensor If you are no longer going to use an INSTEON device that has previously been Linked to Motion Sensor, it is very important that you Unlink it. Otherwise, Motion Sensor will retry any commands intended for the unused INSTEON device, thus slowing down your system.

  • Page 7: How To Create An Insteon Scene

    Controller. INSTEON scenes are very easy to set up – just Link more than one INSTEON Responder to the same On/Off or Scene button on an INSTEON Controller. Then, when you press any of the Linked buttons on the Controller, all of the INSTEON devices Linked in the scene will respond as a group.

  • Page 8: Setting The Jumpers

    Jumper 5 – Remote (Software) Management 1) If you wish to manage the Motion Sensor settings via INSTEON software, install Jumper 5 on both pins 2) Press & hold the Set button on Motion Sensor to enter Linking Mode and allow the software to access the...

  • Page 9: Adjusting The Modes

    Restoring Power to Motion Sensor Motion Sensor stores all of its settings, such as Links to other INSTEON devices, On-Levels/Ramp Rates, etc., with non- volatile memory. Because settings are saved in this non-volatile memory, they will not be lost in the event of a power failure.

  • Page 10: About Insteon

    RF or power line-only devices While using at least one dual-band INSTEON product is required when using an RF-only device, at least two dual- band INSTEON products are recommended to ensure reliable communication across two-phase home wiring systems.

  • Page 11: Troubleshooting

    Motion Sensor Owner’s Manual TROUBLESHOOTING Problem Possible Cause Solution Move a dual-band INSTEON device closer to Motion Motion Sensor won’t Sensor. Motion Sensor may be out Link to INSTEON of range of the Responder. Install additional dual-band INSTEON devices to Responders.

  • Page 12: Certification And Warranty

    Motion Sensor Owner’s Manual CERTIFICATION AND WARRANTY Certification Motion Sensor has been thoroughly tested by ITS ETL SEMKO, a nationally recognized independent third-party testing laboratory. The North American ETL Listed mark signifies that the product has been tested to and has met the requirements of a widely recognized consensus of U.S and Canadian product safety standards, that the manufacturing site has been audited, and that the manufacturer has agreed to a program of quarterly factory follow-up inspections to verify continued conformance.

  • Page 13: Limited Warranty

    Seller’s liability with respect to this product. For repair or replacement during the warranty period, call SMART customer service to receive an RA# (return authorization number), properly package the product (with the RA# clearly printed on the outside of the package) and send...
