Ikegami ICD-608VR Speficifications

High Performance, Vandal Resistant
Features

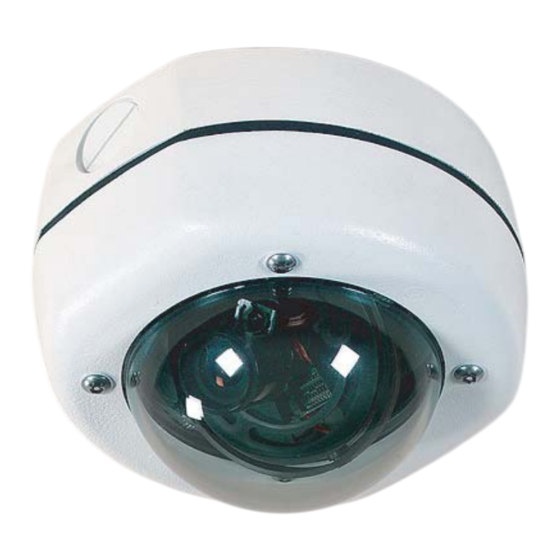

Ikegami ICD-608VR vandal resistant color dome camera
provides the ultimate solution for most any security applica-
tion. Featuring a full-featured camera/lens combination in a
cast aluminum housing (with the strength of 10 gauge steel)
and polycarbonate dome, this unit can withstand the equiva-
lent of 120 lbs of force and are sealed for outdoor use.
The ICD-608VR offers a 1/3" high resolution color camera
with integrated 4-9mm auto-iris varifocal lenses. And accept
24VAC and 12VDC voltages.
ICD-608VR
locking, phase and iris level adjustment capabilities. BLC
(Backlight compensation) can also be adjusted. AGC on/off
selectable and there is a Service Monitor Output (RCA plug).
In addition to the above features, the ICD-608VR come ready
to use. They are configured for use with a single gang elec-
trical box and can be wired through either the side or back of
the housing via a standard 3/4-inch conduit opening.
Color Dome Camera
If AC is employed, the user can take advantage of its line-
