INSTRUCTION MANUAL

Color Camera

MODEL
ICD-525
ICD-525-TDN
OUTDOOR USE WARNING
WARNING – TO PREVENT FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
The apparatus shall not be exposed to
dripping or splashing and that no
objects filled with liquids, such as
vases, shall be placed on the
apparatus.
Ikegami Tsushinki Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICD-525 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ikegami ICD-525

Summary of Contents for Ikegami ICD-525

  • Page 1: Instruction Manual

    ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Ikegami Tsushinki Co., Ltd.

  • Page 2: Table Of Contents

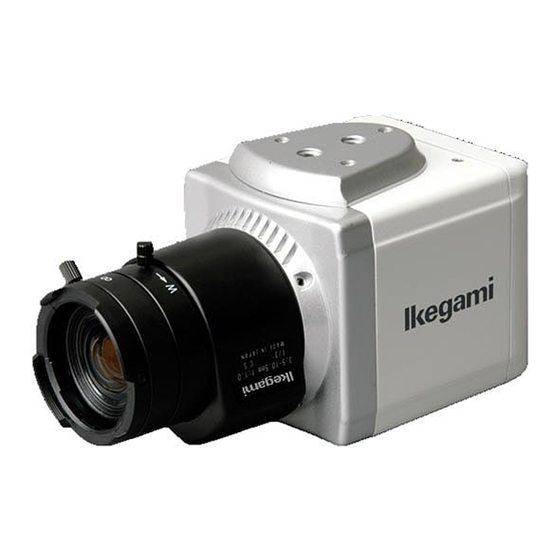

    Thank you for choosing this Ikegami ICD-525 Camera. Please read this Instruction Manual carefully to keep your Ikegami camera at peak performance for longer service period. This unit is a box -type 1 CCD (1/3” ) color camera which has also switchable monochrome mode from color mode for low light condition (as night).
  • Page 3 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a dry cloth. 7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 5 14) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

  • Page 6: Caution For Usage Of Camera

    1. Caution for Usage of Camera Do not expose the camera/internal mechanism in the water/rain splashed and/or moisture environment. Do not use the camera where the ambient temperature under -10 Celsius or over 50 Celsius. The image and component parts of camera may be adversely affected and/or the camera may not function correctly.

  • Page 7: General

    This CCTV camera features wide dynamic range, high sensitivity and high resolution, and is equipped with Auto iris control function (can be selected suited auto iris lens) and other functions. The ICD-525 is best suited for general surveillance. 3. Future (1) High-quality picture and high resolution The high resolution of a horizontal resolution of 700 TV lines is assured.
  • Page 8 (6) Automatic iris control This function is available control voltage for DC type auto iris lens. Almost all types of DC control auto iris CCTV lenses can be used. (7) Lens fl ange back focus adjustment An easy adjustment can be done by a rotating lens mount mechanism, this may be useful to fi...

  • Page 9: Name And Function Of Each Part

    4. Name and Function of Each Part...
  • Page 10 Lens Mount (CS Mount) Lens fi xing Mount for various CS Mount lens (C-mount adaptor can be attached). Fixing screw for Lens fl ange back focus adjustment Loose the screw before fl ange back focus adjustment, and tight after this adjustment. Flange back focus adjustment mechanism If it is unfocused picture even after adjust the focus ring of lens, fl...

  • Page 11: Connection

    5. Connection 5-1. Power cable (AC24V IN/DC12V IN) AC24V (±10%), DC12V Connector (10.5V to 15V): Connect to DC power supply. 5-2. VIDEO OUT cable (VIDEO OUT) The VIDEO OUT connector is output only camera Video signal for monitor, switcher and etc. Connect to video in connector for monitor, switcher and etc with BNC coaxial cable.

  • Page 12: Operation

    6. Operation 6-1. User Setup The ICD-525 camera is provided with user setup function for picture quality, and camera ID. The setup menu is a tree type on-screen-display. When installing the camera it is possible to set up the various functions.
  • Page 13 6-3-1. SET UP MENU 1/3 (LANGUAGE selected “ ENGLISH”) EXIT : Quit the Menu and save the changed value/set data on Menu. RESET : Default the all data (back to factory setup condition). 1. PAGE Used to change the page of Setup menu. 2.
  • Page 14 2. AGC AUTO GAIN CONTROL : Select/set the gain level between OFF, LOW, MIDLOW, MIDDLE, MIDHIGH, HIGH. High level AGC gain can display brighter picture, although noise can more readily increase. 3. SENS-UP : Automatically up the brightness of picture where dark place like night condition by electric charge accumulation.
  • Page 15 -WDR effect WDR ON WDR OFF 1. “WDR” is functioned with “SHUTTER” mode set (----). 2. “WDR” function is infl uenced the size of high light area. The camera installing place and angle shall considered this point. 3. Color rolling phenomenon is colored picture around the fl uorescent lamp randomly appeared.
  • Page 16 1. RED : Adjust the reddish color. 2. BLUE : Adjust the bluish color. The ATW mode may not work correctly under following lighting conditions. In this case, select AWC and adjust the white balance. The lighting condition (color temperature) is out of control span of ATW (e.g.
  • Page 17 6-3-2. SET UP MENU 2/3 (LANGUAGE selected “ ENGLISH”) 1. PAGE Change the page of Setup menu. 2. IMAGE SETUP 1. FREEZE OFF : Inactivated freeze function. ON : The picture is frozen. 2. MIRROR OFF : Output normal picture. V-FLIP : Inverse Up/Down side of picture.
  • Page 18 6. COLOR GAIN: Adjust/set the color level of picture. OFF: (No gain up the color level)/LOW/ MIDDLE/ HIGH 7. GAMMA: Adjust/set the Gamma correction value of picture between 0.38 / 0.42 / 0.45 / 0.50 / 0.55 / 0.63 / 0.71 / 0.83 / 1.0. Note : The lower value for GAMMA above, realize to display more brighter for dark section of picture, but it cause noise level up bit and reduce the graduation for bright section of picture.
  • Page 19 1. DETECT SENSE : Adjust the detect sensitivity for moving subject. Higher value setting, more sensitivity of detection (value 0 to 127). 2. BLOCK DISP : Display the block screen for detected Area of picture. OFF : Inactivate BLOCK DISP function.
  • Page 20 4. COLOR : Select/set the coloring for privacy masking area. The color can be selected between 8 colors WHITE, BLACK,RED, GREEN, BLUE, YELLOW, CYAN, MAGENTA. 5. MASK TONE : Select/set the translucent ratio of privacy mask. 0.00 (clear: no displayed masking area except ON set of MOSAIC), 0.50, 0.75, 1.00 (opaque for behind picture).
  • Page 21 6-3-3. SETUP MENU 3/3 (LANGUAGE selected “ ENGLISH”) 1. PAGE Change the page of Setup menu. 2. MONITOR The optimum picture quality can be selected according to the monitor used. LCD : Set. when the camera video signal is connected LCD monitor. CRT : Set when the camera video signal is connected with CRT (cathode ray tube)monitor.
  • Page 22 5. VIDEO ADJ Set the each level of video signal. 1. SYNC : Adjust the Sync signal level (value 0 to 40). 2. BURST : Adjust the Burst signal level (value 0 to 30). 3. CLIP : Adjust the Video signal level (value 0 to 40).

  • Page 23: Focus Ez Function

    7. Focus EZ function 7-1. Screen Displays FOCUS EZ is a function to support focus adjustment. A focus indicator displayed on the screen can be used to confi rm the focus conditions. In case of auto-iris, it is possible to open the lens aperture forcibly for a set time period to carry out focus adjustment without worrying about fi...

  • Page 24: Warranty And After Sale Service

    A warranty accompanies this product. Read and fi ll out the warranty card that you have received at your dealer. Keep this card in a safe place. Please consult Ikegami Electronics (U.S.A.) Inc. or Ikegami Electronics (Europe) GmbH or your dealer for full warranty information. Your dealer will repair or replace free of charge within the warranty period according to the warranty coverage.

  • Page 25: Specifi Cations

    (8) Minimum illumination: 0.22Lx/F1.2 (SENS-UP: OFF, VBS output: 50%) 0.007Lx/F1.2 (SENS-UP: x32, VBS output: 50%) (9) Day/Night switching: ICD-525 : Digital Day/Night ICD-525-TDN : True Day/Night (10) Wide Dynamic Range: LOW/MIDLOW/MIDDLE/MIDHIGH/HIGH Selectable from 6 steps above. (11) AGC: OFF/LOW/MIDLOW/MIDDLE/MIDHIGH/ HIGH Selectable from 6 steps...
  • Page 26 (28) Power Requirement: AC24V±10%, 60Hz / DC12(10.5 to 15V) (29) Current Consumption: AC24V: 3W DC12V: 3W (30) Operating Temperature and Relative Temperature: -10 / 30 90%RH (No Condensation) (31) Camera Mount: 1/4”-20UNC (this mount part is changeable to fi x on Top or Bottom side of camera. (32) Outer dimensions: 60mm (W) ×...

  • Page 27: External Appearance

    10. External Appearance...

  • Page 28: Setup Flow Chart

    11. Setup Flow Chart...
  • Page 32 37 Brook Avenue, Maywood, N.J. 07607, U.S.A. Phone: (201) 368-9171, FAX (201) 569-1626 www.Ikegami.com ■ Ikegami Electronics (Europe) GmbH Ikegami Strasse 1, D-41460 Neuss, Germany Phone : 02131-123-0, FAX 02131-102820 www.Ikegami.de ■ Ikegami Electronics U.K. Offi ce: Unit E1, Cologne Court, Brooklands Close, Windmill Road, Sunbury-on-Thames, Middlesex, TW16 7EB, U.K.
