Ikegami ICD-620 Producr Features And Specification

High Resolution Wide Dynamic Range Dome Camera
High Resolution High Sensitivity
700TVL 0.0007 lx / 1.2(Type31)

FEATURES

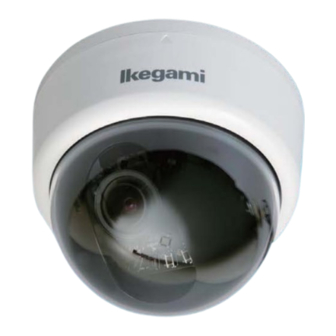

High Resolution Wide Dynamic Range Dome camera in an attractive and functional dome housing.
Ikegami, the world leader in high quality broadcast and professional video production equipment, is proud to
announce the ICD-620/P High Resolution Wide Dynamic Range line of dome cameras. The ICD-620/P
operates at an impressive 700TVL and features Wide Dynamic Range functionality. The result is higher
sensitivity in lower light levels (when the camera will automatically switch to a Monochrome output for
improved low light performance). The built-in varifocal lens (available in two sizes) makes the ICD-620/P an
excellent solution for a wide range of applications.

0.0007 lx, 700TVL High Resolution Pictures

The ICD-620/P achieves a horizontal resolution of 700 TVL with
480,000 NTSC /570,000 PAL pixels, enabling reproduction of
exceptionally clear and detailed images in ultra-low light
conditions. The ICD-620/P performs at levels as low as 0.0007
lx /F1.2(Type 31) or 0.0017 lx /F1.5(Type 92) minimum scene
illumination performance (in monochrome mode)!

52dB, High Picture Quality and Low Smear and Noise

The improved DSP circuit permits 52dB Signal-to-Noise ratio
and Low Smear(-105dB). By the factor, a clear image can be
captured even under strong light.

Auto White Balance

The ICD-620/P features automatic tracking white balance
control (ATW) and automatic white balance control (AWC).
T h e r e s u l t i s b e t t e r c o l o r t r a c k i n g i n d i f f i c u l t l i g h t i n g
conditions (such as sodium light).

Engineered Dome Camera

The low-profile ICD-620/P is designed to complement the
surrounding architecture with its' smooth lines and soft curves.
Black color model is also available.

Built-in Varifocal with DC Drive Iris Control

The ICD-620/P is equipped from the factory with a choice of 2.8-10mm
or 9-22mm varifocal lens to cover a full range of installations.
High Image Quality Varifocal Lens
52dB 2.8~10mm/9~22mm

Wide Dynamic Range (WDR)

The WDR function provides clear and high quality pictures in
high contrast environments by adjusting exposure- resulting in
a corrected image with clear details results. The wide dynamic
range is 5 levels selectable.

Focus EZ Function

A button located at the back of the ICD-620/P sets the
auto-iris lens aperture open, even in broad daylight. This
allows the installer to set an accurate focus with the best
depth of field. The EZ focus button displays an adjustment
bar that makes it easy to achieve perfect focus.
Conventional Model
Conventional Model
ICD-620/P
ICD-620/P
