The M2 Line Balanced is equipped with custom designed and

manufactured output transformers, which utilize an improved output

and grounding scheme to provide the best possible connection to the

power amplifier.

Below is a description of the various cable and connection options: -

RCA

OUTPUT

SOCKET

BALANCED /

SINGLE ENDED

SWITCH

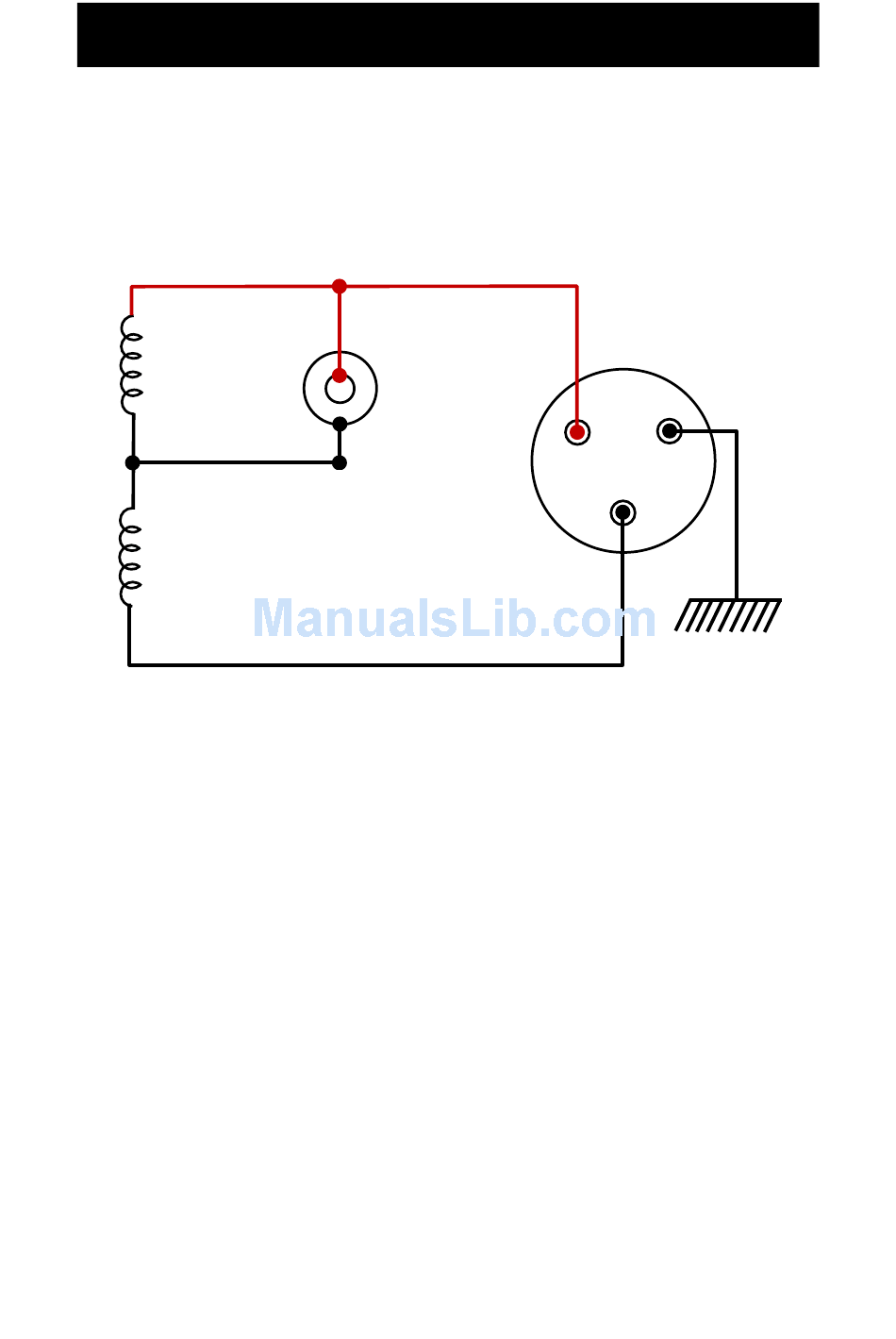

The pin configuration for all Audio Note (UK)

XLR / BALANCED connections is as follows: -

PIN 1

PIN 2

PIN 3

CONNECTION continued...

Ground / Shield

Positive / Send

Negative / Return

XLR MALE

OUTPUT
