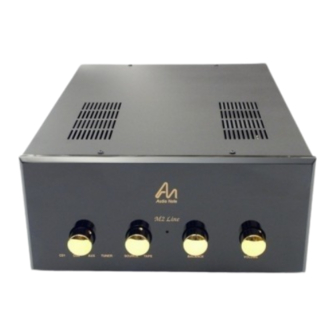

Audio Note M2 Line Owner's Information
Pre amplifier
Hide thumbs
Also See for M2 Line:
- Owner's information (6 pages) ,
- Owner's information (7 pages) ,
- Owner's information (13 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Audio Note M2 Line
Summary of Contents for Audio Note M2 Line

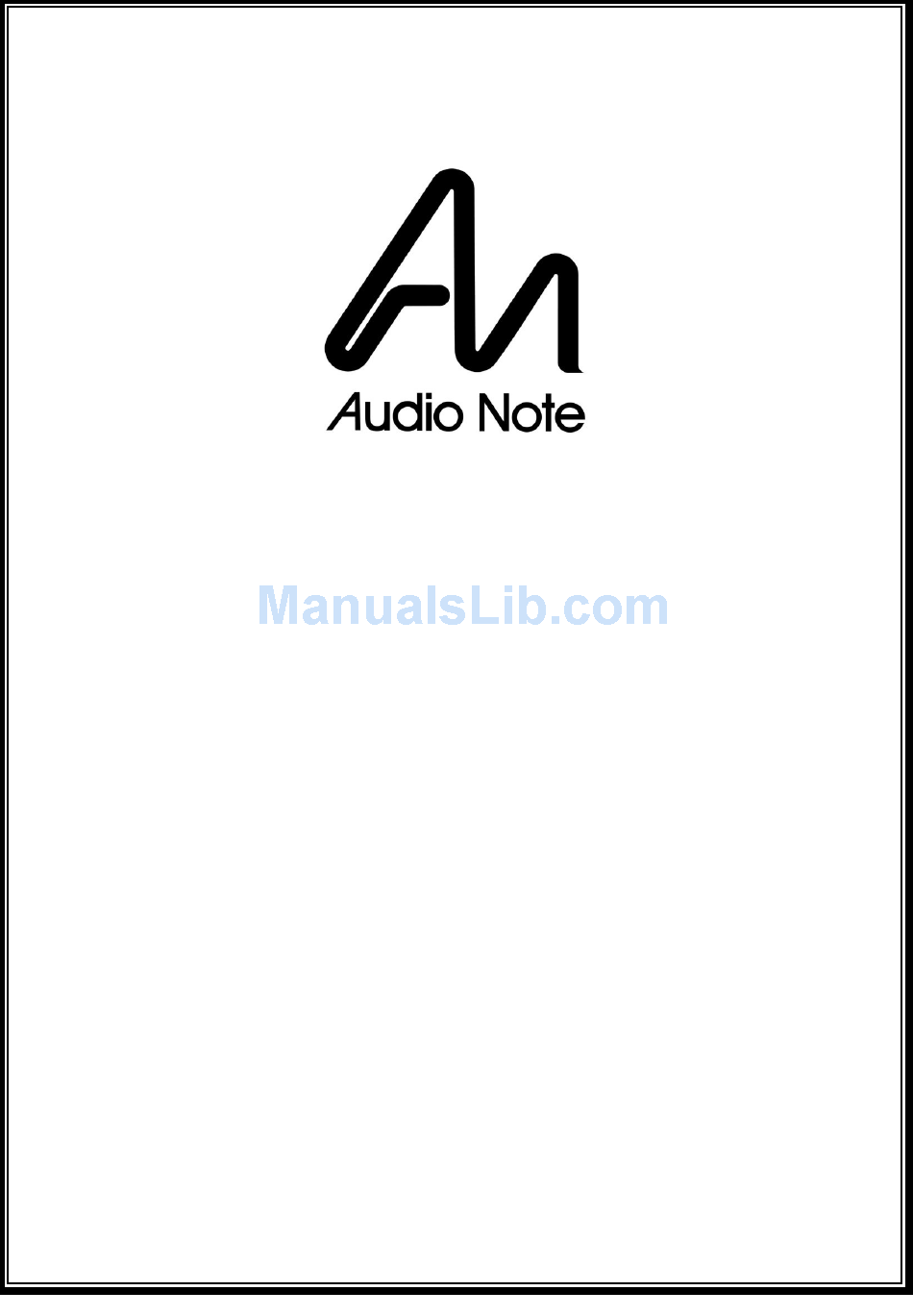

- Page 1 M2 Line PRE AMPLIFIER OWNERʼS INFORMATION...
- Page 2 CONTENTS 1) IMPORTANT SAFETY INFORMATION 2) CE DECLARATION OF CONFORMITY DISPOSAL POWER REQUIREMENTS 3) INTRODUCTION 4) OVERVIEW 5) UNPACKING AND INSTALLATION 6) CONNECTION 7) OPERATION 9) TECHNICAL SPECIFICATIONS 10) WARRANTY INFORMATION 11) CONTACT INFORMATION...
-
Page 3: Important Safety Information
! IMPORTANT SAFETY INFORMATION ! RISK OF SHOCK OR ELECTROCUTION! INTERNAL OPERATING VOLTAGES ARE LETHAL! Do not remove top cover, unless specifically instructed to do so in the user manual. This unit contains fuses and other safety components in accordance with BS60065 requirements. -
Page 4: Ce Declaration Of Conformity
BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1 January 1997) CE 94 Peter Qvortrup, Director Audio Note (UK) Limited 25 Montefiore Road Hove East Sussex BN3 1RD United Kingdom... - Page 5 INTRODUCTION Thank you for purchasing this Audio Note (UK) product. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system, to ensure both your safety and satisfaction.
- Page 6 As a result, the M2 Line was designed for maximum linearity and minimum transient distortion, and avoids the need for detrimental ʻcorrectiveʼ measures, such as inherently error-prone feedback loops. The M2 Line Pre Amplifier features a 6SN7 line stage and a valve rectified power supply incorporating a 6X5 and an ECL82.
-
Page 7: Unpacking And Installation
UNPACKING AND INSTALLATION Please take care when unpacking your M2 Line Pre Amplifier. Choose a clean, clear location to unpack your unit. Be aware that the Pre Amplifier is quite heavy; before attempting to unpack or lift the unit, check the weight and if necessary use more than one person so that it can be moved safely and easily. - Page 8 ʻline levelʼ source can be connected to these inputs. Connect the ʻRec-Outʼ or ʻLine Outʼ sockets on your recording device to the ʻTape Inʼ sockets of the M2 Line, and the ʻTape Outʼ sockets to the ʻRec-Inʼ or ʻLine Inʼ sockets of your recording device.
-
Page 9: Operation
Turn on the M2 Line Pre Amplifier by using the rocker switch located on the rear panel, above the mains inlet IEC socket. The M2 Line Pre Amplifier requires approximately 45 seconds to initialize before it is ready for operation. - Page 10 Do not use any alcohol or solvent based cleaning products, as they may damage the finish of the amplifier. ENSURE THAT THE M2 LINE IS SWITCHED OFF AND DISCONNECTED FROM...
- Page 11 UNIT DIMENSIONS 140mm (h) x 295mm (w) x 450mm (d) SHIPPING DIMENSIONS (ORIGINAL PACKAGING) 240mm (h) x 400mm (w) x 550mm (d) Due to Audio Note (UK)ʼs ongoing research and development program, specifications are subject NOTE to change without notice.
-
Page 12: Warranty Information
Audio Note (UK) warrants this product to be free from defects in materials and workmanship for two years from the original date of purchase from an appointed Audio Note (UK) dealer, and agrees to cover the cost of parts and associated labour required to correct such defects, subject to terms & conditions. -
Page 13: Contact Information
CONTACT INFORMATION If in the future your Audio Note (UK) product requires servicing, or if you require technical support or have any questions regarding this or any of our other products, please contact your local Audio Note (UK) dealer. Alternatively, please feel free to contact us directly: -...
