Audio Note M2 Phono Balanced Owner's Information

Level 2 pre-amplifier
Hide thumbs Also See for M2 Phono Balanced:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Information

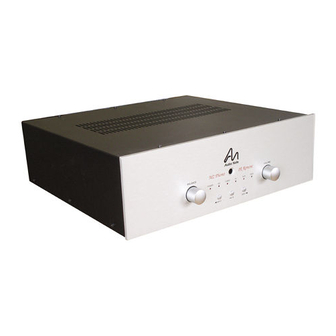

M2 Phono Balanced
Level 2 pre-amplifier
Owner's Information
Music's Finest Conductor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2 Phono Balanced and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Note M2 Phono Balanced

Summary of Contents for Audio Note M2 Phono Balanced

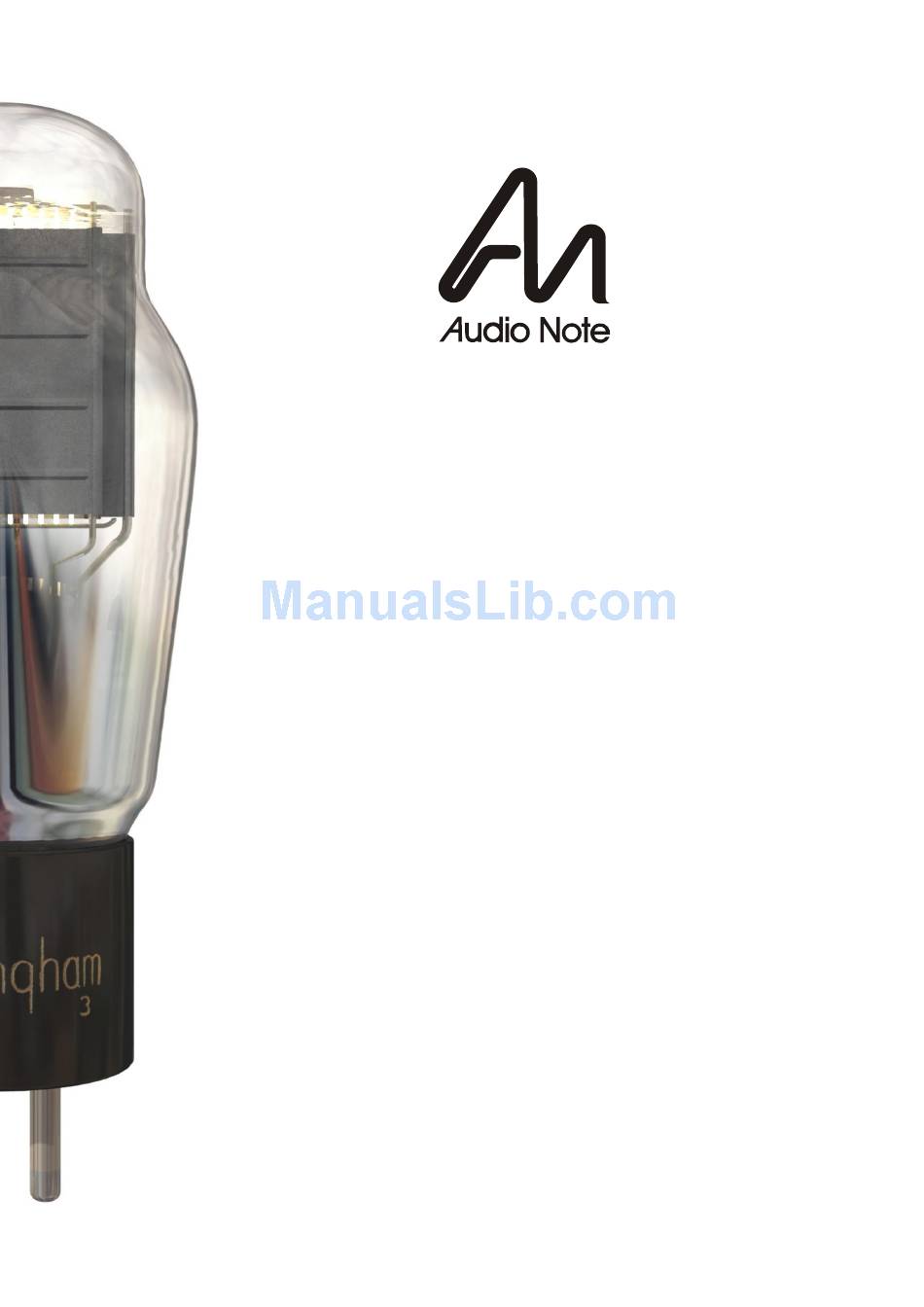

  • Page 1 M2 Phono Balanced Level 2 pre-amplifier Owner's Information Music's Finest Conductor...
  • Page 2 Congratulations on your purchase of the Audio Note M2 Phono Balanced level 2 pre-amplifier. Audio Note Level System First, a word about how we classify our products at Audio Note. The world renowned Audio Note Ongaku, Kegon and Gaku-on amplifiers incorporate six technological design features which give them unmatched sonic performance and clarity, placing them amongst the best amplifiers in the world.

  • Page 3: Unpacking And Installation

    Unpacking and installation Please ensure care is taken when unpacking the pre-amplifier. We recommend that you store the packing materials in case the unit requires shipping at a later date. Also, check that no transit damage has occurred before installing the pre-amplifier. Select a suitable location for the unit, ensuring that adequate ventilation is provided as the pre-amplifier generates considerable heat during normal operation.

  • Page 4: Line Input

    The phono input is suitable for connection to a turntable with a moving magnet (MM) cartridge installed. Audio Note is able to provide a range of step-up transformers for use with moving coil (MC) cartridges. These transformers are able to provide the best possible match for the M2 Phono Balanced. The phono input consists of a pair of RCA connectors.

  • Page 5: Mains Power Connection

    white for left channel. NOTE: The balanced/unbalanced selection switch must be set to the appropriate position. It is not recommended to use both the balanced and unbalanced outputs simultaneously. Mains power connection Use the supplied cable to connect the IEC inlet socket on the pre-amplifier to the mains supply. Ensure the power is switched off when you do this.

  • Page 6: Warranty And Servicing

    Audio Note dealer, who will be able to supply the correct parts. Warranty and servicing Audio Note warrants that this product will be free from defects in materials and workmanship for one year from the original date of purchase from an appointed Audio Note dealer. The vacuum tubes are warranted for three months.

  • Page 7: Technical Overview

    RIAA network between them are used for each channel. Paper in oil and Black Gate capacitors with Audio Note pure silver interconnect provide very pure signal transfer. The line level stage is driven via high quality Noble volume and balance controls. The amplification stage uses a 6SN7 anode follower.

  • Page 8: Specifications

    < 0.4 Phono, unweighted, feedback off (mVrms) Output Impedance Feedback off (kOhms) Feedback on (kOhms) Tube Compliment 6SN7 ECL82 ECC83 ECC88 NOTE: Due to Audio Note's ongoing research and development programme, specifications are subject to change without notice. - 8 -...

  • Page 9: Safety Information

    Safety Information HEAT: By the nature of vacuum tubes, this product generates high levels of heat. Adequate ventilation must be provided. Do not restrict the airflow through any of the ventilation slots or place the amplifier on any surface that may restrict airflow. CAUTION: The vacuum tubes and other nearby parts operate at extremely high temperatures - KEEP OUT OF REACH OF CHILDREN.
