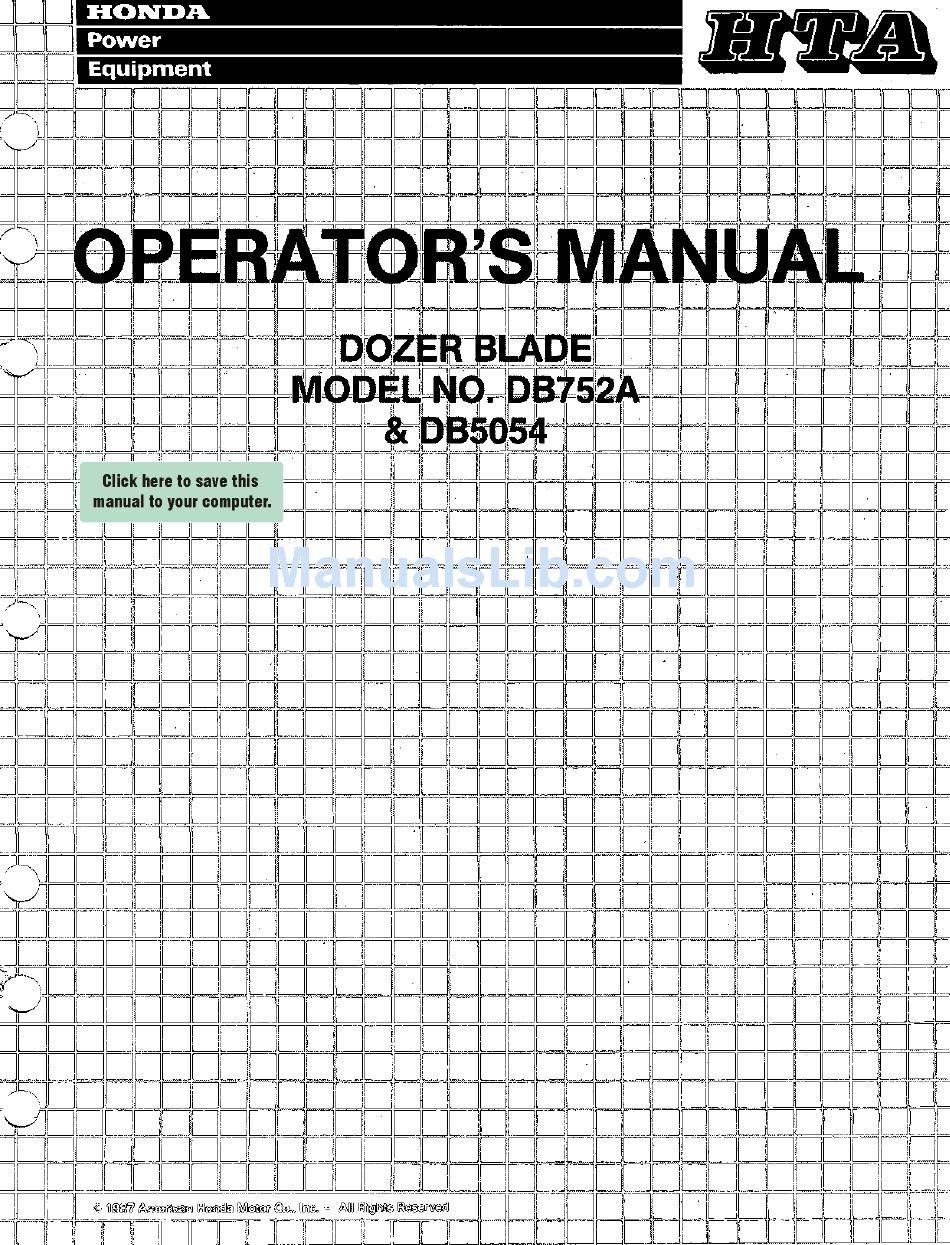

- Page 2 Thank you for purchasing an HTA attachment for your Honda Tractor. This manual covers the assembly, operation, and maintenance of the HTA Model DB752A & DB5054 Dozer Blade. For your convenience, a parts list is a lso included in this publication.
-
Page 3: Table Of Contents
CONTENTS General Safety ................Safe Operating Rules Safety Label Location Assembly and Installation... -
Page 4: General Safety
GENERAL SAFETY recommendations and operating procedures before using the attachment. Follow the insturctions in this publication at all times, and fnsist that those who work with you do likewise. so could result in personal injury or equipment damage. SAFE OPERATING RULES To avoid injury, keep bystanders, children and pets away from the area of operation. -
Page 5: Assemblyand Installation
ASSEMBLYAND INSTALLATION For your safety, this attach- ment should be assembled and installed by a mechanically proficient person who has the proper tools, perferaby an authorized Honda Tractor dealer. FRONT BLADE ASSEMBLY 1. Insert the female quick hitch into the hitch box, and align the pivot and adjustment pin holes. -
Page 6: Attaching The Blade To The Tractor
ASSEMBLY AND INSTALLATION (Continued) 4. Carefully drive a 3/16" roll pin into the hole in the adjustment pin. The roll pin should extend an equal distance from both sides of the adjustment pin. 5. Pivot the female quick-hitch to obtain the desired blade angle, align the adjustment pin holes and then insert the adjustment pin. -
Page 7: Operating Procedures
OPERATING PROCEDURES In order to operate this attachment safely, it is vital that you read and understand this manual and the Tractor Owner‘s Manual. To prevent injury, stop the tractor engine and remove the ignition key, before attempting to inspect, adjust or service this attachment. BEFORE OPERATING Check to be s u r e that the attachment is properly installed on the tractor and that... -
Page 8: Maintenance And Storage
MAINTENANCE AND STORAGE 1. After each use, check to be sure that all hardware and spring pins are secure. 2. Check the blade's removable cutting edge for excessive wear, and replace it if necessary. 3. Clean the blade, and lightly coat all exposed metal surfaces with oil to prevent rust. -
Page 9: Parts
PARTS... - Page 10 PARTS (Continued) QTY. DESCRIPTION ITEM...
-
Page 11: Customer Service Information
Manager, contact the owner of the dealership or the General Manager. If your problem still has not been resolved to yoursatisfaction. contact the Power Equipment Customer Service Department of American Honda Motor Co., Inc. : Honda Power Equipment Division Customer Service Office 4475... - Page 12 When you write or call, please provide the following information: • Model and serial numbers • Name of the dealer who sold the Honda power equipment to you • Name and address of the dealer who services your equipment •...
