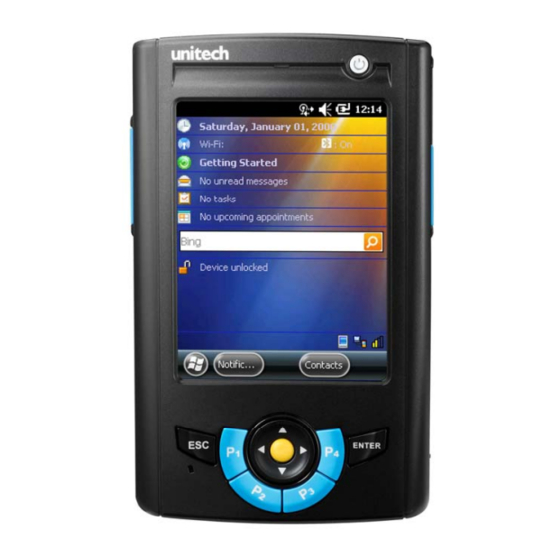

PA500II Enterprise Mobile Computer
- PA500II -
User's Manual
400892G Preliminary

Advertisement

Table of Contents
loading

Related Manuals for Unitech PA500II

Summary of Contents for Unitech PA500II

  • Page 1 PA500II Enterprise Mobile Computer - PA500II - User’s Manual 400892G Preliminary...

  • Page 3: Battery Notices

    Charging the Battery. Note: Rechargeable batteries are advised to replace every year or when 500 charge/discharge cycles achieved to guarantee optimal performance. It Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 4: Battery Charge Notice

    50 degrees. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 5: Storage And Safety Notice

    Use only the adapter supplied. Using the wrong adapter may damage the unit and will void the warranty. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 6: Table Of Contents

    Using the Hardware ..................9 Using the Keypad ..................9 Using the Stylus..................9 Using the SDIO/MMC Slot ...............10 Chapter 3 Getting Connected ..................13 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 7 Performing a Hardware Reset ..............23 Performing a Warm Boot..............23 Performing a Cold Boot..............23 Appendix I System Specification..................25 Appendix II Worldwide Support..................27 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 8 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 9: Getting Started

    The device also supports infrared interface, Bluetooth, and wireless communication capability for exchanging information in a computing communication system. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 10: Pa500Ii Product Introduction & Accessory Kit

    * The adapter’s replaceable clip plugs is available, depending on the region. If anything is missing or appears damaged, contact your dealer. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 11: Tour Of The Pa500Ii

    Alternatively, when the unit is on, this key must be Power button pressed and held down for about two seconds in order to turn the device off. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 12 This port can also support USB and RS232 hosting for devices such as a USB or RS232 scanner, keyboard, or USB memory key. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 13: Setting Up The Pa500Ii

    Slide the battery pack into the battery bay. The battery pack locks to the chassis with an audible click. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 14: Charging The Pa500Ii

    Plug the AC adapter cable into the power jack on the USB charging cable (2). Connect the AC adapter into an electrical outlet (3). Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 15: Powering On The Pa500Ii

    You can now start up your device where you can calibrate the screen, set up the system time zone, and learn some basic stylus usage. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 16 , you can create an ActiveSync partnership to synchronize information between your computer and your device. Se Establishing Device-PC Connection in chapter 3 for detailed instruction Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 17: Using The Hardware

    Using the Stylus CAUTION! Never use anything other than PA500II stylus on the screen; otherwise this could cause a permanent damage. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 18: Using The Sdio/Mmc Slot

    IO/MMC slot Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 19 To remove a storage card: Hold the device securely. Push the card in and release. The card pops out. Remove the card from the slot. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 20 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 21: Getting Connected

    Browse to the location of the downloaded file, and double-click it. The installation wizard begins. Follow the instructions on the screen to install Microsoft ActiveSync. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 22: Connecting The Device To Your Computer

    NOTE: Your computer can create a partnership with multiple PA500IIs. Also, a PA500II can create a partnership with up to two computers. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 23: Wifi Connection

    The Summit Client Utility window appears. To login as an administrator, tap Admin Login. Enter the Admin Password. (Default password: SUMMIT) Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 24 You may select a desired AP to create a new profile. Tap Configure. Tap Yes to create the new profile. Enter the WEP key or network key. Tap OK. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 25 Tap Start → Boot-Mode. Tap Warm Boot to warm start the terminal and load the previous settings. If you want to disconnect the AP, tap Disable Radio. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 26 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 27: Barcode Scanner Programs

    Scan2Key, scanned data will be directed from the scanner port to any waiting (active/focused) text editor such as MS Mobile Word or a text box in an application. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 28: Barcode Symbologies

    2 of 5 ISBT Japanese Post Korean Post YES *data length Matrix 2 of 5 YES *data length *data length Planet Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 29: Barcode Symbologies 2D

    *data length MicroPDF41 *data length OCR mode, OCR direction, emplate, Group G, Group , Check character PDF-417 *dat a length QR Code Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 30 Check Others Disable verification Char/digit TLC-39 (TCI F Linke d YES Code 39) NOTE: *Value Adjustable Scanner Control Panel Version 5.14 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 31: Advanced Settings

    When you perform your next ActiveSync operation, you can restore any data that you previously synchronized to your computer or you can restore data that you backed up to a storage card. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 32 NOTE: When you perform hard reset, the data an time settings will not be retained. Formats, preferences, and other settings are restored to their default factory settings. Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 33: System Specification

    Backup Battery: Ni-Mh battery Supp orts 2 hours backup Weight: 213g (with battery) Enclosu Dimension: 126mm (L) x 25mm ( H) x 77mm (W) Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 34 Main battery (2200mAh) USB communication and charging Accessories cable AC adaptor Regulatory CE, FCC, BSMI, VC CI, CCC, RoHS compliance Approvals Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 35: Appendix Ii

    Unitech Asia Pacific & Middle East http://india.ute.com Greater China D ivision http://cn.ute.com Unitech Japan http://jp.ute.com Unitech America http://us.ute.com http://can.ute.com Unitech Latin America http://latin.ute.com Unitech Europe http://eu.ute.com Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
