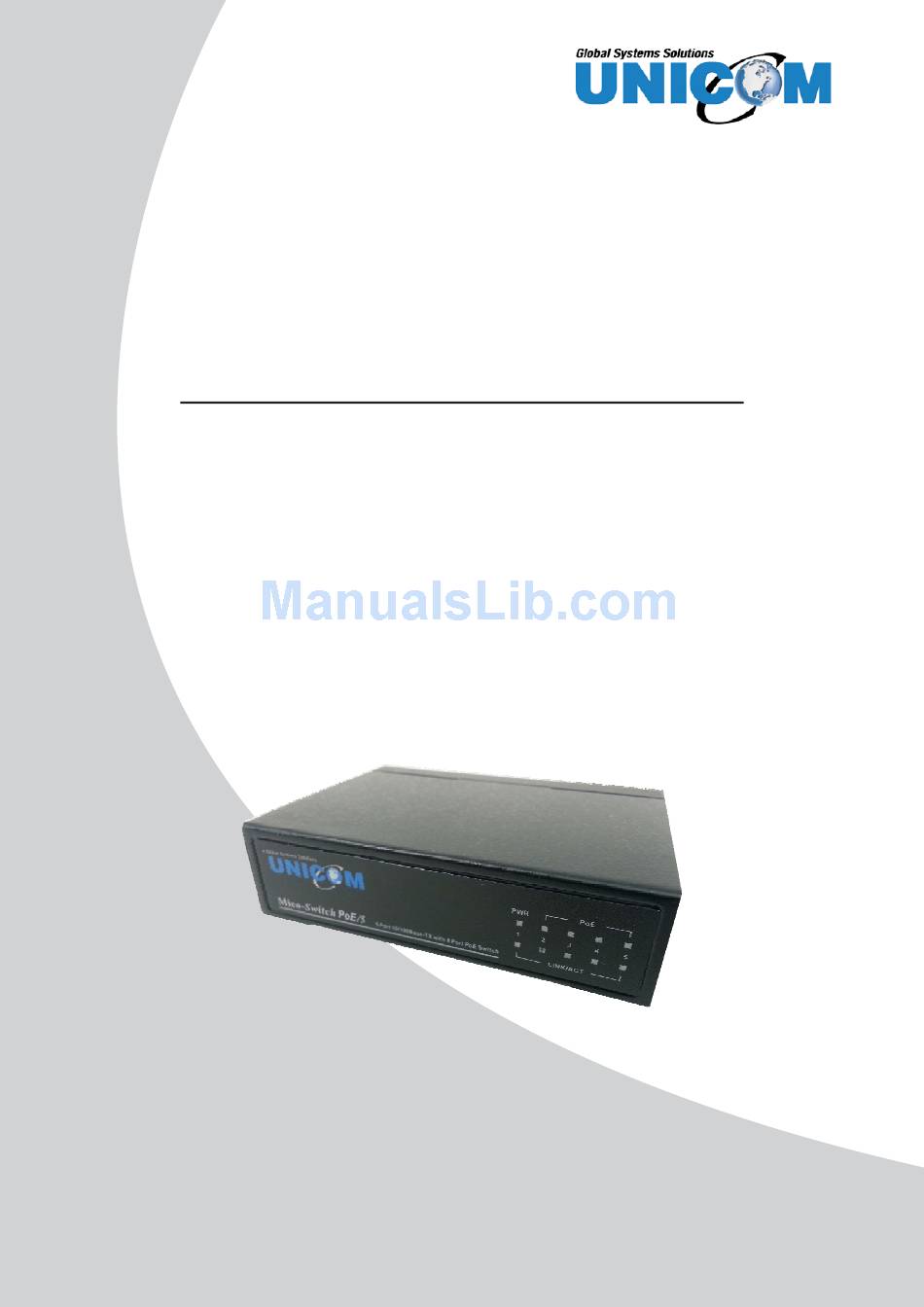

- Page 1 Mico- Switch PoE/5 5 Port 10/100Base-TX with 4 PoE Switch POE-35055T ANUAL SER’S...
- Page 2 Optionally, the standard permits Powered Devices to signal th the PSEs exactly how much power they need. Unicom’s Micro-SwitchPoE/5 Switch is a multi-port switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high-speed networking. It also features a “store-and-forward”...
-
Page 3: Hardware Description

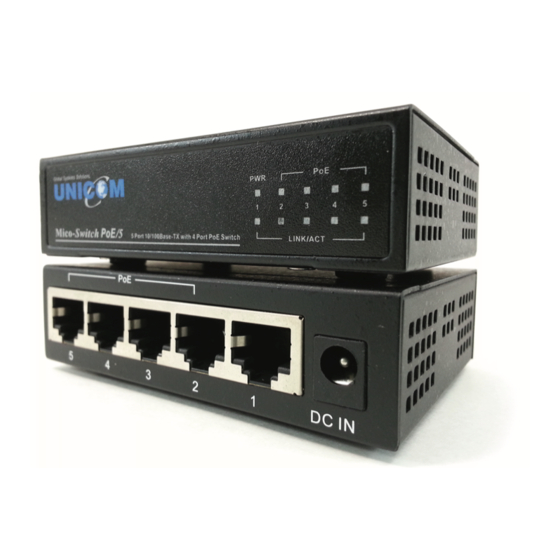

Hardware Description The Front Panel The front panel consists of LED Indications. LED Indicators Per Device: Power Per Port: LINK/ACT (Link/Activity) Per PoE Port: PoE Power Indicator PoE Indicator Global Systems Solutions UNIC M Mico-Switch 5 Port 10/100Base-TX with 4 Port PoE Switch LINK/ACT Indicators Figure 2. -
Page 4: Package Contents
The Real Panel The rear panel view of the Mico-Switch/5 consists of a DC power connector and 5 auto-sensing ports. DC IN Figure 3. Rear panel view of the Micro-Switch/5 RJ-45 Ports ( Auto MDI/MDIX ) 5 auto-sensing ports of 10/100 N-way for 10Base-T or 100Base-TX connections. -
Page 5: Network Application
Network Application This section provides a few samples of network topology in which is used. The Micro-SwitchPoE/5 is designed as a segment switch that has a large address table and high performance to deal with interconnecting networking segments. PC, workstations, and servers can communicate with each other by directly connecting with the Micro-SwitchPoE/5 . -
Page 6: Troubleshooting
Troubleshooting This section is intended to help solve the most common issues with the Micro-SwitchPoE/5 Incorrect connections Every port on this switch can automatically detect either straight or crossover cables when you link it with other Ethernet devices but other devices may demand a specific cable type (depending on the device). -
Page 7: Product Specifications
Product Specifications Standard IEEE 802.3 10Base-T Ethernet Compliance: IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet 14,880 pps for 10Mbps Transfer Rate: 148,800 pps for 100Mbps Connector: 10/100TX: 5 x RJ-45 with auto MDI/MDI-X funtions; Port 2~5 support PoE injector function PoE pin assignmnet: V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8) - Page 8 565 Brea Canyon Rd., Ste A Walnut, CA 91789 Phone: 626.964.7873 Fax: 626.964.7880 www.unicomlink.com e-mail: info@unicomlink.com @UNICOM 2007. UNICOM and “A Network Systems Solution” are trademarks of UNICOM Electric, Inc. All rights reserved. Specifications subject to change without notice. Rev: 11.12...
