- Page 1 Smart-Switch/801 8 Port 10/100Base-TX Switch with 100Base-FX SC/MM FEP-30109T-C ST/MM FEP-30109T-T SC/SM FEP-30109T-C-SM FEP-30109T-C Model shown: SER’S ANUAL Get user manuals: See SafeManuals.com...
- Page 2 Smart-Switch/801 Features Conforms to IEEE 802.3, 802.3u, and 802.3x Ethernet Standards Eight auto-sensing 10/100Mbps Ethernet RJ-45 ports Automatic MDI/MDIX crossover for each 10/100Base-TX port One Fixed 100Mbps Fiber port (SC/ST-Multi-Mode, SC-Single Mode) Back-Pressure-Base flow control on Half-duplex mode Pause-Frame-Base flow control on Full-duplex mode...
-
Page 3: Package Contents
Smart-Switch/801 Package Contents Unpack the contents of the Smart-Switch/801 and verify them against the checklist below. Smart-Switch/801 Fast Ethernet Switch Power Cord Four Rubber Feet RS-232 console management cable User Guide Smart-Switch/801 Power Cord Rubber Feet RS-232 cable User Guide Figure 1-2. -
Page 4: Hardware Description

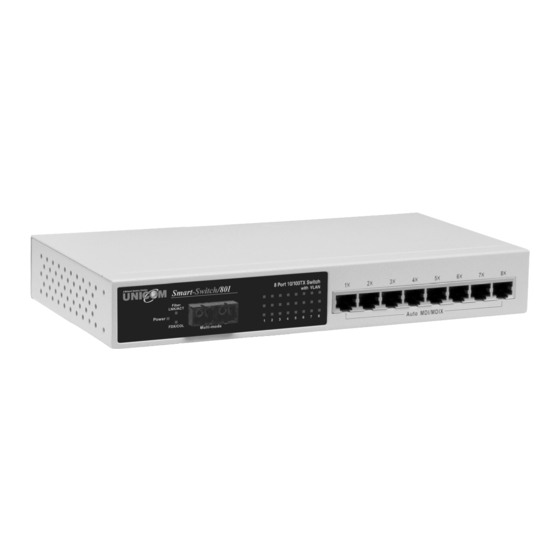

Smart-Switch/801 Hardware Description This section describes the hardware of the Smart-Switch/801. The physical dimensions of the Smart-Switch/801 are 250mm x 132mm x 37mm (L x W x H) Front Panel The Front Panel of the Smart-Switch/801 consists of eight auto-sensing 10/100Mbps Ethernet RJ-45 ports with automatic MDI/MDIX, one 100Base- FX fiber port, and the LED indicators. -
Page 5: Led Indicators
Smart-Switch/801 LED Indicators Figure 2-4. LED Indicators There are three LED Indicators (10/100M, LNK/ACT, FDX/COL) for each UTP port and two LED Indicators (LNK/ACT, FDX/COL) for the fiber port. The following table provides descriptions of the LED status. They provide a real-time indication of systematic operation. - Page 6 Smart-Switch/801 Fiber Port Status Color Description The port is successfully connecting with Green the device. The port is receiving or transmitting LK /ACT Blinks Green data. No device attached. The port is operating in Full-duplex Orange mode. Collision of Packets occurring within the...
-
Page 7: Rear Panel
Panel of the Smart -Switch/801 as shown in Figure 2-8. This Switch will work with AC in the 100-240V AC, 50-60Hz. Range. Figure 2-5 The Rear Panel of the Smart-Switch/801 Console Port: Configuration is done through the console port connector. - Page 8 Smart-Switch/801 Attaching Rubber Feet A_ Make sure mounting surface on the bottom of the Switch is grease and dust free. B_ Remove adhesive backing from the Rubber Feet. C_ Apply the Rubber Feet to each corner on the bottom of the Switch.
-
Page 9: Network Application
This section provides a few samples of network topology in which the Switch is used. Desktop Application The Smart-Switch/801 can be used as a desktop switch, an ideal solution for a small workgroup. Used as a standalone switch, personal computers, servers, and printer servers are directly connected to form a small workgroup. -
Page 10: Segment Application
Figure 3-2. Segment Applications Connect PCs, workstations, and servers to each other by connecting these devices directly to the Smart-Switch/801. All devices in this network can communicate with one another as well as with central servers. - Page 11 PRINTER SERVER COMPUTER Figure 3-3. Use fiber port (Smart-Switch/801) to extend the distance between workgroups In the above illustration, two Smart-Switch/801 switches are used to connect two small workgroups. By using fiber ports to connect switches, the distance between the two switches can extend up to 2Km (Multi- Mode) or 30Km (Single Mode fiber).
-
Page 12: Network Configuration
Network Configuration This Section explains how to configure VLAN features via a direct connection to the console port on the rear panel of the Smart-Switch/801. This port is a female DB-9 connector. From the main menu of the console program, the user can configure various functions of the switch. - Page 13 Smart-Switch/801 Baud Rate: 9600 bps Data Bits: 8 Parity: none Stop Bit: 1 Flow Control: None Figure 4-2. The settings of communication parameters After you have finished parameter settings, press “OK“. The main console management menu should appear. (You need to reboot the...
-
Page 14: Console Management
Smart-Switch/801 Console Management Console Configuration enables use of a local console terminal or PC to control ports and VLANs on the Smart-Switch/801. Main Menu The Main Menu shows all available switch configuration options. Figure 4-3. The Main Menu of Console Management... - Page 15 Smart-Switch/801 Figure 4-4. The default Per Port Setting Figure 4-5. Port statuses to configure Setting VLAN A VLAN (Virtual LAN) is a group of switch ports designated by the switch as belonging to the same broadcast domain. This feature allows workgroups to be defined on the basis of their logical location instead of their physical location.
- Page 16 Smart-Switch/801 Grouping the switch ports into broadcast domains and assigning them to the same VLAN increases performance and network capacity. Moreover, VLAN groups can be modified at any time to add, remove, or change users without any re-cabling. From the Main Menu, choose the second item “ Setting VLAN “ by typing “...
- Page 17 Smart-Switch/801 Figure 4-7. The process of creating VLAN group Continue to configure the other ports with another VLAN group. In the following example, we create three VLAN groups (VLAN 1: Port 4, 5, 6; VLAN 2: Port 1, 2, 3, 4; VLAN 3: Port 4, 7, 8, 9) and the 4 port may be connected to an MIS member.
-
Page 18: Troubleshooting
Smart-Switch/801 Troubleshooting This section helps solve the most common problems on the Smart- Switch/801. Incorrect connections Faulty or Loose Cables Look for loose or obviously faulty connections. If they appear to be OK, make sure the connections are snug. If that does not correct the problem, try a different cable. -
Page 19: Led Diagnostic Indicators
Smart-Switch/801 LED Diagnostic Indicators The Switch status can be easily monitored through panel indicators. If the power indicator does not light when the power cord is plugged in, you may have a problem with AC power outlet or power cord. However, if the Switch powers off once running, Check for loose power connections, power losses, or surges at the AC power outlet. -
Page 20: Technical Specifications
Smart-Switch/801 Technical Specifications Standards Compliance IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX/FX Fast Ethernet IEEE 802.3x Flow Control Protocol CSMA/CD Max Forwarding and 14,880 pps per Ethernet port, Max Filtering Rate 148,800 pps per Fast Ethernet port Packet size 64 ~ 1522 bytes... - Page 21 Smart-Switch/801 Get user manuals: See SafeManuals.com...
- Page 22 City of Industry, CA 91748 U.S.A. Phone: 626.964.7873 or 800.346.6668 Fax: 626.964.7880 www.unicomlink.com e-mail: info@unicomlink.com ©UNICOM 2005. UNICOM and “A Network Systems Solution” are trademarks of UNICOM Electric, Inc. All rights reserved. Specifications subject to change without notice. Rev: 09.05 Get user manuals:...
