On-Screen Display (OSD) Control Box

OSD Control Buttons

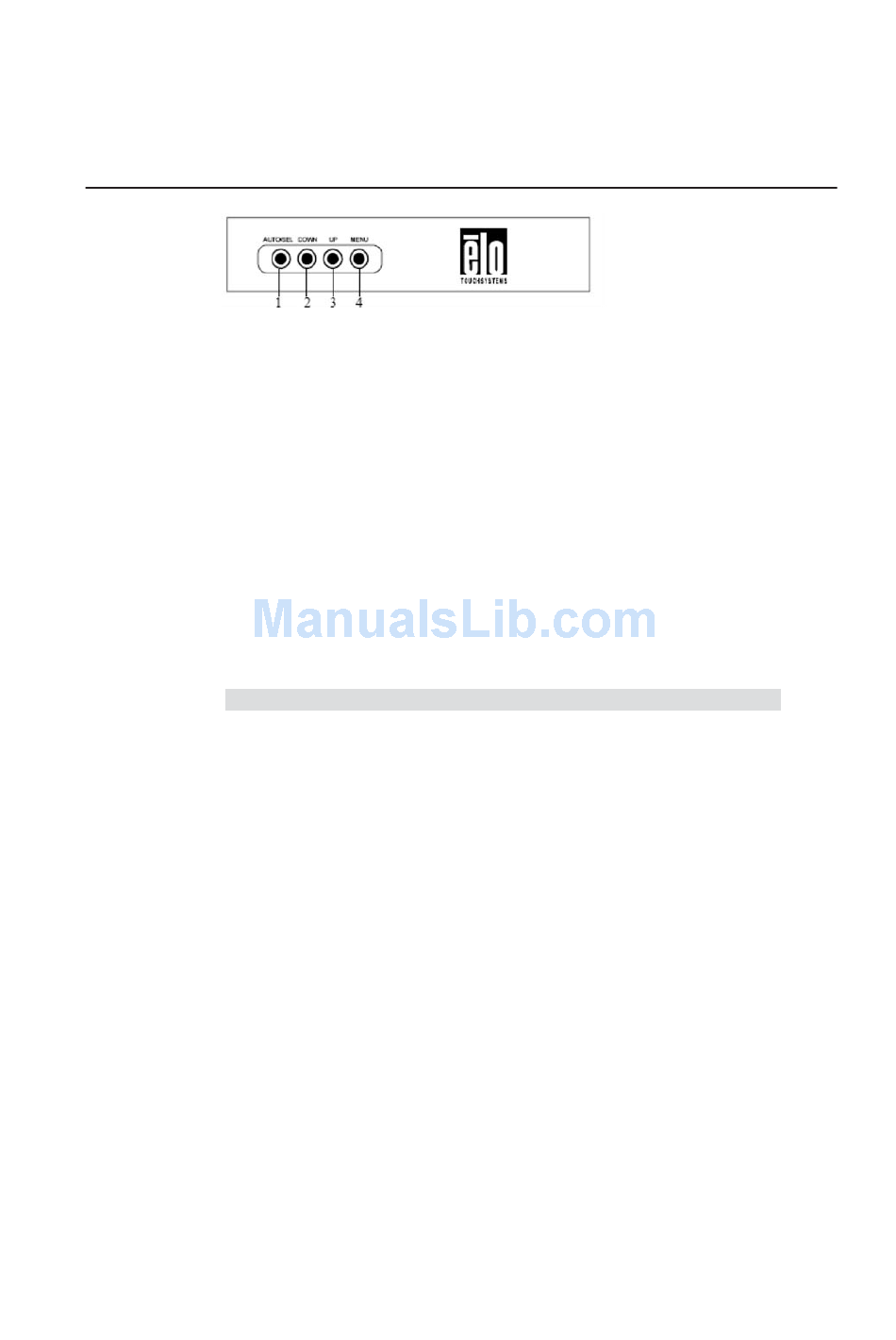

The On-Screen Display (OSD) Control Box, included with your
shipment, allows you to change settings on the monitor screen. It
has four buttons:
1
2
3
4

OSD Menu Functions

Use the control buttons for the following functions:
Control
MENU
UP
DOWN
AUTO/SEL
After adjusting the values, the monitor will automatically save the
changes.
AUTO/SEL (select)
DOWN
UP
MENU
Function
Displays/exits the OSD Menus
1) Enters contrast of the OSD (if no
OSD is currently displayed on screen)
2) Increases value of OSD adjustment choice
3) Selects OSD choice counterclockwise
1) Enters brightness adjustment (if no OSD is
currently displayed on screen)
2) Decreases value of OSD adjustment choice
1) Automatically adjusts the image on the screen (this
function not available for 3239L-xxEx models)
2) Selects adjustment choices from the OSD menus.
Elo TouchSystems 3239L User Guide 17
