Parts List - Sanyo DC-X8CT Service Manual

Separate mini component system

Advertisement

Table of Contents

PARTS LIST

CD MECHA ASSY(PM-CDS800TP-SH... Only initial))
REF.NO.
PART NO.
CM00
614 309 7181 ASSY,MECHA,PM-CDS800TP-SH,
CM01
645 033 6072 ASSY,CHASSIS,CHASSIS ASSY
CM02
645 033 7512 DRAWER 2
CM03
645 033 5976 ASSY,HOLDER L,
CM04
645 033 6898 ASSY,HOLDER R3B,
CM05
645 033 6041 ASSY,PC BOARD A
CM06
645 033 6065 ASSY,PC BOARD B
CM07
645 033 6058 ASSY,PC BOARD C
CM08
645 033 5945 LEAD WIRE
CM09
645 033 5952 LEAD WIRE
CM10
645 033 6713 SPACER SW
CM11
645 033 6027 ASSY,GEAR DRIVE,
CM12
645 041 2417 ASSY,CRG 101,CARRIAGE NO.1
CM13
645 041 2424 ASSY,CRG 201
CM14
645 041 2431 ASSY,CRG 301
CM15
645 033 5877 INSULATER
CM16
645 033 5884 INSULATER
CM17
645 033 5907 CUSHION
CM18
645 033 6324 BEVEL GEAR 4
CM19
645 047 8543 ASSY,GEAR STAR
CM23
645 033 6089 COVER 2
CM24
645 033 6539 SHAFT
CM25
645 033 6461 SLIDER 4
CM26
645 033 6201 GEAR SPLINE
CM27
645 033 6232 BEVEL GEAR 1
CM28
645 033 6270 GEAR IDLER 1
CM29
645 033 6102 PLATE SPRING
CM30
645 033 6287 BEVEL GEAR 3
CM31
645 033 6225 PULLEY C

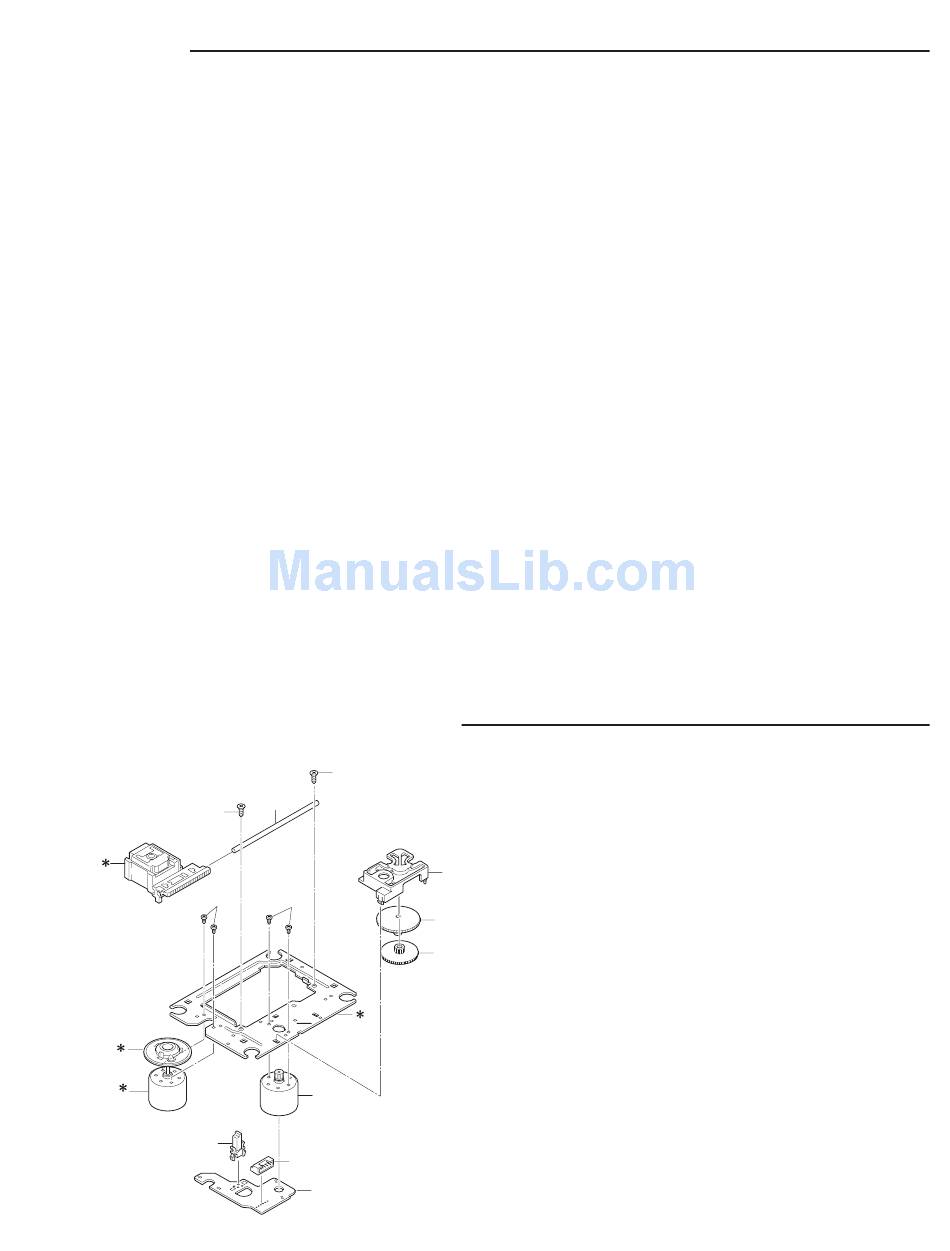

EXPLODED VIEW (CD BASE MECHANISM)
PM09
PM08
PM07
DESCRIPTION
CD CHANGER (Only initial)
DRAWER HOLDER L ASS
DRAWER HOLDER R ASSY
SINCHRO GEAR ASSY
PM09
PM06
PM08
PM02
PM01
PM10
REF.NO.
PART NO.
CM32
645 041 2448 ASSY,CLAMPER SA,
CM33
645 033 6140 ARM SLIDER R
CM34
645 033 6157 ARM SLIDER L
CM35
645 033 6430 SLIDER 1
CM36
645 033 5969 ASSY,SLIDER 2,
CM37
645 033 6980 ARM STOPPER A2
CM38
645 033 6416 ARM STOPPER B
CM39
645 033 6263 GEAR IDLER A2
CM40
645 033 6218 GEAR IDLER C
CM41
645 047 8628 LEVER 2
CM43
645 033 6454 LIFTER,CARRIGE LIFT UP
CM44
645 033 5778 BELT
or
645 047 8611 BELT
CM45
645 033 5785 BELT
or
645 047 8635 BELT
CM46
645 033 7048 SPRING
CM47
645 033 6393 PULLEY A
CM48
645 033 6003 ASSY,MOTOR CRG S,
CM49
645 033 6010 ASSY,MOTOR DRW S,
CM50
645 033 5723 SPRING
CM51
614 303 7545 SPRING
CM52
645 047 8604 SPRING
CM60
645 033 5648 WASHER
CM61
645 033 5594 SCREW
CM62
645 033 7031 SCREW
CM63
645 033 5563 SCREW
CM64
645 033 5631 WASHER
CM65
645 033 5570 SCREW
CM66
645 033 5600 SCREW
CM67
645 033 5617 SCREW
CD BASE MECHA ASSY
REF.NO.
PART NO.
614 307 9804 ASSY,MECHA,CDDA11N-SASH
PM01
620 021 8436 PLUG 6P
PM02
620 233 0853 ASSY MOTOR,BASE CHASSIS ASSY
PM03
620 236 3776 COVER,GEAR
PM04
620 230 8753 GEAR MIDDLE,RELAY GEAR
PM03
PM05
620 230 8760 GEAR DRIVE
PM06
620 231 0596 SHAFT SLIDE,PICK RAIL
PM04
PM07
620 233 0860 SWITCH LEAG,LIMIT SWITCH
PM08
411 104 8401 SCR PAN PCS 2X3
PM05
PM09
411 027 5402 SCR S-TPG FLT 2.6X6
PM10
620 236 0836 PWB,MOTOR
*
N.S.P : Not supplied as service parts.
- 40 -
DESCRIPTION
CLAMPER (SANYO)
FWD/RVS SLIDE ASSY
CARRIGE MOTOR ASSY
DRAWER MOTOR ASSY
DESCRIPTION
