Alto TERMINATOR II User Manual page 6

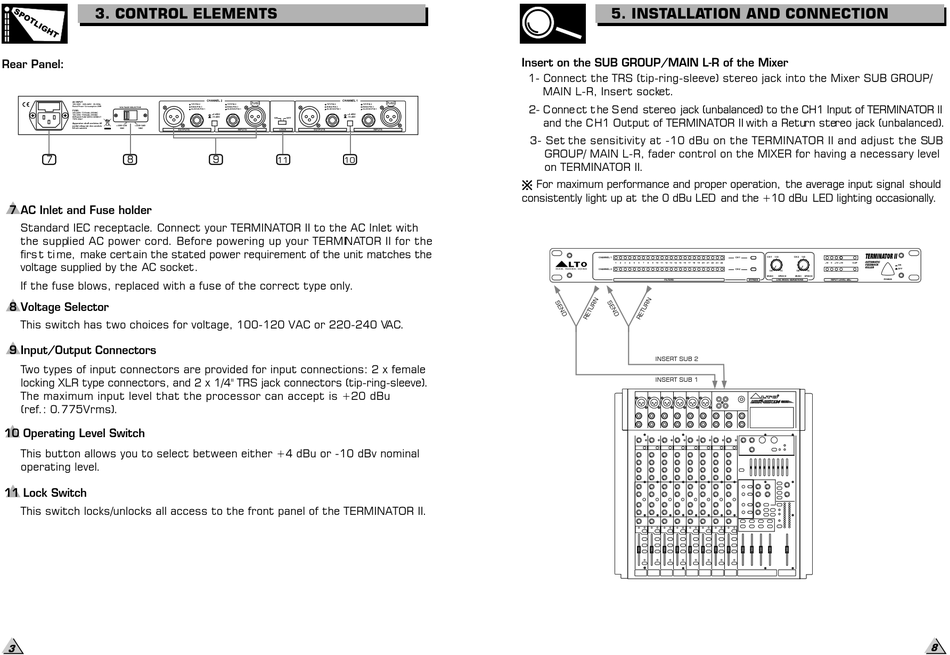

3. CONTROL ELEMENTS 3. CONTROL ELEMENTS
Rear Panel:
AC INPUT
100-120V /220-240V 60-50Hz
Rated Power Consumption 20W
VOLTAGE SELECTOR
FUSE:
220-240V: T315mAL 250VAC
100-120V: T500mAL 250VAC
REPLACE FUSE WITH CORRECT
TYPE ONLY
Apparaten skall anslutas till
jordat uttag nar den ansluts ~100-120 ~220-240
VAC VAC
till ett natverk
OUTPUTS
7 8
7 AC Inlet and Fuse holder
Standard IEC receptacle. Connect your TERMINATOR II to the AC Inlet with
the supplied AC power cord. Before powering up your TERMI N ATOR II for the
firs t ti me, make certain the stated power requirement of the unit matches the
voltage supplied by the AC socket.
If the fuse blows, replaced with a fuse of the correct type only.
8 Voltage Selector
This switch has two choices for voltage, 100-120 VAC or 220-240 VAC.
9 Input/Output Connectors
Two types of input connectors are provided for input connections: 2 x female
locking XLR type connectors, and 2 x 1/4" TRS jack connectors (tip-ring-sleeve).
The maximum input level that the processor can accept is +20 dBu
(ref.: 0.775Vrms).
10 Operating Level Switch
This button allows you to select between either +4 dBu or -10 dBv nominal
operating level.
11 Lock Switch
This switch locks/unlocks all access to the front panel of the TERMINATOR II.
3
CHANNEL 2 CHANNEL 1
TIP/PIN 2 TIP/PIN 2 TIP/PIN 2 TIP/PIN 2
RING/PIN 3 RING/PIN 3 RING/PIN 3 RING/PIN 3
SLEEVE/PIN 1 SLEEVE/PIN 1 SLEEVE/PIN 1 SLEEVE/PIN 1
+4 dBU +4 dBU
-10 dBV -10 dBV
ON OFF
INPUTS LOCK OUTPUTS
9
11 10
Insert on the SUB GROUP/MAIN L-R of the Mixer
1- Connect the TRS (tip-ring-sleeve) stereo jack into the Mixer SUB GROUP/
MAIN L-R, Insert socket.
2- C onne ct t he S end stereo jack (unbalanced) to the CH1 Input of TERMINATOR II
and the C H1 Output of TERMINATOR II with a Return stereo jack (unbalanced).
INPUTS
3- Set the sensitivity at -10 dBu on the TERMINATOR II and adjust the SUB
GROUP/ MAIN L-R, fader control on the MIXER for having a necessary level
on TERMINATOR II.
For maximum performance and proper operation, the average input signal should
consistently light up at the 0 dBu LED and the +10 dBu LED lighting occasionally.
3. CONTROL ELEMENTS 5. INSTALLATION AND CONNECTION
CHANNEL 1 CH 1 CH 1 1/40
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CHANNEL 2 CH 2
1/80
MUSIC SPEECH
FILTERS BYPASS LIVE MODE VARIATIONS
INSERT SUB 2
INSERT SUB 1
TERMINATOR II
CH 2 1/40
-10 0 +10 +18 CLIP AUTOMATIC
FEEDBACK
ON
KILLER
OFF
1/5 1/80 1/5
MUSIC SPEECH
INPUT LEVEL dBu POWER
8
