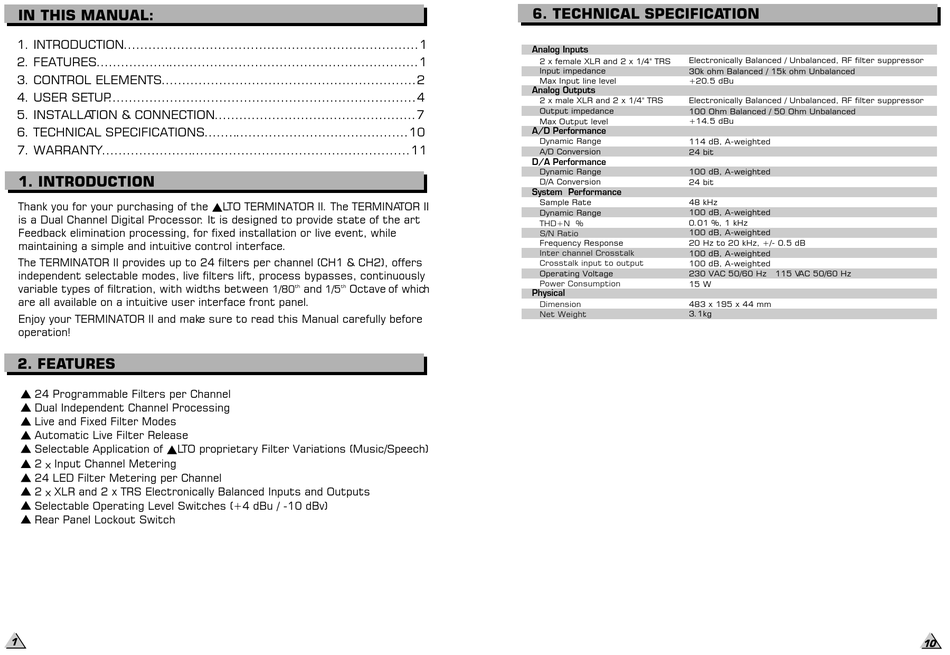

IN THIS MANUAL:

1. INTRODUCTION........................................................................1
2. FEATURES...............................................................................1
3. CONTROL ELEMENTS..............................................................2
4. USER SETUP ...........................................................................4
5. INSTALLA TION & CONNECTION.................................................7
6. TECHNICAL SPECIFICATIONS..................................................10
7. WARRANTY...........................................................................11
1. INTRODUCTION
Thank you for your purchasing of the
is a Dual Channel Digital Processor. It is designed to provide state of the art
Feedback elimination processing, for fixed installation or live event, while
maintaining a simple and intuitive control interface.
The TERMINATOR II provides up to 24 filters per channel (CH1 & CH2), offers
independent selectable modes, live filters lift, process bypasses, continuously
variable types of filtration, with widths between
are all available on a intuitive user interface front panel.
Enjoy your TERMINATOR II and make sure to read this Manual carefully before
operation!
2. FEATURES
24 Programmable Filters per Channel
Dual Independent Channel Processing
Live and Fixed Filter Modes
Automatic Live Filter Release
Selectable Application of LTO
2 Input Channel Metering
24 LED Filter Metering per Channel
2 XLR and 2 x TRS Electronically Balanced Inputs and Outputs
Selectable Operating Level Switches (+4 dBu / -10 dBv)
Rear Panel Lockout Switch
1
LTO TERMINATOR II. The TERMINATOR II
th and th Octave of which
1/80 1/5
proprietary Filter Variations (Music/Speech)

6. TECHNICAL SPECIFICATION

Analog Inputs
Electronically Balanced / Unbalanced, RF filter suppressor
2 x female XLR and 2 x 1/4" TRS
Input impedance 30k ohm Balanced / 15k ohm Unbalanced
Max Input line level +20.5 dBu
Analog Outputs
2 x male XLR and 2 x 1/4" TRS Electronically Balanced / Unbalanced, RF filter suppressor
Output impedance
100 Ohm Balanced / 50 Ohm Unbalanced
Max Output level +14.5 dBu
A/D Performance
Dynamic Range 114 dB, A-weighted
A/D Conversion
24 bit
D/A Performance
Dynamic Range 100 dB, A-weighted
D/A Conversion
24 bit
System Performance
Sample Rate 48 kHz
Dynamic Range 100 dB, A-weighted
THD+N % 0.01 %, 1 kHz
100 dB, A-weighted
S/N Ratio
Frequency Response 20 Hz to 20 kHz, +/- 0.5 dB
Inter channel Crosstalk 100 dB, A-weighted
Crosstalk input to output
100 dB, A-weighted
Power Requirement Operating Voltage 230 VAC 50/60 Hz 115 VAC 50/60 Hz
Power Consumption 15 W
Physical
Dimension 483 x 195 x 44 mm
Net Weight 3.1kg
