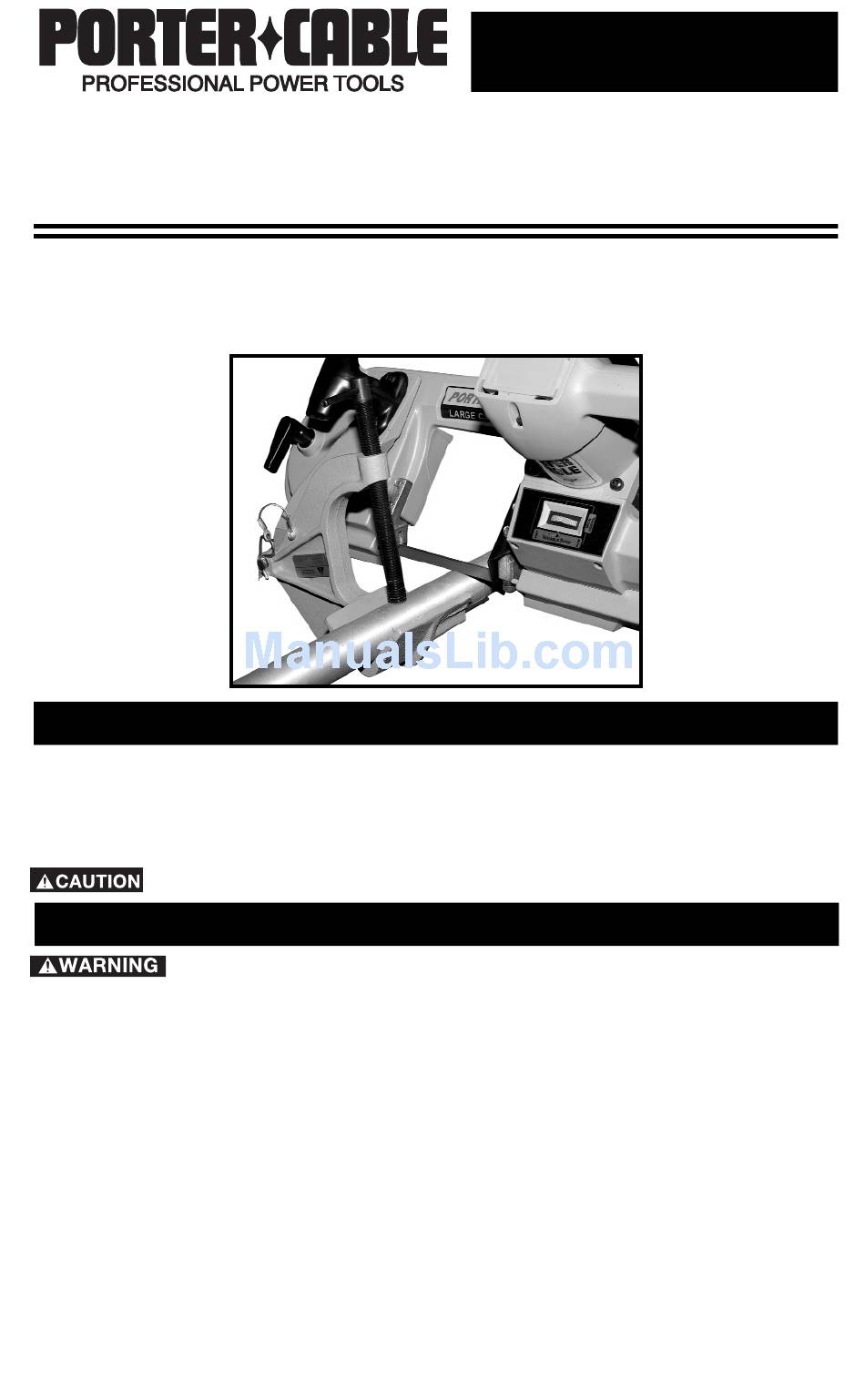

MODEL 5724
WORK VISE FOR 7723/7724 PORTA-BAND SAW
Please make certain that the person who is to use this equipment carefully
reads and understands these instructions before starting operations.
Model 5724 Work Vise is designed for use with Porter-Cable Model 7723 or
7724 Porta-Band© saw. The following shapes may be cut, up to the
maximum sizes listed:
Rounds - 4
Cutting of other shapes is not recommended
IMPORTANT SAFETY INSTRUCTIONS
When using electric tools, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and personal
injury, including the following:
READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL
AND THE MANUAL FOR YOUR PORTA-BAND SAW.
There are certain applications for which this tool was designed. Porter-
Cable strongly recommends that this tool NOT be modified and/or used
for any application other than for which it was designed. If you have any
questions relative to its application DO NOT use the tool until you have
written Porter-Cable and we have advised you.
IMPORTANT
FUNCTIONAL DESCRIPTION
Squares - 3" x 3"
1
/
" Diameter
2
ESPAÑOL: PÁGINA 7
FRANÇAISE: PAGE 13
Part No. 885341 - 02-07-05
Angles - 3" x 3"
Technical Service Manager
Porter-Cable Corporation
4825 Highway 45 North
P. O. Box 2468
Jackson, TN 38302-2468
www.porter-cable.com
Advertisement
Related Manuals for Porter-Cable 5724
Summary of Contents for Porter-Cable 5724
-
Page 1: Functional Description
Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations. FUNCTIONAL DESCRIPTION Model 5724 Work Vise is designed for use with Porter-Cable Model 7723 or 7724 Porta-Band© saw. The following shapes may be cut, up to the maximum sizes listed: Rounds - 4 Squares - 3"... -
Page 2: Operation
(A) Fig. 2 (Torque: 40 to 50 in. lbs.) furnished with Model 5724. 3. Reassemble knob (C) Fig. 1, using two longer mounting screws furnished with Model 5724. 4. Position power cord to slot (B) Fig. 2. OPERATION Disconnect saw from power source. - Page 3 Fig. 1 Fig. 2 The workpiece must be secured to support the weight of the work vise and the band saw. 2. Position the work vise to the workpiece and secure by tightening the clamp screw firmly (See Figs. 3 and 3a). The clamp must support the band saw.
- Page 4 Fig. 3 3. Attach band saw to work vise (see Fig. 4): Keep hands away from saw blade when attaching and removing band saw. A. Insert mounting bracket pin (A) through hole (B) in work vise. B. Install safety clip (C) and gently lower saw until it rests on workpiece. Safety clip must be installed to prevent separation of band saw from work vise during operation.
-
Page 5: Making The Cut
Fig. 4 MAKING THE CUT Make sure band saw trigger switch is in OFF position. Connect saw to power source. Only use the vise at heights where a firm grip can be maintained on the saw handle throughout the cut. Always wear eye protection to minimize the risk of eye injury. -
Page 6: Side View
PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period. - Page 7 Porter-Cable • Delta products should be obtained by contacting any Porter-Cable • Delta Distributor, Authorized Service Center, or Porter-Cable • Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the nearest Porter-Cable •...
