Instruction manual
Instrucciones
Manuel d'instructions
To learn more about Porter-Cable visit
our website at:
http://www.porter-cable.com
Para obtener más información sobre
Porter-Cable, visite nuestro sitio web en:
http://www.porter-cable.com
Pour de plus amples renseignements
concernant Porter-Cable, consultez
notre site Web à l'adresse suivante:
http://www.porter-cable.com
Copyright © 2002 Porter-Cable Corporation
Manual de
ESPAÑOL: PÁGINA 9
FRANÇAIS: PAGE 17

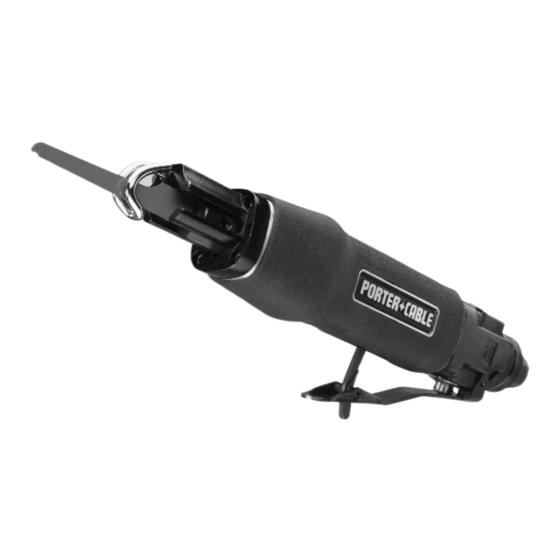

Reciprocating Saw
Sierra de movimiento
alternativo (reciprocante)
Scie va-et-vient
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
IMPORTANTE
Asegúrese de que la persona que va a usar esta
herramienta lea cuidadosamente y comprenda
estas instrucciones antes de empezar a
operarla.
IMPORTANT
Veuillez vous assurer que la personne qui
utilise cet outil lit attentivement et comprend
ces instructions avant de commencer à utiliser
l'outil.
MODEL PTX5
MODELO PTX5
MODÈLE PTX5
Part No. D22716-028-3
Advertisement
Table of Contents
Related Manuals for Porter-Cable PTX5
Summary of Contents for Porter-Cable PTX5
-

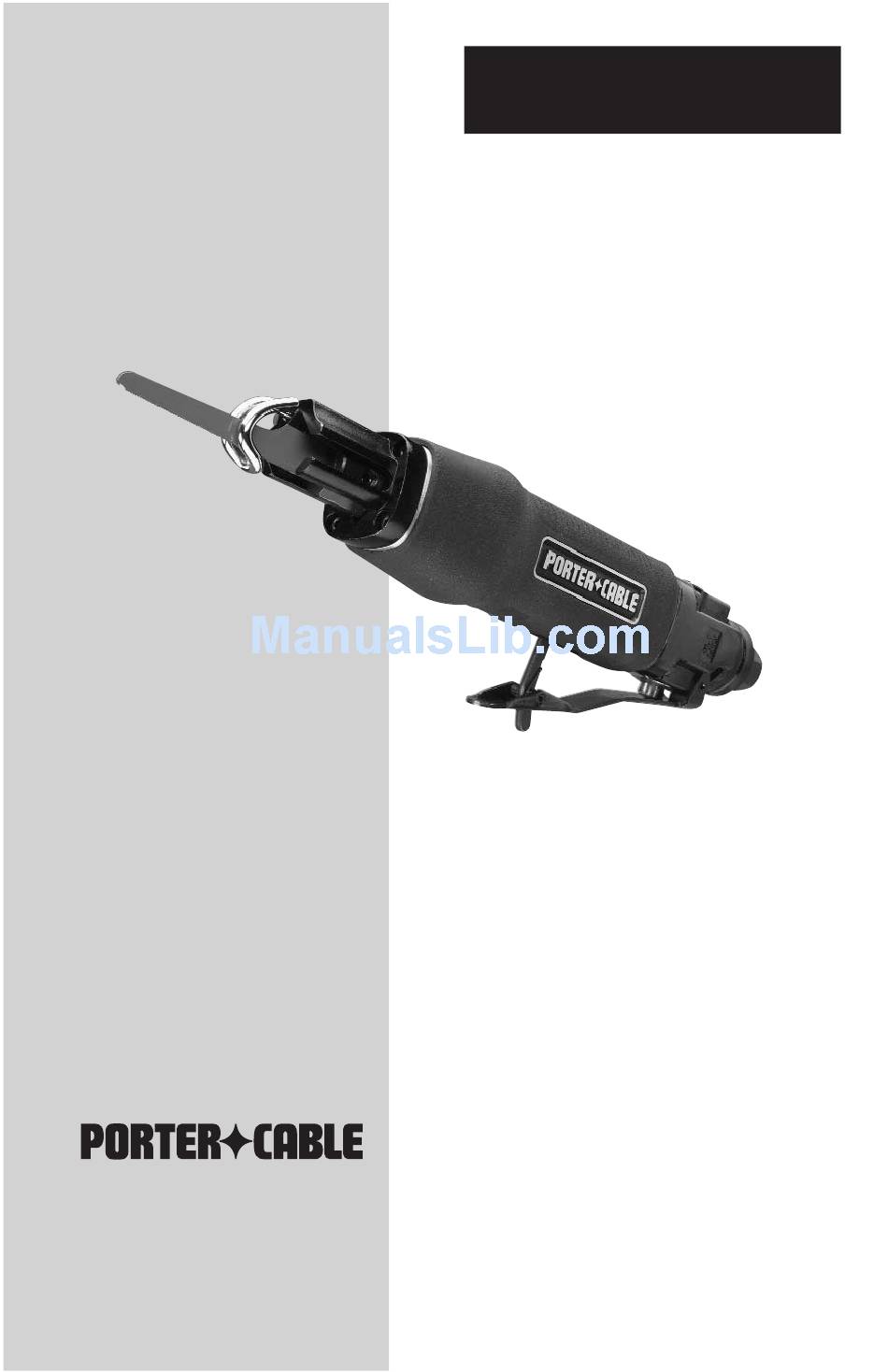

Page 1: Reciprocating Saw
Instruction manual Manual de Instrucciones Manuel d'instructions To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Para obtener más información sobre Porter-Cable, visite nuestro sitio web en: http://www.porter-cable.com Pour de plus amples renseignements concernant Porter-Cable, consultez notre site Web à l'adresse suivante: http://www.porter-cable.com... -
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information re- lates to protecting YOUR SAFE- TY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this informa- tion, we use the symbols below. Please read the manual and pay attention to these sections. - Page 3 HAZARD RISK OF LOSS OF HEARING WHAT COULD HAPPEN • Long term exposure to noise produced from the opera- tion of air tools can lead to permanent hearing loss. HAZARD RISK TO BREATHING INHALATION HAZARD WHAT COULD HAPPEN • Abrasive tools, such as grinders, sanders, and cut-off tools generate dust and abrasive materials which can be harmful to human lungs and respiratory system.
- Page 4 HAZARD RISK OF INJURY (continued) WHAT COULD HAPPEN • Improperly maintained tools and accessories can cause serious injury. • There is a risk of bursting if the tool is damaged. Use only accessories identified by the manufacturer to be used with specific tools. HAZARD RISK OF ELETRIC SHOCK WHAT COULD HAPPEN...
-
Page 5: Specifications
Strokes Per Minute Maximum Working Pressure Blade Type Air Inlet Recommended Hose Size Air Consumption @ 90 PSI Accessories Required IMPORTANT: Line pressure or hose inside diameter should be increased to compensate for unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8” I.D. and fittings should have 1/4”... -
Page 6: Maintenance
Tips If the tool jams while cutting, release throttle immediately. Do not attempt to free the tool by starting and stopping the tool. Lubrication Air tools require lubrication throughout the life of the tool. The air motor and bearing uses compressed air to power the tool. -
Page 7: Repair Parts
REPAIR PARTS 21 (4) Part No. + Only available in Trigger Repair Kit D25426 u Only Available in Tune-Up Kit D26763 b Only Available in Blade Guard Kit D25440 NOTE: Parts not listed are not serviceable. Description Piston Rod Work Piston Valve Pin Valve Cap O-Ring... -
Page 8: Limited Warranty
• Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s). • Deliver or ship the product to the nearest Porter-Cable Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.
