Summary of Contents for Dynaudio BM

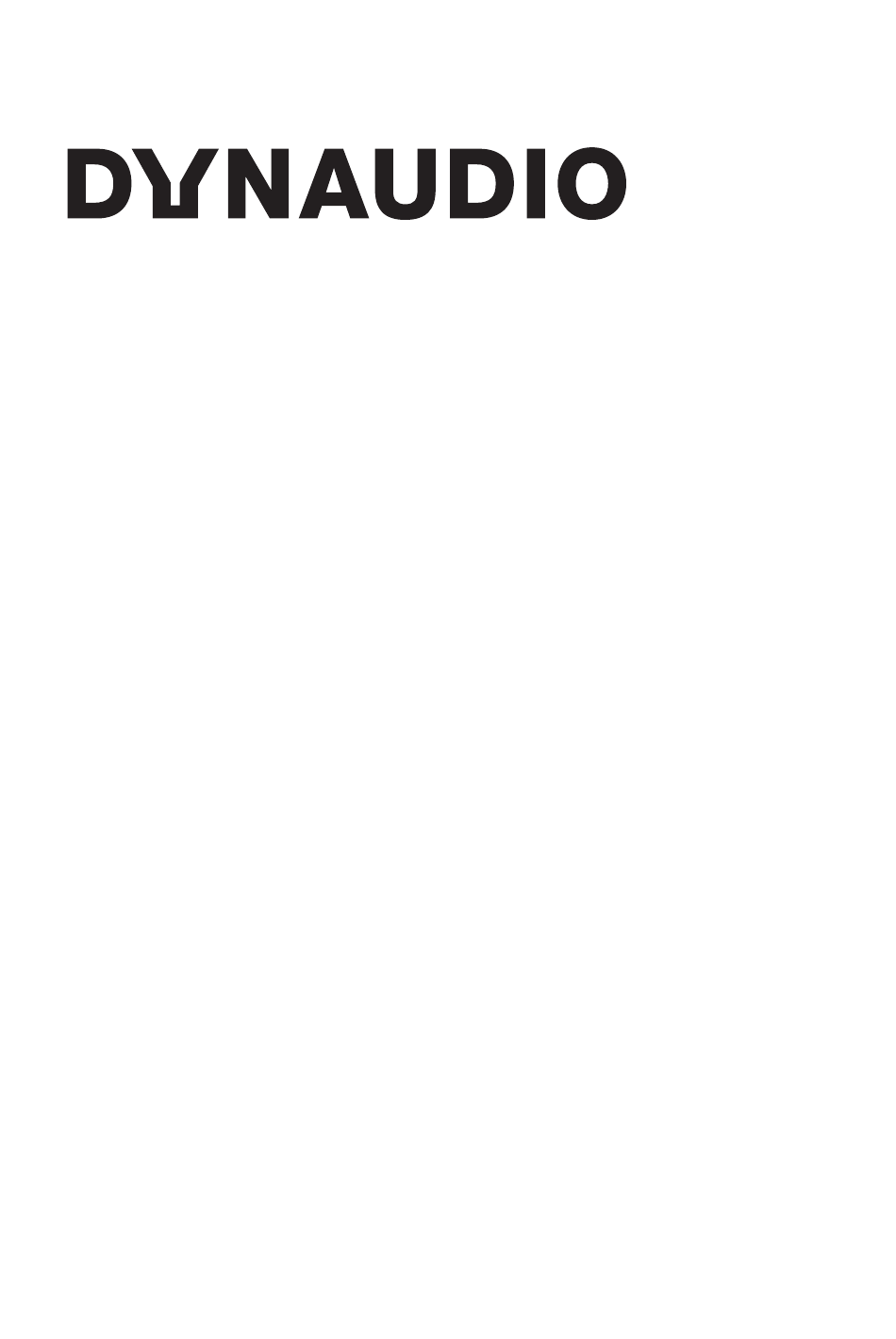

- Page 1 User manual...
- Page 2 Setting Up ▪ Mains Power Connections ▪ Audio Connections ▪ Positioning ▪ Operation ▪ Controls ▪ Indicators ▪ Running in ▪ Protection ▪ Miscellaneous ▪ Troubleshooting ▪ Care ▪ Service ▪ Warranty ▪ Technical Specifications ▪ Schematic Diagram BM User manual...

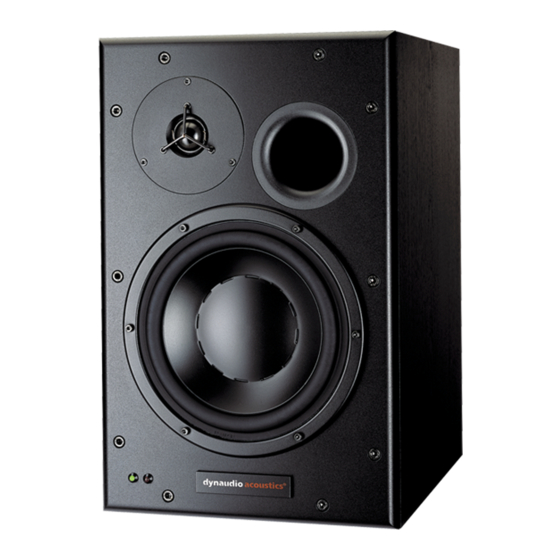

- Page 4 Introduction Congratulations on your purchase of the Dynaudio BM6A monitor. With the right care and attention it will give you many years of trouble free audio reproduction. It is most important, however, that you take a few minutes at this early stage in your BM6A’s life to read the safety instructions.
-
Page 5: Important Safety Instructions
Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warning. 4. Follow all instructions 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. 8. -
Page 6: Mains Power Connections
It can be mounted on stands or on the meter bridge of the console (providing this is substantial enough). For best results, the speakers should be “aimed” at the listener in both vertical and horizontal planes. In any situation ensure that there is adequate space for ventilation around the heatsink. BM User manual... -
Page 7: Operation
Operation Controls Level switch This sets the input sensitivity of the unit. The +4 position is intended for professional use and means that full power is reached with an input level of +4dBm (balanced). The -10 position is intended for semi-professional or domestic use and means that full power is reached with an input level of -10dBm (unbalanced). - Page 8 This will disconnect the drive units from the amplifiers and change the power LED to its red/fault condition. In addition the HF amplifier has an optical limiter in circuit which prevents excessive long term power reaching the tweeter whilst allowing transients to pass uncompressed. BM User manual...
-
Page 9: Troubleshooting
Miscellaneous Troubleshooting If the speaker stops working and the power LED turns red (fault condition) switch the mains power off and leave it for a moment. If the unit fails to operate again when you switch back on the fault may be due to overheating, switch off again and allow it to fully cool down before powering up. - Page 10 Service There are no user serviceable parts inside the BM6A so consult your dealer if service is required or contact one of the addresses below. Dynaudio A/S Sverigesvej 15 8660 Skanderborg Denmark BM User manual...
-
Page 11: Warranty
Warranty This product is guaranteed against defects in materials and workmanship for 1 year from date of purchase. This warranty is void if the unit has been tampered with or modified in any way, or in our opinion has not been used in accordance with the instructions above. -
Page 12: Technical Specifications
Variable HF and LF trim, Input sensitivity 338 x 216 x 285 millimeters (H x W x D). Dimensions (Allow 35 mm for rear connectors clearance). Free standing near field, desktop mounting. Positioning Rigid high performance stands recommended. Accessories Power cable supplied BM User manual... -
Page 13: Schematic Diagram
Schematic Diagram 100 W Hexfet Amplifier Instrumentation type electronically balanced Limiter input stage DA D260 Mid-range EQ 4th order crossover Driver protection HF Trim Control DA 17W75 Clip indicator Equalization 100 W Hexfet Amplifier Schematic Diagram... - Page 14 Designed and engineered by Dynaudio Labs in Denmark Dynaudio A/S 8660 Skanderborg Denmark dynaudio.com © 2022 Dynaudio A/S All text and image copyrights reserved. Subject to change without notice. BM User manual...
