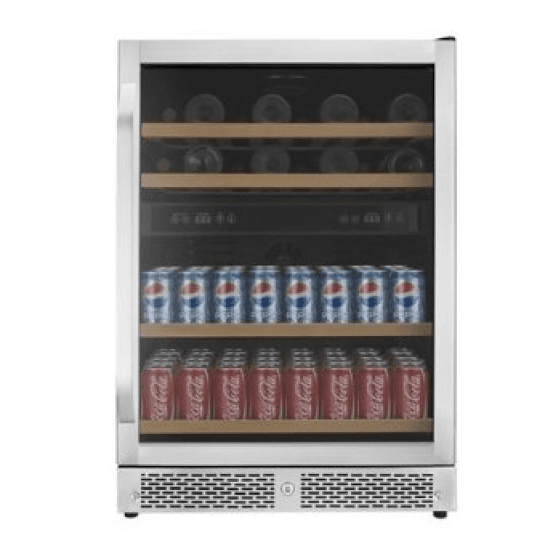

Built-in wine and beverage cooler

Advertisement

Built-in Wine and Beverage Cooler
CWB7016DZ
Owner's Manual
For more information on other great EdgeStar products on the web, go to http://www.edgestar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWB7016DZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EdgeStar CWB7016DZ

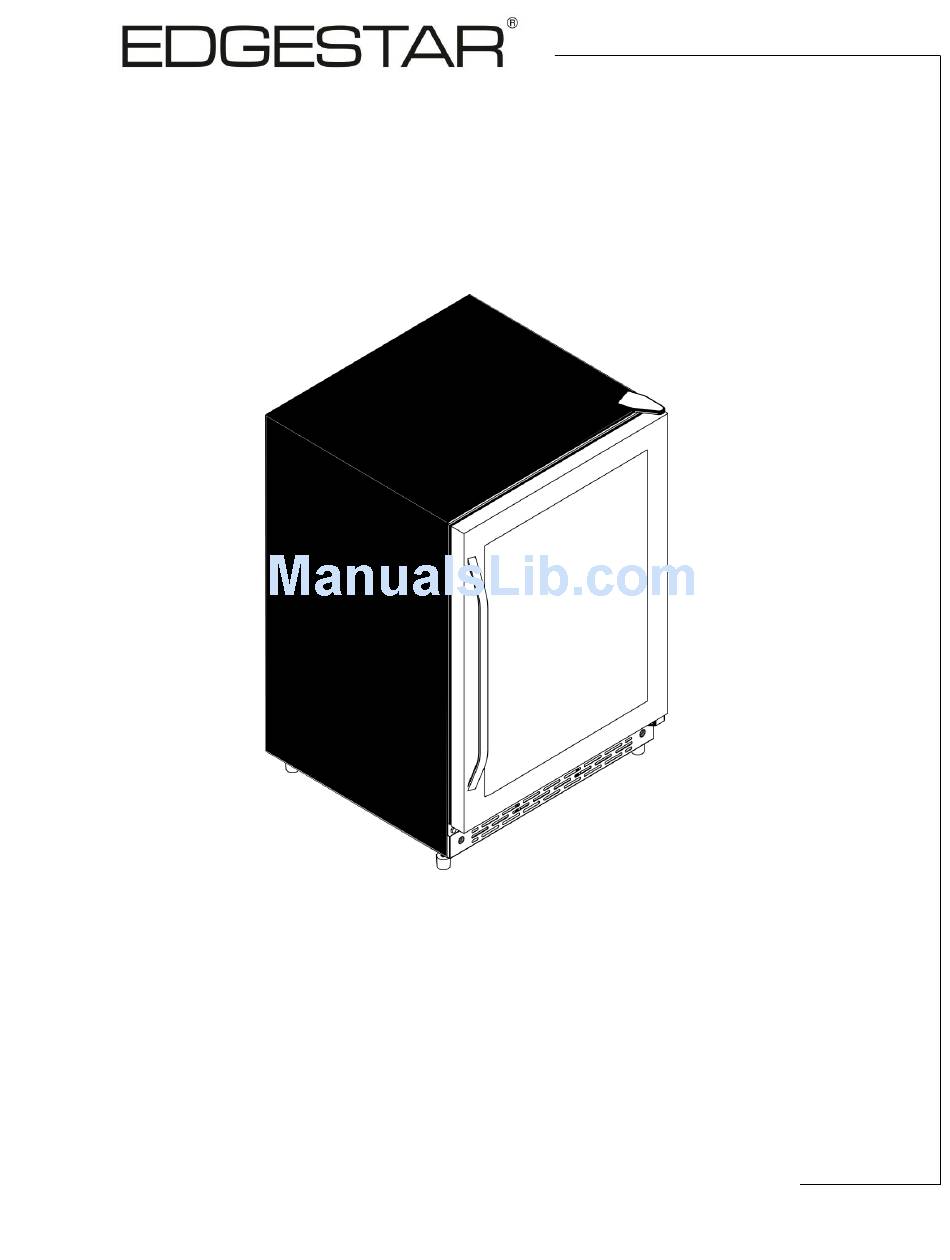

  • Page 1 Built-in Wine and Beverage Cooler CWB7016DZ Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
  • Page 2: Important Safety Information

    Important Safety Information Improper handling can cause serious damage to the EdgeStar wine and beverage cooler and/or injury to the user. This wine and beverage cooler is designed for domestic indoor use only. Do not use the unit for industrial or commercial use.
  • Page 3: Table Of Contents

    This owner’s manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your wine and beverage cooler for the latest technical information. EdgeStar Wine and Beverage Cooler...
  • Page 4: Introduction

    Introduction Thank you for purchasing this EdgeStar wine and beverage cooler. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship.
  • Page 5: Parts Identification

    Door Handle Front Vent Lock Leveling foot Back View Product Label Tip: Gather the model and serial number from the product label and write them down before installing the wine and beverage cooler. Power Plug Cabinet EdgeStar Wine and Beverage Cooler...
  • Page 6: Installing The Wine And Beverage Cooler

    Installing the Wine and Beverage Cooler The wine and beverage cooler should be installed in accordance with local electrical code requirements. The wine and beverage cooler should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty.
  • Page 7: Installation Clearance Requirements

    See the “Leveling the Wine and the cooler and wall or cabinet. beverage cooler” section. • A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. EdgeStar Wine and Beverage Cooler...
  • Page 8: Electrical Requirements

    Electrical Requirements ELECTRIC SHOCK HAZARD!  Plug into a grounded 3-prong outlet.  Never remove the grounding prong from the plug.  Never use an adapter to bypass the grounding prong.  DO NOT use an extension cord.  Failure to follow these instructions can result in fire, electrical shock, or death.
  • Page 9: Installing And Removing The Shelves

    3. Pull the shelf forward until the notch aligns with the plastic post on each side of the shelf track. 4. Lift the shelf until both notches pass through the posts. 5. Continue to pull the shelf forward until it is completely removed from the inner compartment. EdgeStar Wine and Beverage Cooler...
  • Page 10: Reversing The Door Swing

    Reversing the Door Swing Follow the instructions below to reverse the door swing. IMPORTANT: Before you begin, unplug the wine and beverage cooler. It is recommended that two people perform the steps below. To reverse the door from right swing to left swing: 1.
  • Page 11 13. Reinstall the front vent cover. 14. Hand tighten the stainless steel screw from step 2 to cover the hole in the middle of the top of the door. EdgeStar Wine and Beverage Cooler...
  • Page 12: Operation

    OPERATION Using the Temperature Control Panel Upper Zone Lower Zone Note: The scale of the control panel in this image has been compressed to fit this manual. Each zone is independently controlled by the touchpad controls that are located on the center divider (pictured above). The temperature display can be in Fahrenheit or Celsius.
  • Page 13: Normal Sounds

    CAUTION: Store the unit out of the reach of children. If you have children, pulling on the plug. you may want to take additional precautions such as removing the door to prevent a child from being trapped inside the cooler! EdgeStar Wine and Beverage Cooler...
  • Page 14: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance and long life. Exterior Cleaning The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as 2 tablespoons of baking soda to 1 quart of water.
  • Page 15: Troubleshooting Continued

    The door gasket is dirty. Clean the door gasket. The door will not shut properly. The door gasket is not Make sure the door gasket is properly installed. installed correctly. The shelves are incorrectly Correctly install the shelves. installed. EdgeStar Wine and Beverage Cooler...
  • Page 16: Specifications

    Specifications Description of product Built-in Wine and Beverage Cooler Model CWB7016DZ Voltage/Frequency AC 115V~60Hz Amperage 1.75A Input Power 110W Color Black Cabinet; Stainless Steel Door Storage Capacity 16 wine bottles*, 70 standard 12oz. cans Refrigerant R134a, 3.3 oz. Temperature Range 34 - 65ºF...
  • Page 17 Once an EdgeStar authorized representative has confirmed that your product is defective and eligible for warranty service, the product must be returned to an EdgeStar authorized repair facility. EdgeStar is not responsible for damage resulting from shipper mishandling or improper packaging. Do not return a defective product to the place of purchase.
  • Page 18 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2013 Living Direct, Inc. All rights reserved.
