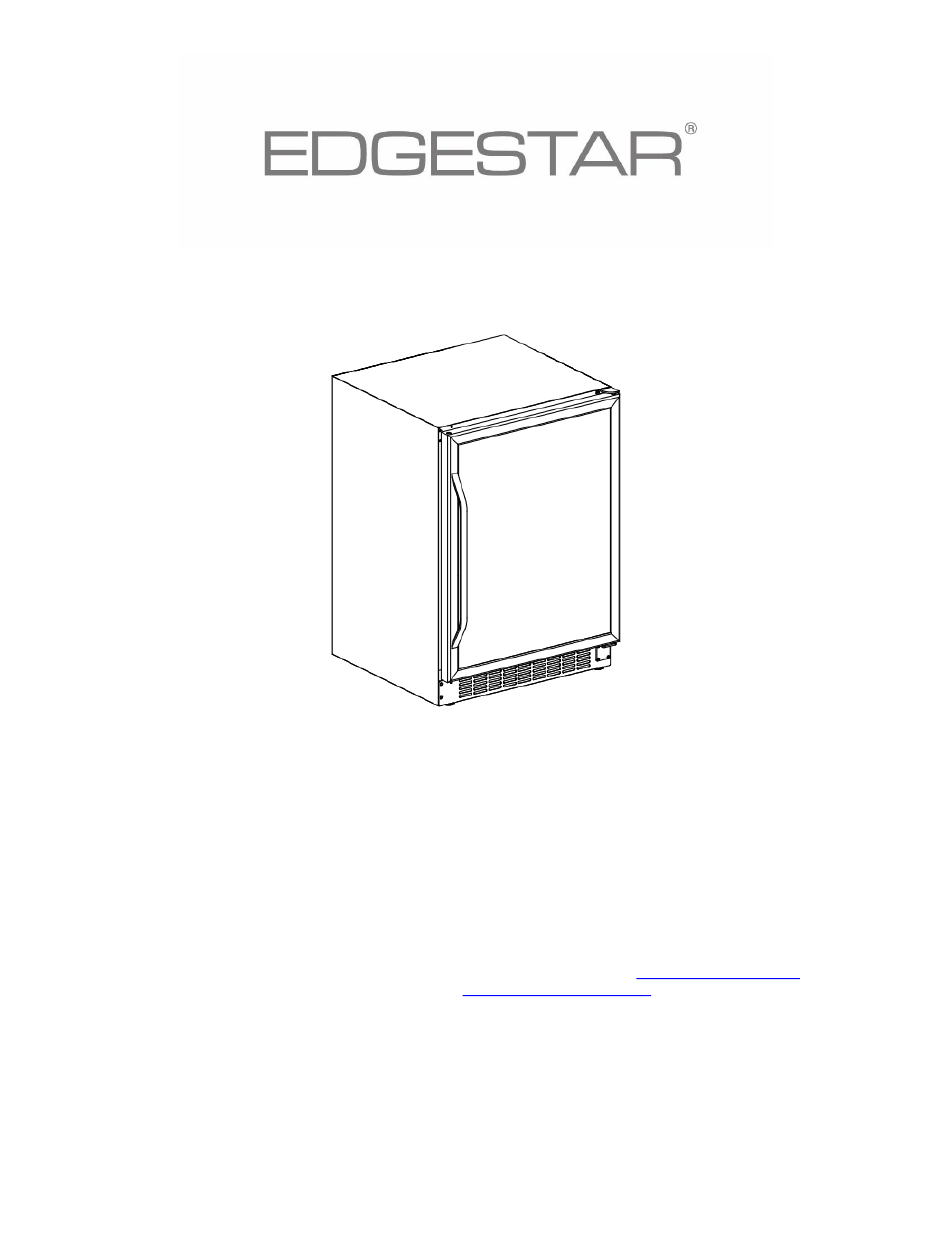

- Page 1 Built-In Wine Refrigerator CWR532SZ Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.0-08092018...
- Page 2 Important Safety Information Improper handling can cause serious damage to the EdgeStar wine refrigerator and / or injury to the user. This wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit.
- Page 3 General Safety To prevent back and other types of injuries, use at least two people to move and install the wine cooler. This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
-
Page 4: Table Of Contents
Temperature Alarm ..............................15 Door Ajar Alarm ................................ 15 ................................15 EFROSTING ....................16 REPARING THE EFRIGERATOR FOR TORAGE CLEANING AND MAINTENANCE .......................... 16 ..............................16 XTERIOR LEANING ..............................16 NTERIOR LEANING TROUBLESHOOTING ............................. 17 SPECIFICATIONS ..............................19 EDGESTAR LIMITED WARRANTY ........................20... -
Page 5: First Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar wine refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Front View Back View... -
Page 7: Carbon Filter
Carbon Filter A built-in carbon filter protects your beverages by acting as a natural barrier against harmful odors. Internal Fan This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature. Note: The Carbon filter should be replaced every 3 - 6 months depending on the unit’s exposure level to odor. -
Page 8: Installing The Wine Refrigerator
Installing the Wine Refrigerator The wine refrigerator should be installed in accordance with local electrical code requirements. The wine refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. -
Page 9: Installation Clearance Requirements
Installation Clearance Requirements Important Notes Choose a location that has ambient temperatures above 50° F and below 95° F. Operation outside these temperatures may result in lowered efficiency or cause other adverse effects. This unit MUST be installed in an area protected from the elements, e.g. wind, rain, water spray or drips. -
Page 10: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter to bypass the grounding prong. DO NOT use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your wine refrigerator into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National... -
Page 11: Installing The Door Handle
Installing the Door Handle To install the door handle: Open the door and carefully pull the door gasket around the area where the handle is to be installed. Carefully remove the two pre-installed decorative plugs from the front of the door. Insert each Phillips head screw through the gasket side of the door until the screw passes through the door. -
Page 12: Reversing The Door Swing
Reversing the Door Swing Follow the instructions below to reverse the door swing. Important: Before you begin, unplug the refrigerator. To Reverse the Door from Right Swing to Left Swing Open the door and use a Philips Screwdriver to remove the bottom screws from the lower hinge. -
Page 13: Removing And Installing Decorative Plugs
Install the lower hinge and bushing on the bottom left support bracket. Carefully insert the door into the upper right corner hinge, then slide the door on top of the lower hinge and secure the door by installing the lower screws. Removing and Installing Decorative Plugs Follow the instructions below to remove the decorative plugs from the door. -
Page 14: Operation
Carefully turn the screwdriver clockwise to remove the two pre-installed decorative plugs from the front of the door. Reinsert the decorative plugs into the right side of the door using this same procedure. Remove the decorative plastic cap from the top left corner of the door and insert it into the top right corner. -
Page 15: Using The Temperature Control Panel
Using the Temperature Control Panel The single zone of this wine refrigerator has a temperature range from 40°F to 65°F and will display the set temperature. Up Button : Press the button on the control panel to increase the temperature by 1 degree increments. -
Page 16: Normal Sounds
32°F (0°C), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after one hour. If one of these situations occurs please reference the troubleshooting section found in this manual or contact EdgeStar for support. Door Ajar Alarm This wine refrigerator includes a door ajar alarm, which will sound if one of the doors is open for more than five (5) minutes. -
Page 17: Preparing The Wine Refrigerator For Storage
Preparing the Wine Refrigerator for Storage If the wine refrigerator will not be used for a long time, or is to be moved to another place, it will be necessary to defrost the unit and dry the interior. Disconnect the wine cooler from the power supply by removing the power plug from the wall socket. -
Page 18: Troubleshooting
Troubleshooting Before Calling for Help If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions... - Page 19 Symptoms Possible Causes Solutions The body of the wine The unit is not grounded Contact your local electrician refrigerator is electrified. properly. to test your electrical grounding system. Frost is forming in the wine The environment is humid. Though the unit uses an “auto-defrost”...
-
Page 20: Specifications
Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the wine refrigerator for the most accurate information. Description of product Built-in Wine Refrigerator Model CWR532SZ Voltage / Frequency AC 115V~60Hz Amperage 1.5 A Input Power... -
Page 21: Edgestar Limited Warranty
WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge.
