Summary of Contents for EdgeStar CWR182SZ

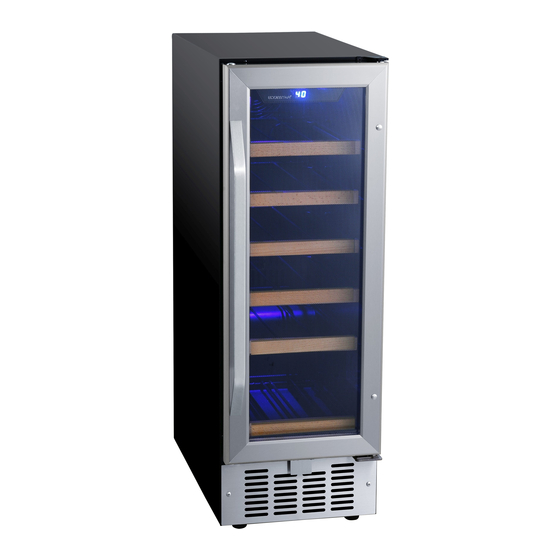

- Page 1 Wine Cooler CWR182SZ Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.0-09132018...
- Page 2 Important Safety Information Improper handling can cause serious damage to the EdgeStar Wine Cooler and / or injury to the user. This Wine Cooler is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit.
- Page 3 General Safety To prevent back and other types of injuries, use at least two people to move and install the wine cooler. This appliance is not intended for use by persons, including children, with reduced physical, sensory or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by the person(s) responsible for their safety.
-
Page 4: Table Of Contents
Temperature Alarm ..............................16 Door Ajar Alarm ................................ 16 ................................17 EFROSTING ......................17 REPARING THE OOLER FOR TORAGE CLEANING AND MAINTENANCE .......................... 18 ..............................18 XTERIOR LEANING ..............................18 NTERIOR LEANING TROUBLESHOOTING ............................. 19 SPECIFICATIONS ..............................21 EDGESTAR LIMITED WARRANTY ........................22... -
Page 5: First Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this EdgeStar Wine Cooler. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Front View Back View... -
Page 7: Carbon Filter
Carbon Filter A built-in carbon filter protects your beverages by acting as a natural barrier against harmful odors. Internal Fan This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature. Note: The Carbon filter should be replaced every 3 - 6 months depending on the unit’s exposure level to odor. -
Page 8: Installing The Wine Cooler
Installing the Wine Cooler The Wine Cooler should be installed in accordance with local electrical code requirements. The Wine Cooler should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. -
Page 9: Installation Clearance Requirements
Installation Clearance Requirements Important Notes Choose a location that has ambient temperatures above 50° F and below 95° F. Operation outside these temperatures may result in lowered efficiency or cause other adverse effects. This unit MUST be installed in an area protected from the elements, e.g. wind, rain, water spray or drips. - Page 10 The Wine Cooler should be installed on a firm and level surface that will be able to support the entire weight of a fully loaded unit. It is important for the Wine Cooler to be level in order to work properly. If needed, you can adjust the height of the Wine Cooler by rotating the feet.
-
Page 11: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter to bypass the grounding prong. DO NOT use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your Wine Cooler into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National... -
Page 12: Installing The Door Handle
Installing the Door Handle To install the door handle: Open the door and carefully pull the door gasket around the area where the handle is to be installed. Carefully remove the two pre-installed decorative plugs from the front of the door. Insert each Phillips head screw through the gasket side of the door until the screw passes through the door. -
Page 13: Reversing The Door Swing
Reversing the Door Swing Follow the instructions below to reverse the door swing. Important: Before you begin, unplug the refrigerator. To Reverse the Door from Right Swing to Left Swing Open the door and using a Phillips screwdriver, remove the two bottom screws from the lower hinge. -
Page 14: Removing And Installing Decorative Plugs
4b. Remove the door axis (1), Switch (2), and Decorative nail (3) from the door. Then to rotate door at 180 degree. Assemble the door axis. Door switch and decorative nail to the relevant place on door. Align the glass door to the designated position making sure that the door shaft enters the door hole at the left upper corner of the glass door. - Page 15 Insert the Flathead screwdriver through the gasket side of the door into the decorative plug slot. You may need to use a flashlight to help guide you through this process. Carefully turn the screwdriver clockwise to remove the two preinstalled decorative plugs from the front of the door.
-
Page 16: Operation
Operation Installation Check List Before Operation Have all packing materials and tape been removed from the interior and exterior of the Wine Cooler? Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the Wine Cooler? Has the machine been leveled? Is the Wine Cooler in a site where the ambient temperature is between 50°... -
Page 17: Normal Sounds
32°F (0°C), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after one hour. If one of these situations occurs please reference the troubleshooting section found in this manual or contact EdgeStar for support. Door Ajar Alarm This Wine Cooler includes a door ajar alarm, which will sound if one of the doors is open for more than five (5) minutes. -
Page 18: Defrosting
Defrosting Note that under most refrigerating settings, the unit will automatically defrost under most ambient conditions. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up. -
Page 19: Cleaning And Maintenance
Cleaning and Maintenance Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Exterior Cleaning The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as 2 tablespoons of baking soda to 1 quart of water. Do not use solvent based or abrasive cleaners. -
Page 20: Troubleshooting
Troubleshooting Before Calling for Help If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions... - Page 21 Symptoms Possible Causes Solutions The body of the Wine Cooler The unit is not grounded Contact your local electrician is electrified. properly. to test your electrical grounding system. Frost is forming in the wine The environment is humid. Though the unit uses an “auto-defrost”...
-
Page 22: Specifications
Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the Wine Cooler for the most accurate information. Description of product Built-in Wine Cooler Model CWR182SZ Voltage / Frequency AC 115V~60Hz Amperage 1.2 A Input Power... -
Page 23: Edgestar Limited Warranty
WHAT IS COVERED: For a period of ONE (1) YEAR from the date of original retail purchase, EdgeStar will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Labor will be performed free of charge at an authorized EdgeStar repair facility and EdgeStar will supply new, rebuilt, or refurbished parts free of charge.
