Denver DMB-106HD Operating Manual

Digital set top box, dvb-t player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
黑 白 印 刷 尺 寸: 130 X 180mm
Digital Set Top Box
Operating Manual
DMB-106HD
DVB-T PLAYER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMB-106HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver DMB-106HD

Summary of Contents for Denver DMB-106HD

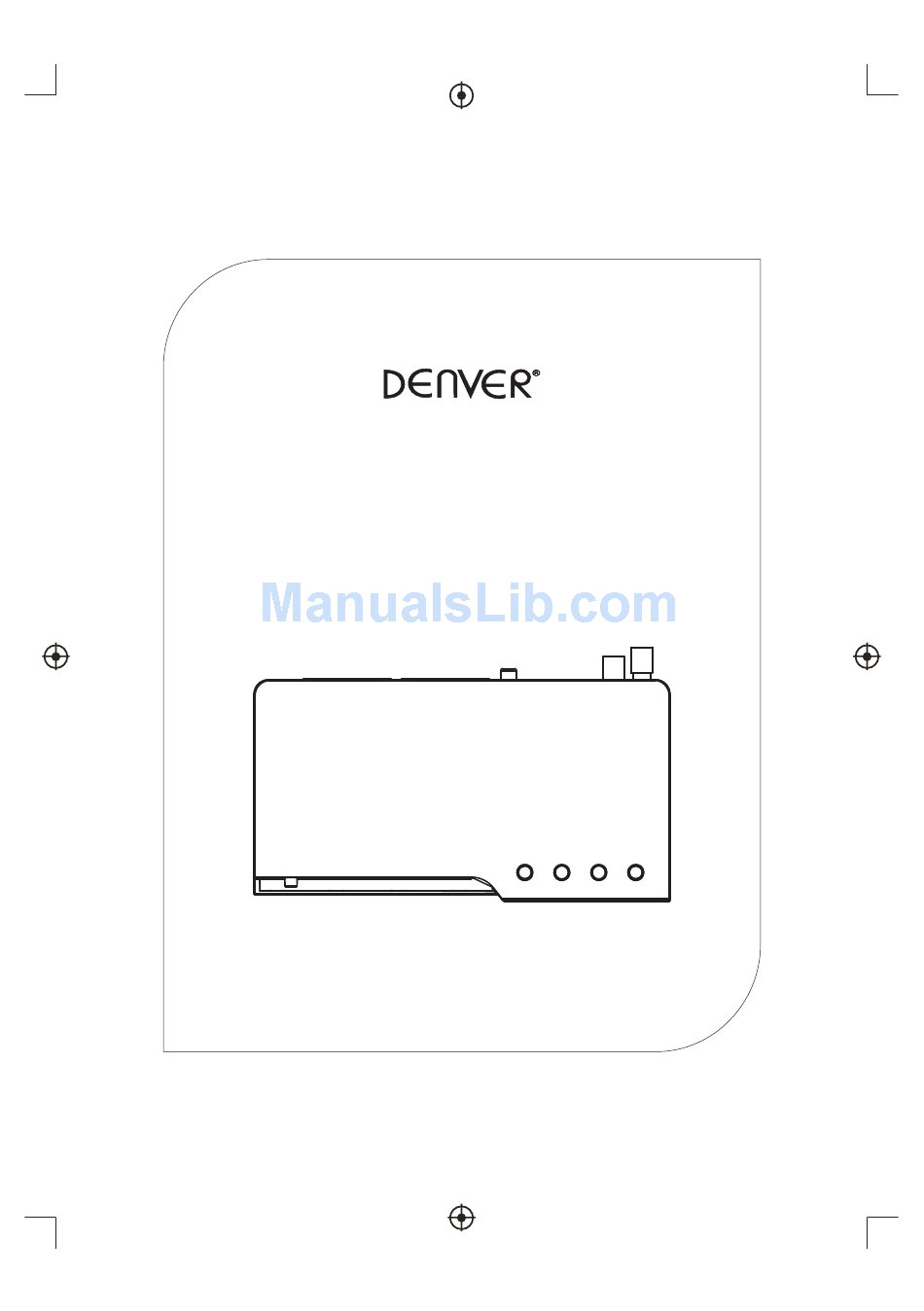

  • Page 1 黑 白 印 刷 尺 寸: 130 X 180mm Digital Set Top Box Operating Manual DMB-106HD DVB-T PLAYER...
  • Page 2 DENVER DMB-106HD THANK YOU FOR BUYING THE DENVER DMB-106HD. 1.WHEN RECORDING TO USB STICK OR EXTERNAL HARDDISC ON THIS MODEL , YOU HAVE TO WAIT A FEW SECONDS BEFORE PUSHING REC. AFTER INS ERTING THE MEDIA. OTHERWISE THE UNIT CAN FREEZE IN THE SIGNAL.

  • Page 3: Safety Instructions

    Safety Instructions Always read the safety instructions carefully Keep this Instruction Manual for future reference Keep this device away from humidity Lay this device on a reliable flat surface before setting it up D o not stand it on soft furnishings The power cable/disconnect device shall remain easy to operate/disconnect.

  • Page 4: Front Panel

    Front Panel 1. Power switch button. 2. PROG-/+、VOL-/+. 3. LED indicator lamp. 4. Remote receive sensor. Rear Panel S P D I F I N - A N T- O U T U S B AC 110~240 V HDMI 50/60 Hz V C R S C A RT T V S C A RT 1.

  • Page 5: Remote Control Unit

    Remote Control Unit MUTE STAN DBY 1)MUTE: Used to turn the sound on or off. 2)STANDBY: Used to switch the set top TV/RA DIO box to on and off. 3)NUMBER KEYS: Used to select channel AUDIO numbers or input numbers in menus. 4)TV/RADIO: Used to switch between TV SU B.T channels and Radio stations.
  • Page 6 Remote Control Unit MUTE STAN DBY 16)STOP: Stops media play. 17)MENU: Used to open the main menu window. TV/RA DIO 18)EXIT: Used to return to the previous screen or menu. AUDIO 19)PROG+/PROG-: To select channels upward or downward , or move upward or SU B.T downward in menu operation.

  • Page 7: Installing The Batteries

    Installing the Batteries Remove the battery cover from the Remote Control and put 2xAAA size batteries inside the compartment. The diagram inside the Battery Compartment shows the correct way to install the batteries. 1.Open the cover 2.Install batteries 3.Close the cover...

  • Page 8: First Time Installation

    First Time Installation After all connections have been made properly, switch on TV and make sure the receiver is connected to the Main Power. Press Power Button to switch receiver on. If you are using the receiver For the first time or restored to Factory Default, the Main Menu will appear on your TV screen.
  • Page 9 TV SYSTEM HD OUTPUT SCREEN RATIO SYSTEM SETUP SCART OUTPUT VIDEO SETTINGS AUDIO SETTINGS INSTALLATION CHANNEL EDIT TV SYSTEM:Select tv color system pal or ntsc. HD OUTPUT:HD TV programe display mode(1080i, 720p, 576p/480p, 576i/480i, auto). SCREEN RATIO: You must set the display format to either 4:3 ,16:9 or Auto to get the maximum display when watching TV.
  • Page 10 TV CHANNEL RADIO CHANNEL SYSTEM SETUP VIDEO SETTINGS AUDIO SETTINGS INSTALLATION CHANNEL EDIT TV CHANNEL and RADIO CHANNEL: To edit your programs prefences(favourite, lock, move or delete), as picture 6 CHANNEL EDIT ADD TO FAV 1 1000 SZTVM01 1001 SZTVM02 SYSTEM SETUP 1002 SZTVM03 VIDEO SETTINGS...
  • Page 11 3.Video recording. - Real-time recording In the normal play mode, Press to enter the recording status. Once video ● recording starts, the upper left crner will display the recording icon. Press STOP key to stop recording. -Scheduled recording. User may set up scheduled recording by setting the data, time and program. Once the scheduled recording time is reached, The player will switch to the scheduled program automatically for recording.

  • Page 12: Troubleshooting

    Troubleshooting Problem Potential Reasons What to do Connect the power Power isn't connected No picture The power switch is not on Switch on the power Screen shows DVB-T cable not connected Plug in the DVB-T cable No Signal Incorrect setting Reset setting No or incorrect connection No sound from...

  • Page 13: Technical Specifications

    Technical Specifications Item Sub Item Parameter 170~230MHz Tuner Input Frequency 470~860MHz -25~-82dBm RF Input level IF Bandwidth 7MHz and 8MHz QPSK,16QAM,64QAM Modulation MPEG4 AVC/H.264 HP@L4 Video Decoder Format MPEG2 MP@ML.HL 576P , 720P, 1080i, 4:3 and 16:9 Output Format HDMI,2XSCART Output Port Decoder Format Audio...
