USER MANUAL
BETJENINGSVEJLEDNING
BRUKSANVISNING
BEDIENUNGSANLEITUNG
t
for digital pay tv and free to air tv channels
usb port with pvr
115CI
cam module and smartcard not included
cam module und smartcard nicht mitgeliefert
cam modul og smartcard er ikke inkl
pvr
record tv programs
to usb stick
ci – common
interface
for pay
tv channels
t
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver DMB-115CI
Summary of Contents for Denver DMB-115CI

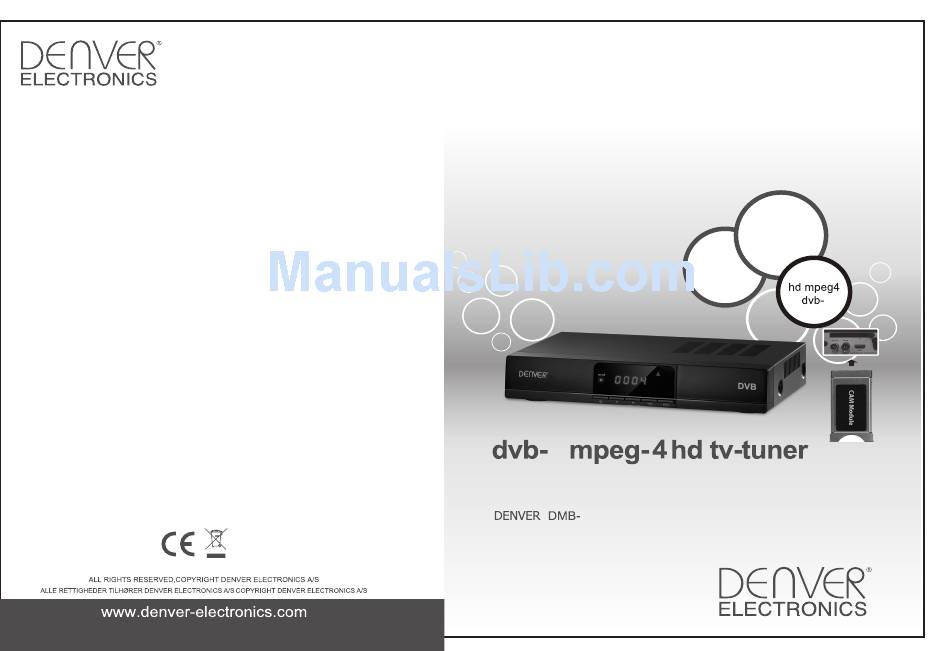

- Page 1 USER MANUAL BETJENINGSVEJLEDNING BRUKSANVISNING BEDIENUNGSANLEITUNG record tv programs to usb stick ci – common interface for pay tv channels for digital pay tv and free to air tv channels usb port with pvr 115CI cam module and smartcard not included cam module und smartcard nicht mitgeliefert cam modul og smartcard er ikke inkl...
- Page 2 Important safety instructions to be kept with the product Please read attentively To prevent fire and electric shock, do not expose this receiver to rain or moisture. In order to avoid any possible risk of electric shock, never attempt to open the unit. In case of breakdown, reparation should be made by qualified technicians.
- Page 3 - The plug must remain readily accessible after the installation of the product. Welcome Section Congratulations on choosing to buy a DENVER product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufactory.
-
Page 4: Table Of Contents
Contents 1. Installation of STB ......................6 1.1 Front Panel........................6 1.2 Rear Panel ........................6 1.3 Connection ........................7 1.3.1 Connecting to cable signal....................8 1.3.2 Connecting to TV ......................... 8 1.3.3 Connecting to Digital Audio Amplifier................... 8 2. IR............................9 2.1 Remote...........................9 3. Basic functions ........................10 3.1 First Installation ......................10 3.2 Volume adjustment and Mute ..................10 3.3 TV/RADIO programs switch..................10... - Page 5 Favorite List........................13 6. Preference Setting ......................13 OSD Language ......................13 OSD Timeout......................13 Time On OSD......................13 Preferred Subtitle .......................13 Hard Hearing ......................13 Preferred Audio ......................14 Multimedia ........................14 PVR Config.........................14 7. System Setting .........................15 7.1 Timers ..........................15 7.2 Child Lock ........................15 7.3 Date Time........................15 7.4 Common Interface .......................15 7.5 Factory Reset.......................16 7.6 Upgrade ........................16...
- Page 6 10.3.1 Photo file browser ......................19 10.3.2 Photo playback ......................19 10.3.3 Photo thumbnail ......................20 10.4 NATIVE32 GAME.......................20 10.5 RECORDER MANAGER ...................20 10.5.1 Recorder manager browser ..................20 10.6 DISK MANAGER .......................21 10.6.1 Disk manager browser ....................21 10.6.2 Move/Copy........................21 10.7 E-Book ........................21 10.7.1 E-Book browser ......................
-
Page 7: Installation Of Stb
1. Installation of STB 1.1 Front Panel : Switch between Standby mode and active mode. 2 P- : Channel -,Move cursor down 3 P+ : Channel +,Move cursor up 4 VOL- : Volume -,Move cursor left 5 VOL+ : Volume +,Move cursor right 6 On/off: Power lamp, red color in Standby mode, green color in active mode 7 IR : Receives the remote control signal... -
Page 8: Connection
4.TV SCART Connector Use this connector to connect your receiver to your video recorder using a SCART cable. Your video signal will now be looped through your receiver to your TV set. 5. SCART VCR Connect the external video input 6. -
Page 9: Connecting To Cable Signal
1.3.1 Connecting to cable signal To receive the broadcast signal, the cable signal should be connected to the CABLE IN connector at the back of the receiver. 1.3.2 Connecting to TV 1. Connect the scart connectors at the back of the receiver to the scart connectors on your TV set. -
Page 10: Remote
2. IR 2.1 Remote 1. STANDBY switch of power supply 2. RECALL return to upper menu or previous program palyed. 3. AUDIO audio switch and left/right channel 4. MUTE mute control 5. TV/RADIO TV/RADIO switch 6. FAV enter channel/Fav list 7. -
Page 11: Basic Functions
3. Basic functions 3.1 First Installation First installation shall setup some important configures. User can select OSD Language,Country,Time Zone,Active Antenna,Day Light Saving and LCN from this menu,when it is set completely,User can use “Start Search”to search channels 3.2 Volume adjustment and Mute 1. -
Page 12: Audio Language Switch And L/R Channel Switch
3.8 Audio language switch and L/R channel switch Press “AUDIO” key to switch the language of sound of current programs and switch among “stereo” “left” “right”(stereo left channel right channel). 3.9 Electronic programs guide (EPG) 1. You can press key “EPG” on the remote controller to enter into the EPG page to know more about the programs to be played. -
Page 13: Installation
4. Installation Please input its password (0000) when entering into installation menu each time. Auto Search Auto search will scan all frequency and all programs based on your country setting. Manual Search Manual Search is for someone who know about how to select the exact frequency to scan. Channel Filter All channels or only unencrypted channels are set to be searched by selective settings. -
Page 14: Channel
5. Channel Channel Manager Channel manager page includes channel deleting, moving, locking and rename. Favorite List 1. As shown in the figure below via “Main menu->channel-> Favorite list” 2. User can set channel favorite list. 6. Preference Setting OSD Language User can select OSD language Preferred Subtitle User can set 1... -
Page 15: Preferred Audio
Preferred Audio User can set 1 and 2 Preferred audio language. Multimedia User can setting for media player. PVR Config It contains six options as fallow PVR File Format Either of options, TS/PS File Size Any of options, 4G/3G/2G/1G, can be selected to set the size of the file to be recorded Timeshift Any of options, AUTO/OFF/ PAUSE, if AUTO is selected, timeshift operation will perform automatically on the background, if OFF is selected, timesshift operation will stop;... -
Page 16: System Setting
7. System Setting 7.1 Timers 10 timers are supported. Setting for timer: Date Specifies the timer date Program Name Specifies the channel for which the timer is set Start time Specifies the start time of the timer End time Specifies the end time of the timer,be used in Recorder Type Duration Specifies the duration time of the timer be used in Recorder Type Mode Specifies the frequency of the timer. -
Page 17: Factory Reset
7.5 Factory Reset There will be Reset to default when this option be selected. The system will hint to input “0000”; to set factory Reset 7.6 Upgrade Software Upgrade 7.7 Version Information about the stb 7.8 Auto Standby the STB preset to automatically switch from active mode into standby if 3 hours no interaction and/or channel change from user,with alert message 2 minutes before going into standby.User can choose OFF (turn off this function) or other hours. -
Page 18: Spdif
8.5 SPDIF Used to select AVC mode –Mute,PCM and Bitstream 8.6 Aspect Ratio Aspect Ratio can be set as 16: 9, 4: 3PanScan, 4: 3LetterBox 16:9 PanScan 8.7 Video Output Video Output can be set as RGB, CVBS 8.8 Video Resolution Video Resolution can be set as 480p_60,480i_30,576p_50,576i_25, 720p-60, 720p_50, 1080i_30, 1080i_25, 1080p_60, 1080p_50 8.9 HDMI Color Space... -
Page 19: Movie Playback
10.1.2 Movie playback Key Stroke Action KEY_PREV Shall stop this movie and play the previous movie in the list. KEY_NEXT Shall stop this movie and play the next movie in the list. KEY_PLAY play movie and show play icon. KEY_PAUSE If the movie is playing, then this will pause and show pause icon KEY_STOP Stop the movie and show the layout... -
Page 20: Photo
Key Stroke Action KEY_PREV play the previous music KEY_NEXT play the next music KEY_PLAY play current music KEY_PAUSE pause music KEY_STOP stop the music KEY_FWD fast forward the music KEY_REV fast reverse the music the highlight shall change to the corresponding item according KEY_NUM to the input number. -
Page 21: Photo Thumbnail
KEY_PAUSE Slide show was paused if press the key KEY_PL Slide show was start to play if press the key KEY_RED Switch to Zoom function,you can press KEY_REV and KEY_FWD to zoom in and zoom outt 10.3.3 Photo thumbnail The thumbnail view of the photos. 10.4 NATIVE32 GAME Supported file formats are native32. -
Page 22: Disk Manager
KEY_ENTER press the key will play the selected recorded program press KEY_RECALL shall return from file list to the filter KEY_RECALL selection mode KEY_RED press it will delete the selected item KEY_GREEN press it will rename the selected item. KEY_YELLOW press it will show list files of type KEY_BLUE delete all... -
Page 23: Troubleshooting
12. Troubleshooting There may be various reasons for the abnormal operation of the receiver. Check the receiver according to the procedures shown below. If the receiver does not work properly after checking it, please contact the dealer. Don’t open the receiver cover. This may cause a dangerous situation. Symptom Cause Remedy... - Page 24 Additional information is available at the technical department of your city. ALL RIGHTS RESERVED: COPYRIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
