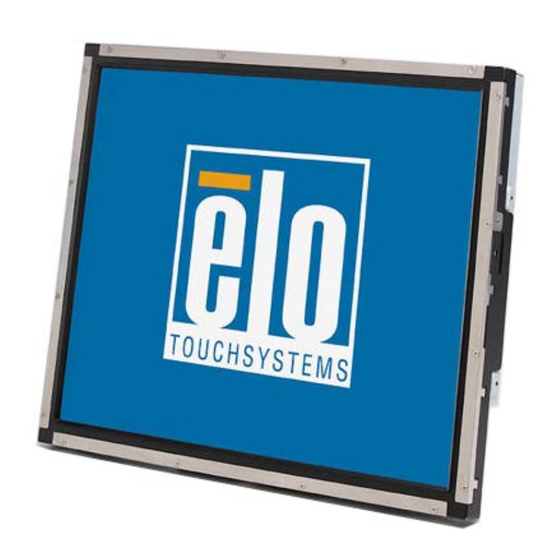

17” lcd rear-mount touchmonitor
Hide thumbs Also See for 1739L:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Touchmonitor User Guide
1739L 17" LCD Rear-Mount Touchmonitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1739L and is the answer not in the manual?

Questions and answers

Related Manuals for Elo TouchSystems 1739L

Summary of Contents for Elo TouchSystems 1739L

  • Page 1 Touchmonitor User Guide 1739L 17” LCD Rear-Mount Touchmonitor...

  • Page 2: User Guide

    Elo TouchSystems 1739L 17” LCD Touchmonitor Optional Power Brick User Guide Revision A P/N E220169 Elo TouchSystems 1-800-ELOTOUCH www.elotouch.com...

  • Page 3: Trademark Acknowledgments

    Copyright © 2009 Tyco Electronics. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo TouchSystems.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Appendix C Introduction Touchmonitor Specifications ........29 Product Description ........... 7 17" LCD Touchmonitor (1739L) Dimensions .... 30 Precautions ..............7 About the Product ............8 Regulatory Information Chapter 2 Warranty Installation and Setup Unpacking Your Touchmonitor ........9 Interface Connection ..........

  • Page 5: Introduction

    C H A P T E R NTRODUCTION Product Description Your new touchmonitor combines the reliable performance of touch technology with the latest advances in (LCD) display design. This combination of features creates a natural flow of informa- tion between a user and your touchmonitor. This LCD monitor incorporates a 17”...

  • Page 6: About The Product

    About the Product Your LCD rear-mount touchmonitor is a 17” SXGA TFT color display with the following features: • The internal microprocessor digitally controls auto-scanning for horizontal scan frequencies between 31.5 KHz and 80 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision-of a fixed frequency.

  • Page 7: Installation And Setup

    C H A P T E R NSTALLATION AND ETUP This chapter discusses how to install your LCD touchmonitor and how to install the driver software. Unpacking Your Touchmonitor Check that the following 7 items are present and in good condition: LCD monitor Video cable USB cable...

  • Page 8: Interface Connection

    Interface Connection Before connecting the cables to your touchmonitor and PC, be sure that the computer Note: and touchmonitor are turned off. Adapter Video Cable Serial Cable USB Cable OSD Remote Control Key (option) 1. Connect one end of the power adapter to the monitor and the other end to the connector of the power cord.

  • Page 9: Product Overview

    Product Overview Main Unit Rear View 2-11...

  • Page 10: Installing The Driver Software

    Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Microsoft Windows Vista • Microsoft Windows XP • Microsoft Windows 2000 •...

  • Page 11: Installing The Serial Touch Driver

    Installing the Serial Touch Driver (not applicable to Acoustic Pulse Recognition monitors) Installing the Serial Touch Driver for Windows Vista, Windows XP, Windows 2000, Me, 95/98 and NT 4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install NOTE: the driver.

  • Page 12: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1

    Installing the Serial Touch Driver for MS-DOS and Windows 3.1 You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: 1 Insert the CD-ROM in your computer’s CD-ROM drive.

  • Page 13: Installing The Usb Touch Driver

    Installing the USB Touch Driver Installing the USB Touch Driver for Windows Vista, Windows XP, Windows 2000, Me, 95/98 and NT 4.0 1 Insert the Elo CD-ROM in your computer’s CD-ROM drive. If Windows 98, Windows Me or Windows 2000 starts the Add New Hardware Wizard. 2 Choose Next.
  • Page 14 2-16 User Guide...

  • Page 15: Operation

    C H A P T E R PERATION About Touchmonitor Adjustments Your touchmonitor will not likely require adjustment. Variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display. For best performance, your touchmonitor should be operating in native resolution, that is 1280 x 1024 at 80k-75 Hz.

  • Page 16: Rear Panel Controls

    Rear Panel Controls MENU Control Function 1 Menu/Exit Display/exits the On Screen Display (OSD) menus. 1. Enter contrast of the OSD. 2. Increase value of the adjustment item. 3. Select item clockwise. 1. Enter brightness adjustment. 2. Decrease value of the adjustment item. 3.

  • Page 17: Controls And Adjustment

    Controls and Adjustment On Screen Display (OSD) Menu Functions To Display and Select the OSD Functions: 1 Press the Menu key to activate the OSD menu. 2 Use to move through the menu. Press the Select key, the parameter will be highlighted when selected.

  • Page 18: On Screen Display (Osd) Control Options

    On Screen Display (OSD) Control Options Control Description Contrast Increases or decreases contrast. Brightness Increases or decreases brightness. V-Position Moves the screen up or down. H-Position Moves the screen left or right. Recall Defaults Returns the monitor to its default settings. Press to select 9300, 6500, 5500, 7500 and USER.

  • Page 19: Preset Modes

    Preset Modes To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When no mode is matched, the user can store their preferred modes in the user modes.

  • Page 20: Power Management System

    Power Management System The monitor is equipped with the power management function which automatically reduces the power consumption when not in use. Power Mode Consumption <40W Sleep <4W <2W We recommend switching the monitor off when it is not in use for a long time. Complies to VESA Power Management (DPM) standards.

  • Page 21: Troubleshooting

    C H A P T E R ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond Check that the monitor’s Power Switch is on.

  • Page 22: Appendix A Native Resolution

    A P P E N D I X ATIVE ESOLUTION The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the LCD touchmonitor, the native resolution is 1280 x 1024 for the 17 inch size. In almost all cases, screen images look best when viewed at their native resolution.
  • Page 23 As an example, a SXGA resolution LCD panel has 1280 pixels horizontally by 1024 pixels vertically. Input video is also represented by the same terms. SXGA input video has a format of 1280 pixels horizontally by 1024 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.

  • Page 24: Appendix B Touchmonitor Safety

    A P P E N D I X OUCHMONITOR AFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1 To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case.

  • Page 25: Care And Handling Of Your Touchmonitor

    Care and Handling of Your Touchmonitor The following tips will help keep your touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning.
  • Page 26 A P P E N D I X ECHNICAL PECIFICATIONS C-28 User Guide...

  • Page 27: Touchmonitor Specifications

    Touchmonitor Specifications Model 1739L LCD Display 17” TFT Active Matrix Panel Display Size 337.92(H) x 270.336(V) mm Pixel Pitch 0.264(H) x 0.264(V) mm Display Mode VGA 640 x 350 (70Hz) VGA 720 x 400 (70Hz) VGA 640 x 480 (60 / 72/ 75Hz)

  • Page 28: 17" Lcd Touchmonitor (1739L) Dimensions

    17” LCD Touchmonitor (1739L) Dimensions 30 User Guide...

  • Page 29: Regulatory Information

    EGULATORY NFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 30 interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors. 1) In order to meet emission and immunity requirements, the user must observe the following: a) Use only the provided I/O cables to connect this digital device with any computer. b) To ensure compliance, use only the provided manufacturer’s approved line cord.
  • Page 31 III. Agency Certifications The following certifications have been issued for this monitor: • Argentina S-Mark • Australia C-Tick • Canada CUL • Canada IC • China CCC (Asia models only) • China RoHS (Asia models only) • Germany TUV • Europe CE •...

  • Page 32: Chapter 2 Warranty

    ARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller war- rants to Buyer that the Product shall be free of defects in materials and workmanship. The war- ranty for the touchmonitors and components of the product is regional; please contact your regional office.
  • Page 33 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.

  • Page 34: Product Information

    Check out Elo’s Website! www.elotouch.com Get the latest... • Product information • Specifications • News on upcoming events • Press release • Software drivers • Touchmonitor Newsletter Getting in Touch with Elo To find out more about Elo’s extensive range of touch solutions, visit our Website at www.elotouch.com or simply call the office nearest you: North America Germany...
