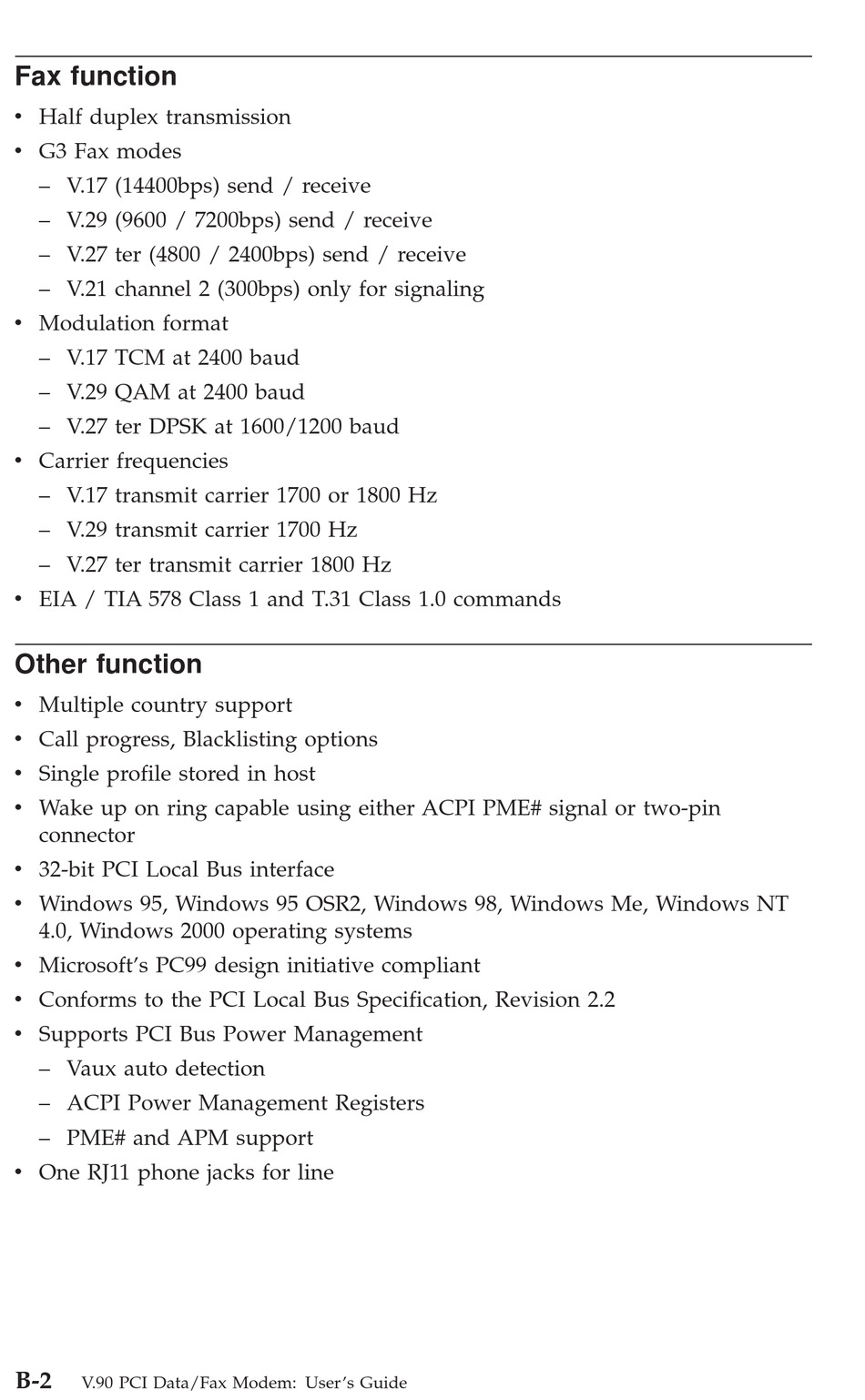

Fax function

v Half duplex transmission
v G3 Fax modes
– V.17 (14400bps) send / receive
– V.29 (9600 / 7200bps) send / receive
– V.27 ter (4800 / 2400bps) send / receive
– V.21 channel 2 (300bps) only for signaling
v Modulation format
– V.17 TCM at 2400 baud
– V.29 QAM at 2400 baud
– V.27 ter DPSK at 1600/1200 baud
v Carrier frequencies
– V.17 transmit carrier 1700 or 1800 Hz
– V.29 transmit carrier 1700 Hz
– V.27 ter transmit carrier 1800 Hz
v EIA / TIA 578 Class 1 and T.31 Class 1.0 commands

Other function

v Multiple country support
v Call progress, Blacklisting options
v Single profile stored in host
v Wake up on ring capable using either ACPI PME# signal or two-pin
connector
v 32-bit PCI Local Bus interface
v Windows 95, Windows 95 OSR2, Windows 98, Windows Me, Windows NT
4.0, Windows 2000 operating systems
v Microsoft's PC99 design initiative compliant
v Conforms to the PCI Local Bus Specification, Revision 2.2
v Supports PCI Bus Power Management
– Vaux auto detection
– ACPI Power Management Registers
– PME# and APM support
v One RJ11 phone jacks for line
