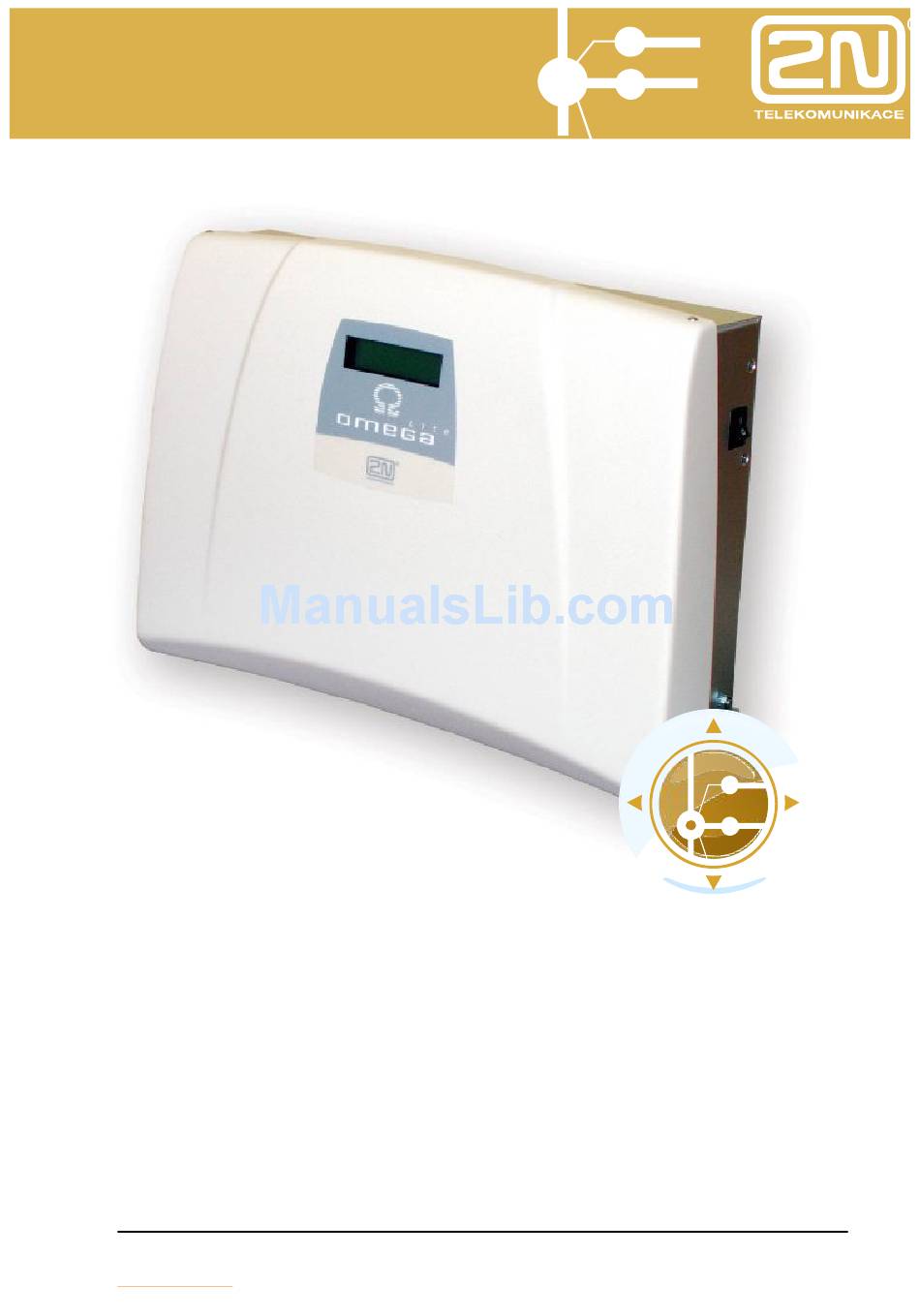

® - OMEGA Lite Ethernet module USER MANUAL Ethernet Module Version 1.2 User Manual – Ethernet Module www.2n.cz...
Page 2
2N OMEGA Lite system. This new product has been developed and produced in order to provide the maximum utility value, quality and reliability to the user. We hope you will be fully satisfied with 2N OMEGA Lite for a long time.
- OMEGA Lite Ethernet module 2. Ethernet Module ® The Ethernet module is designed exclusively for the 2N OMEGA Lite PBXs to provide remote control, connection of external applications (PBX Assistant, SMS server) and LAN and Internet voice services. The Ethernet module is installed to the left of the power supply unit, above the main board.
® - OMEGA Lite Ethernet module 2.1. Ethernet Module The following is located on the Ethernet module: - RJ45 connector - 8/8 for LAN connection; - USB connector for IP configuration; J4,J8 - serial connector for interconnection with the main board;...
® - OMEGA Lite Ethernet module 3. Ethernet Module Installation Unscrew the 2 screws on the chassis to remove the display holder. Remove (by turning) the blind flanges on the left-hand side of the chassis to make space for J1 and J2 connectors.
Page 9
® - OMEGA Lite Ethernet module Remove the J8 and J9 jumpers from the main board. Unscrew the two M3 screws in the left-hand and right-hand main board corners (to be used later) and replace them with the spacers attached.
Page 10
® - OMEGA Lite Ethernet module User Manual – Ethernet Module www.2n.cz...
Page 11
® - OMEGA Lite Ethernet module Insert the two connectors included in the delivery on the J26 and J15 jumpers on the main board. User Manual – Ethernet Module www.2n.cz...
Page 12
® - OMEGA Lite Ethernet module Place the module onto the connectors and fix it with the two screws removed earlier. Place the module onto the connectors carefully to match the pin positions. User Manual – Ethernet Module www.2n.cz...
Page 13
® - OMEGA Lite Ethernet module User Manual – Ethernet Module www.2n.cz...
Page 14
PC. While connecting the system for the first time, remember to install the USB- COM driver (refer to the “data/OMEGA Lite/Cz/Software/VoIP/DriverUSB/” CD attached). A new COM PORT is added after installation. After that you may establish the HyperTerminal connection and perform the necessary settings.
Page 15
® - OMEGA Lite Ethernet module Always reset the module using the SW1 button after disconnecting the USB cable. Connect a standard straight Ethernet cable into the J1 connector. This cable connects the Ethernet module with your Ethernet network. After turning the PBX on you may start configuring the Ethernet module.
® - OMEGA Lite Ethernet module 4. Ethernet Module Configuration ® The 2N - OMEGA PBX Ethernet module has the following factory settings: Serial console communication port: Bits per second: 115200 Data bits: Parity: none Flow control: none Use the same values for the COM port to be created.
® - OMEGA Lite Ethernet module 2) Connect the module with the PC using a crossed Ethernet cable, assign any IP address from the network 192.168.1.x differing from 192.168.1.1 to the PC and assign the required IP address to the module by means of a web browser.
® - OMEGA Lite Ethernet module To select a menu option, enter the option number and push confirmation. 4.1.1. Submenus If you click on an item containing a submenu, the submenu will be displayed. Select any of the submenu items or push for return.
® - OMEGA Lite Ethernet module Network address - up to 12 hexadecimal digits of the physical address. Zeros at the beginning may be omitted. Enter the remote network address: 50C229C4E2 IP address - an Internet address consisting of four numbers (0÷255) separated by dots.
Page 20
® - OMEGA Lite Ethernet module Initiated operations are aborted. The main menu is displayed. User Manual – Ethernet Module www.2n.cz...
® - OMEGA Lite Ethernet module 4.2. Web Browser Access While the serial console interface enables you to change of the basic parameters only, the web browser gives you access to all Ethernet module parameters and services. To establish connection with the module, enter the module IP address into the Internet address line in the web browser, e.g.:...
Page 22
® - OMEGA Lite Ethernet module After a successful login, the basic screen of the web application is displayed. The window is divided into four major parts. Header - contains a pull-down menu for the user session language selection, the name of the currently logged-in user and the user logout button.
® - OMEGA Lite Ethernet module Application form - is the key part of the module user interface. It contains specific control elements for the group menu item selected. 4.2.1. Overview of Group Tags and Menus Network - here you can find all you need for your LAN connection: Basic configuration –...
Page 24
® - OMEGA Lite Ethernet module Devices – common module settings. Fax – fax settings. LCR – LCR rule settings. SIP proxy –SIP Express Router settings (SIP proxy). Administration - here you can find all basic module settings: Basic configuration – common module settings.
Page 25
® - OMEGA Lite Ethernet module Download logs – operation record packing and downloading. User Manual – Ethernet Module www.2n.cz...
® - OMEGA Lite Ethernet module 4.3. Network Parameter Setting Remember to set the module network parameters before you start using it for calling. There are two setting options. If the gateway has factory settings or you know its IP address, you can connect a PC to it using a crossed Ethernet cable and set the appropriate parameters via a web browser.
® - OMEGA Lite Ethernet module DNS 2 – second DNS IP address. Hostname – Ethernet module network name. Domain – domain name. Location – any text describing the module location. This value is published by means of the SNMP.
Page 28
® - OMEGA Lite Ethernet module The form contains the following fields: Enable DHCP – indicates whether the network parameters can be obtained from the DHCP, or have to be entered manually. IP address – module IP address. If the dynamic address assignment by the DHCP is activated, the value may not be changed manually.
To restore the state before form opening, push the Default item. 4.4. Administration ® This chapter describes the setting of general parameters of the 2N - OMEGA Lite Ethernet module and creating of user accounts and right groups. 4.4.1. General Module Parameters Click on the Basic configuration item in the Administration tag to open the page with the general module parameters.
® - OMEGA Lite Ethernet module The form contains the following fields: Confirm remove – select this item to display the confirmation window before any deletion. Enable SIP session progress – select this option to enable the SIP stack to send the session progress messages during call establishing.
Page 31
® - OMEGA Lite Ethernet module The following items are displayed in the table columns: Name – name of the user account. Group – group of rights. Language – language to be used after the user login. Line number – number to be used for line registration.
Page 32
® - OMEGA Lite Ethernet module The form contains the following fields: User name – user account name. It must be unique, contain alphanumeric characters only and respect the Upper/Lower Case. New password – user login password. Dots are displayed instead of characters for safety reasons.
Page 33
® - OMEGA Lite Ethernet module Line number – define the line number under which the IP telephone may be registered to the internal SIP proxy server. Description – any text that describes the meaning of an account. VoiceMail enabled – here enable/disable VoiceMail.
® - OMEGA Lite Ethernet module 4.4.3. Right Groups The right groups are created for simplification as they eliminate the need to specify the user access rights whenever you create a user account. Upon the system login, the resulting set of assigned and denied rights is composed of the assigned right group settings and, if necessary, corrections made during the user account creation.
® - OMEGA Lite Ethernet module The form contains the following fields: Group name – unique identification. Rights – system parts to be made accessible. Rights denied – system parts to be made inaccessible. Description – any text describing the meaning of a group.
You can add and modify the VoIP lines (SIP, H.323 and DISA). To set a line type, select the appropriate Devices menu item. ® Be sure to establish one SIP or H.323 line at least to make your 2N OMEGA Lite Ethernet module work properly. 4.5.1. SIP...
® - OMEGA Lite Ethernet module The following items are displayed in the table columns: Line ID – internal line identification used by the module firmware. Click on the number to display the line detail. SIP server – IP address of the SIP proxy to which the line is being registered.
Page 38
® - OMEGA Lite Ethernet module The form contains the following fields: SIP server address – IP address or fully qualified network name of the SIP proxy to which the line is to be registered. SIP name – line calling number.
® - OMEGA Lite Ethernet module User name – line identification for the SIP proxy registration. Password – authentication password for the SIP proxy registration. Dots are displayed instead of characters for security reasons. Codecs – list of codecs to be provided by the gateway during voice channel negotiation.
® - OMEGA Lite Ethernet module symbol is used for clearing a line. To clear a line, you can also tick off the checkbox in the last column of the table and click on Remove selected item. There is an Add H.323 line icon below the table .
Page 41
® - OMEGA Lite Ethernet module The form contains the following fields: Call method – call initiation method. There are three options: 1) Direct – enter the fully qualified network name of the called person, 2) Gatekeeper – a selected Gatekeeper finds the relevant path and establishes the connection;...
Page 42
® - OMEGA Lite Ethernet module Gatekeeper finding method – determines how to find an available Gatekeeper. Either enter a static address or search the network for the address. Gatekeeper IP address – here enter the Gatekeeper IP address if the Gatekeeper address is not network-searched.
® - OMEGA Lite Ethernet module 4.6. Least Cost Router This section deals with the purpose and operation of the gateway cost saving machine - the Least Cost Router (LCR). Let us explain how it works and can be configured.
® - OMEGA Lite Ethernet module Check for barred numbers - the Barred numbers table is searched for match after normalising and before transfer to the successfully found output line, and, if a match is found, the call is rejected.
Page 45
® - OMEGA Lite Ethernet module The first step is to define the destination. Basically, the destination is a set of prefixes. Looking for the appropriate routing rule, the LCR searches the allowed routing rules from top to bottom for a match of the normalised called number prefix and the destination number prefix.
® - OMEGA Lite Ethernet module Description – any text describing the meaning of a destination. Push the Default button to restore the values available in the instant of form opening. Click on the Close key to close the guide window. Push Next to proceed to the second part of creation.
Page 47
® - OMEGA Lite Ethernet module All the LCR changes influence the gateway behaviour the moment they are executed. Therefore, it is unnecessary to restart the whole system. User Manual – Ethernet Module www.2n.cz...
® - OMEGA Lite Ethernet module 4.6.4. Remove Rule Tick off the checkbox in the second column of the respective row and push the Remove button to delete a routing rule. 4.6.5. Change Sequence The rule sequence changing procedure is similar to that of the rule removal.
® - OMEGA Lite Ethernet module 4.7.1. List of Routes Click on the Routes item in the Least Cost Router submenu to display a list of routes. 4.7.2. Add Route Click on the Add icon to add a route. A form gets displayed in the browser for you to complete the following data: User Manual –...
Page 50
® - OMEGA Lite Ethernet module Route name – The route name may contain any alphanumerical characters. The LCR rules refer to this name as mentioned in the section above. Route lines – a list of available lines that form a route. Click on the respective item with the left-hand mouse button to select/remove a line.
® - OMEGA Lite Ethernet module 4.7.3. Modify Route Click on the symbol of the respective route to display a route setup modifying guide, which is similar to that introduced above. The only difference is that the Add key is replaced with the Modify key 4.7.4.
Page 52
® - OMEGA Lite Ethernet module To delete a normalising rule, click on the symbol. To delete all rules, select them by checking the last table column and click on Remove selected items below the table. There is an Add LCR normalising icon below the table. Click on it to display the rule defining form.
® - OMEGA Lite Ethernet module 4.9. LCR Barred Numbers The Barred numbers table (Blacklist) is searched for match after output normalising and before call forwarding to the successfully found output line. If the normalised number starts with a string included in the table, the call is rejected.
Page 54
® - OMEGA Lite Ethernet module caller's and called numbers and click on the LCR test or Repeat LCR test icon located below the form to initiate the LCR process simulation. After simulation, the normalised calling and called numbers plus the name of the successfully found output line, or the reason why the line search was unsuccessful are displayed.
® The 2N - OMEGA Lite Ethernet module is delivered with an integrated SIP proxy, which is able to work as a private branch exchange for SIP telephones. It is easy to configure; all you have to do is fill in the routing table.
Page 56
® - OMEGA Lite Ethernet module To delete a routing rule, use the symbol. Or, tick off the last table column checkbox and click on Remove selected items There is an Add rule icon below the table. Click on it to display the rule defining form.
Page 57
® - OMEGA Lite Ethernet module Perform action – there are six possible call actions in the pop-up menu but, basically, three of them are applied only – call rejection, forwarding and interconnection within SIP proxy registrations. Nevertheless, let us mention all of them for completeness: 1) Reject –...
® - OMEGA Lite Ethernet module 4.11.1. Overview of Registrations Use the module web interface to see which units have been registered to the SIP proxy. To do this, click on the Registration item in the SIP proxy menu in the Telephony services tag.
Ethernet module 4.12. Licence File ® The licence file is used for activating the services provided by the 2N OMEGA Lite Ethernet module. A brand new module provides 800 hours of operation without the licence file. Before uploading, save the licence file on your PC hard disk and remember the path to it.
- OMEGA Lite Ethernet module 4.13. Firmware Updating ® The firmware updating function helps you update the 2N OMEGA Lite Ethernet module firmware. Be sure to use the firmware supplied by the module producer or the producer’s technical support department only.
® - OMEGA Lite Ethernet module 4.14. Configuration Downloading You can download any configuration from the Ethernet module and save it into a file. To do this, click on the Configuration backup/Download config item in the Administration tag. The configuration downloading dialogue will be displayed.
® - OMEGA Lite Ethernet module 4.15. Configuration Uploading You can upload the saved configuration into the Ethernet module. To do this, click on the Configuration backup/Upload config item in the Administration tag. The configuration uploading dialogue will be displayed.
5. Ethernet Module Parameter Setting by PBX Configuring Tool ® The 2N - OMEGA Lite PBX has to be equipped with the firmware version 4.02REV11 or later for the Ethernet module to work properly. If not, upgrade your PBX. 5.1. 2N® - OMEGA PBX Firmware Upgrade The proper firmware upgrading procedure is as follows: 1.
Page 64
® - OMEGA Lite Ethernet module User Manual – Ethernet Module www.2n.cz...
® - OMEGA Lite Ethernet module 5.3. VoIP Line Setting Use the External lines/Digital line types/VoIP in the PBX configuration tool for setting the VoIP line. Set the following: Name – line name of up to 14 characters. Without authoris. – no authorisation check is performed on this line.
® - OMEGA Lite Ethernet module The VoIP lines have to be bundled (trunked) for outgoing calls. In the factory setting, the VoIP lines are automatically included in trunk 6 and all internal lines may seize the trunk using the Seizure of external line trunk (dialling 86).
6.1. 2N XAPI Server Console ® The XAPI Server Console is designed for 2N XAPI server administration. It helps you create application users (clients), add licences, download accounting and system data, set the input number normalising for the running user applications, and so on.
Page 68
® - OMEGA Lite Ethernet module Select the XAPI Server Console and enable installation: Push Yes: Push Next: User Manual – Ethernet Module www.2n.cz...
Page 69
® - OMEGA Lite Ethernet module Select the target directory and complete installation. User Manual – Ethernet Module www.2n.cz...
Page 70
® - OMEGA Lite Ethernet module User Manual – Ethernet Module www.2n.cz...
® IP address – IP address of the running 2N XAPI server (Ethernet module in this case). Host – name of the running 2N XAPI server PC (LocalHost), entered instead of the IP address. ® Port – 2N XAPI server communication port. The default value is 6800 and there is no need to change it.
Page 72
® - OMEGA Lite Ethernet module If the IP address setting is incorrect, active XAPI servers are searched for automatically within the LAN and you can select the IP address of the required connection directly. Push Open to open connection.
® - OMEGA Lite Ethernet module 6.1.3. Connection Establishing ® Having set up communication, try to establish connection with the 2N XAPI server. ® Push Connect . If the 2N XAPI server is active, all the other buttons will become active. You need not push the Connect button if you have opened connection using the automatic XAPI server search.
PBX module. A window gets displayed providing information on the PBX connected. It ® includes the PBX serial number, PBX firmware type, available boards, 2N XAPI server ID (one of the XAPI server licence adding options). User Manual – Ethernet Module...
Page 75
® - OMEGA Lite Ethernet module Push Setup to set the PBX module parameters. 6.1.5.1. Trace Enable/set the following: Trace – enable the creation of the PBX module LOG communication. Erase trace at start – enable the deletion of the PBX module LOG communication upon the XAPI server start.
Page 76
® - OMEGA Lite Ethernet module This menu helps you normalise received/called numbers to/from the current applications (PBX Assistant, TAPI driver, etc.). Remember to set this parameter to prevent dialling unsupported local and international calls to some outgoing connection types (ISDN, e.g.).
® - OMEGA Lite Ethernet module 6.1.6. User Module Push USR Module to enter the User module. The User module is designed for creation of application users (clients) and displays the current connections. Meanings of USR parameters: Handle – number of the currently active connection.
Page 78
® - OMEGA Lite Ethernet module Enter the following: Name – user name. Password – user login password. Rights – user rights (the user rights included in the application licence may only be assigned). Line – line used by the currently active connection.
Page 79
® - OMEGA Lite Ethernet module 6.1.6.3. User Module Setting Push Setup to set the User module parameters. Trace Enable/set the following: Trace – enable the creation of the User module LOG communication. Erase trace at start – enable the deletion of the User module LOG communication upon the XAPI server start.
® - OMEGA Lite Ethernet module 6.1.7. Licence Module Push Licence Module to enter the Licence module. The Licence module is designed for adding and monitoring of application licences. Meanings of Licence module parameters: Type – licence type. Way – ADD is used as a rule.
Page 81
® - OMEGA Lite Ethernet module Enter the following: Id – first licence part. Key – second licence part. Push OK to add the licence. A licence is granted by the manufacturer with the following data: PBX serial number – information on the PBX;...
Page 82
® - OMEGA Lite Ethernet module Trace Enable/set the following: Trace – enable the creation of the Licence module LOG communication. Erase trace at start – enable the deletion of the Licence module LOG communication upon the XAPI server start.
® - OMEGA Lite Ethernet module 6.1.8. Database Module Push Database Module to enter the Database module. The database module is designed for monitoring and saving of accounting and system data. 6.1.8.1. Database Module Setting Push Setup to set the Database module parameters.
Page 84
® - OMEGA Lite Ethernet module Trace – enable the creation of the Database module LOG communication. Erase trace at start – enable the deletion of the Database module LOG communication upon the XAPI server start. File size limit – limit the LOG file size (*.trc). When the limit is exceeded, the oldest data are overwritten.
® - OMEGA Lite Ethernet module 6.1.9. XML Module Push XML Module to enter the XML module. The XML module is designed for monitoring of XML communication with the open applications. 6.1.9.1. XML Module Setting Push Setup to set the XML module parameters.
Page 86
® - OMEGA Lite Ethernet module Enable/set the following: Trace – enable the creation of the XML module LOG communication. Erase trace at start – enable the deletion of the XML module LOG communication upon the XAPI server start. File size limit – limit the LOG file size (*.trc). When the limit is exceeded, the oldest data are overwritten.
Page 87
® - OMEGA Lite Ethernet module The manufacturer reserves the right to make such modifications in the documentation that will result in improvement of the product qualities. Use the product in compliance with the Instructions for Use and for the purposes mentioned therein only.
Page 88
® - OMEGA Lite Ethernet module User Manual – Ethernet Module www.2n.cz...
