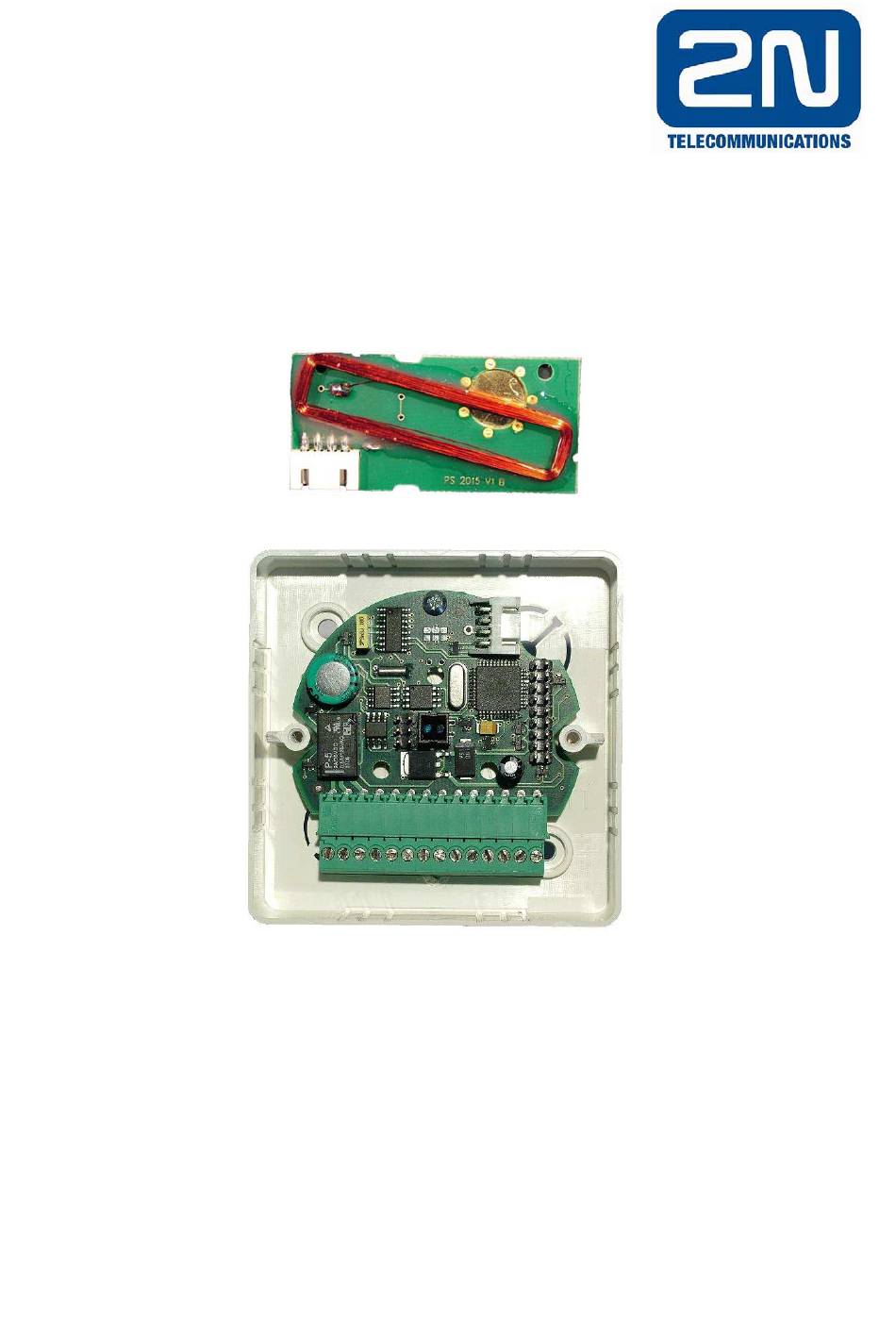

- Page 1 ® NTRYCOM SET MINI Order No. 91341611WE User and service manual Version 2.1...
- Page 2 ® APS mini - Products Assortment 91341611WE 9134162WE 9134167WE EntryCom Set Standalone reader module Reader module with attendance keypad 91341612WE 91341631E 9134164E Built-in reader module for EntryCom Converter RS485/Ethernet PC mini reader 9134165E 9134166E Chip card Chip key fob...
-
Page 3: Module Characteristics
Introduction Dear customer, congratulation on your purchase of the 2N APS mini EntryCom set. It is our wish that you are fully satisfied with this product for a long time. Because it is a product, which is being constantly improved, any comments and proposals leading to a better product are very welcome. -
Page 4: Technical Parameters
Overview of module’s features in various regimes of operation Function Regime of operation autonomous offline online Definition of access rights using programming cards Signalization of reading a card and releasing the door lock Acoustic signalization of alarm situations Changing the parameters of regimes of operation and alarm regimes Definition of access rights from the PC Visualization of the regime of the reading modu le, recording... -
Page 5: Recommendations For Installation
Recommendations for installation ® Reading module ATEUS - APS mini uses passive RF/ID technology, sensitive to external RF disturbance. This disturbance may come via radiation from the surroundings or via supply cables. Therefore it is necessary to avoid installing modules close to possible sources of electromagnetic field, including for example computer monitors (distance at least 3 cm) and various home and industrial appliances. - Page 6 Description of clips on the mother board Terminal board box Clip Purpose Power supply + 10 ÷ 15 VDC Power supply 0 V (ground) Input 1 Input 2 Alarm output +5V Wiegand DATA 0 Wiegand DATA 1 A conductor of line RS485 B conductor of line RS485 C contact relay NC contact relay...
-
Page 7: Meaning Of Led Indicators
It is possible to connect data line RS485 to the terminal board box of the module. Up to 32 reading modules 2N APS mini can be connected to this data line, which consists of three conductors. Each module within the data bus must be assigned a different address by inserting jumpers on the contacts of X2 connections. - Page 8 “HW Address”). Result of the action is shown by the progress indicator in the second part of the status bar. Modules 2N APS mini in the online regime can be controlled via programs APS mini Administrator, APS mini Events and APS mini ED. These allow, besides programming the parameters of the modules, also setting access rights and monitoring various events (for example arriving and leaving persons) and analyze them.
- Page 9 Setting access rights with programming cards Access rights for the reading modules 2N APS mini can be programmed also without the PC thanks to two programming cards, which are part of the module delivery. Recording cards into the memory Step 1...
- Page 10 2N TELEKOMUNIKACE a.s. Mod anská 621, 143 01 Praha 4, Czech Republic tel.: +420 261 301 111, fax: +420 261 301 999, e-mail: sales@2n.cz www.2n.cz © 2008, 2N TELEKOMUNIKACE a.s. - Praha OV 1350 v.2.1...
