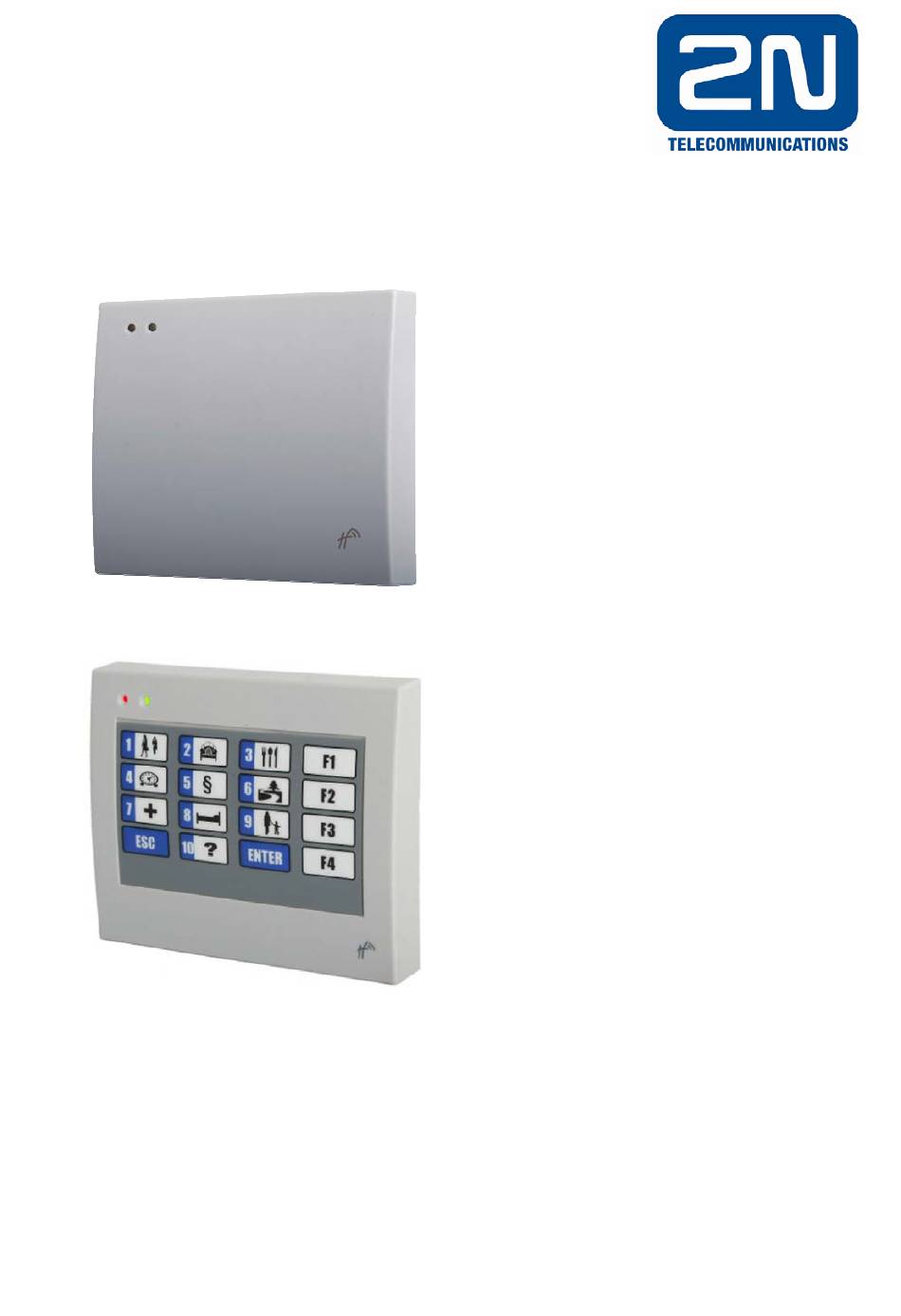

- Page 1 2N APS MINI Standalone Reader Module Order No. 9134162WE Reader Module with Attendance Keypad Order No. 9134167WE User and Service manual Version 2.1...
- Page 2 2N APS mini System Product Range 91341611WE 9134162WE 9134167WE EntryCom set Standalone reader module Reader module with attendance keypad 91341612WE 91341631E 9134164E Build-in reader module for EntryCom RS485/Ethernet converter PC mini reader 9134165E 9134166E Chip card Chip key fob...
-
Page 3: Module Characteristics
Introduction Dear customer, congratulation on your purchase of the 2N APS mini Reader module. It is our wish that you are fully satisfied with this product for a long time. Because it is a new product, which is being constantly improved, any comments and proposals leading to a better product are very welcome. -
Page 4: Technical Parameters
Overview of module’s features in various regimes of operation Regime of operation Function autonomous offline online Definition of access rights using programming cards Signalization of reading a card and releasing the door lock Acoustic signalization of alarm situations Changing the parameters of regimes of operation and alarms Definition of access rights from the PC Visualization of the regime of the reading module, recording events in an archive in the PC, viewing and working with events... -
Page 5: Installation
Installation First drill fastening and cable holes, then insert the flat keypad cable into the reader connector 1 (when it is a keypad version), insert the enclosed square screw nut 2 and fasten the module on the wall. It is recommended to place an installation box for connection of incoming cables on the other side of the wall or in highly secured area (with in/out readers). -
Page 6: Recommendations For Installation
Recommendations for installation Reading module 2N APS mini uses passive RF/ID technology, sensitive to external RF disturbance. This disturbance may come via radiation from the surroundings or via supply cables. Therefore it is necessary to avoid installing modules close to possible sources of electromagnetic field, including for example computer monitors (distance at least 3m) and various home and industrial appliances. - Page 7 Connecting the mother board with data bus RS485 It is possible to connect the data line RS485 to the cables A, B and 0V. Up to 32 reading modules 2N APS mini can be connected to this data line, which consists of three conductors.
- Page 8 Setting the parameters and access rights using the PC The APS mini Reader setup program is designed for operating systems Windows 95, Windows NT 4.0 and higher versions; it does not require installation. It is designed for offline mode readers...
-
Page 9: Setting Operational Parameters
Result of the action is shown by the progress indicator in the second part of the status bar. Modules 2N APS mini in the online regime can be controlled via programs APS mini Administrator, APS mini Events and APS mini ED. These allow, besides programming the parameters of the modules, also setting access rights and monitoring various events (for example arriving and leaving persons) and analyze them. - Page 10 Setting access rights with programming cards Access rights for the reading modules 2N APS mini can be programmed also without the PC thanks to two programming cards, which are part of the module delivery. Recording cards into the memory Step 1...
- Page 11 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Praha 4, Czech Republic tel.: +420 261 301 111, fax: +420 261 301 999, e-mail: sales@2n.cz www.2n.cz © 2008, 2N TELEKOMUNIKACE a.s. - Praha OV 1468 v.2.1...
