2N OMEGA Lite User Manual

Voip module
Hide thumbs Also See for OMEGA Lite:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
®

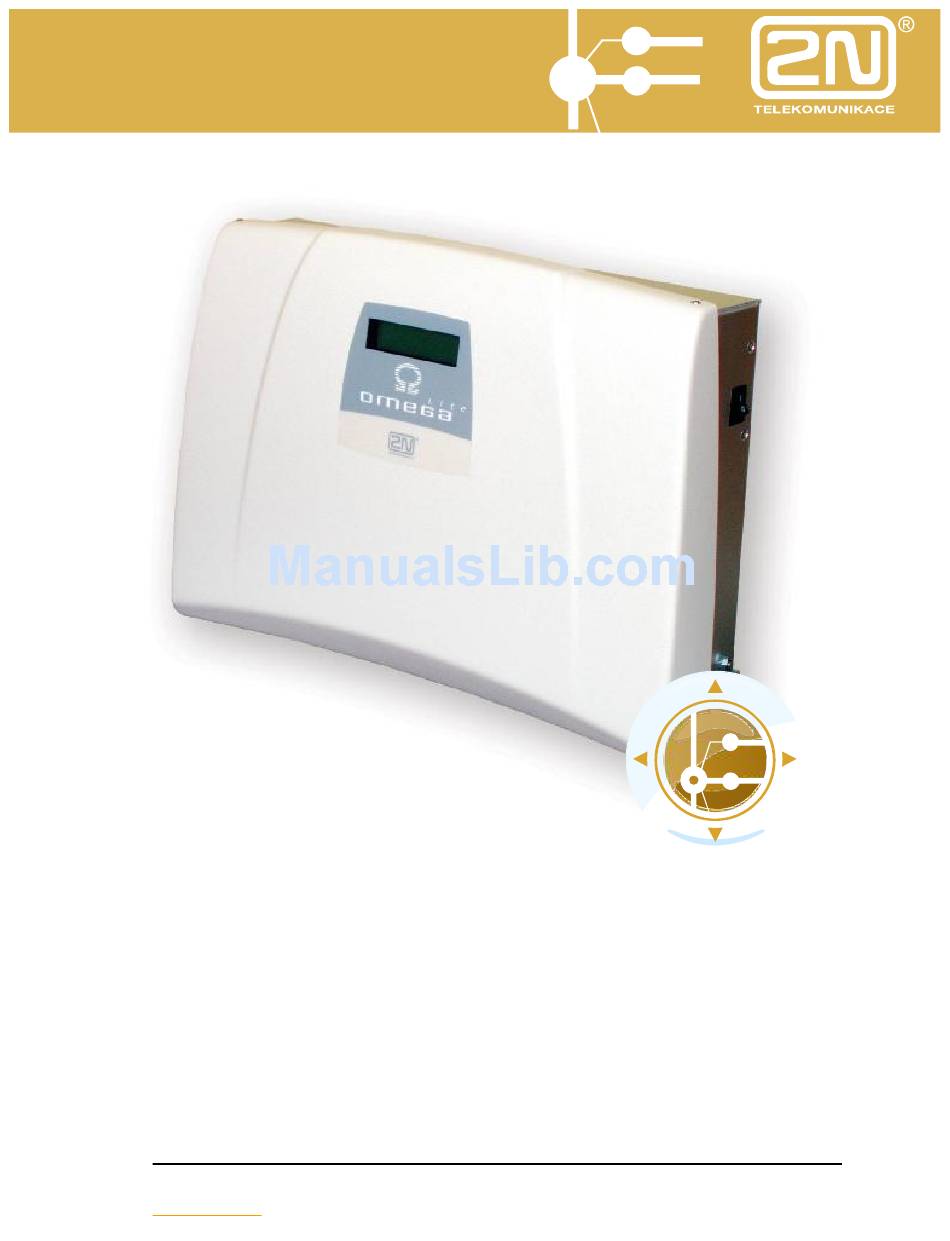

2N
- OMEGA Lite
VoIP module
USER'S MANUAL
VoIP
version 1.0
User's manual – VoIP module
www.2n.cz
1

Advertisement

Table of Contents
loading

Related Manuals for 2N OMEGA Lite

Summary of Contents for 2N OMEGA Lite

  • Page 1 ® - OMEGA Lite VoIP module USER’S MANUAL VoIP version 1.0 User’s manual – VoIP module www.2n.cz...
  • Page 2 Our compliments on buying the 2N - OMEGA Lite. This new product was developed with an emphasis on the maximum possible use value, quality and reliability. We hope that you will be utterly satisfied with the 2N - OMEGA Lite for many years to come.

  • Page 3: Table Of Contents

    ® - OMEGA Lite VoIP module CONTENTS Packing list ......................5 ATEUS - Omega VoIP module...............6 2.1. VoIP module .........................7 Installation of the module .................8 Configuration of VoIP module ................16 4.1. Connection of USB line .......................16 4.1.1. Sub-menus..........................17 4.1.2. Commands and values ......................18 4.1.3.
  • Page 4 ® - OMEGA Lite VoIP module Configuration of VoIP module parameters in PbX config tool ....55 5.1. Upgrade of firmware to the ATEUS® - OMEGA central unit ..........55 5.2. Hardware configuration .......................55 5.3. Setting of VoIP line......................57 5.4. Outgoing calling ........................57 5.5.

  • Page 5: Omega Lite

    ® - OMEGA Lite VoIP module 1. Packing list Item Quantity VoIP module USB cable PC LAN cable Connecting cable M3x30 spacer Warranty Certificate Conformity Certificate User’s manual – VoIP module www.2n.cz...

  • Page 6: Ateus - Omega Voip Module

    2. ATEUS - Omega VoIP module ® The VoIP Module is designed exclusively for 2N OMEGA Lite PBXs as a VoIP module for LAN and Internet voice services. The VoIP Module is to be installed to the left from the power supply unit, above the main board.

  • Page 7: Voip Module

    ® - OMEGA Lite VoIP module 2.1. VoIP module The following is located on the VoIP module: - RJ45 connector - 8/8 for LAN connection. - USB connector for USB connection, designed for IP configuration. J4,J8 - serial connector designed for connection with the main board of the PBX.

  • Page 8: Installation Of The Module

    ® - OMEGA Lite VoIP module 3. Installation of the module Remove the display holder by unscrewing 2 screws on the chassis. Remove by turning the end cap on the left-hand side of the chassis for J1 and J2 connectors.
  • Page 9 ® - OMEGA Lite VoIP module Remove 2 JUMPERs, J8/J9, from the main board. Unscrew 2 M3 screws from the left and right corner of the main board (these will be used for fixing of the VoIP module) and replace them with the spacers attached.
  • Page 10 ® - OMEGA Lite VoIP module User’s manual – VoIP module www.2n.cz...
  • Page 11 ® - OMEGA Lite VoIP module Insert the two connectors attached into the J26 and J15 connectors on the main board. User’s manual – VoIP module www.2n.cz...
  • Page 12 ® - OMEGA Lite VoIP module Place the VoIP module onto the connectors inserted and fix it with two screws. Place the module onto the connectors carefully to avoid shifting of the individual PINS. User’s manual – VoIP module www.2n.cz...
  • Page 13 ® - OMEGA Lite VoIP module User’s manual – VoIP module www.2n.cz...
  • Page 14 Connect the USB cable inserted (into J2 connector) and connect it with your When connecting for the first time it is necessary to install USB-COM driver (on the “data/OMEGA Lite/Cz/Software/VoIP/DriverUSB/” CD attached). A new COM PORT is added after installation. After this you may connect by hyper- terminal and perform the necessary settings.
  • Page 15 ® - OMEGA Lite VoIP module Serves for network parameter setup (IP address/network mask,.). After the network parameters have been set up you may disconnect. Always RESET the module using the SW1 button after disconnecting the USB cable. Connect a standard direct Ethernet cable into the J1 connector.

  • Page 16: Configuration Of Voip Module

    ® - OMEGA Lite VoIP module 4. Configuration of VoIP module ® The VoIP module for the ATEUS - OMEGA central has pre-set from the producer: Communicating port of serial console: Speed: 115200 Data bits: Parity: none Flow control: none Network parameters: IP address: 10.0.0.1...

  • Page 17: Sub-Menus

    ® - OMEGA Lite VoIP module Each menu consists from following sections: Heading: contains (from left) product name, firmware version, menu name and network name assigned to the equipment. Selection column: displays numbers and names of available options. Value column: if the „[menu]“ is displayed, then the menu covers another sub-menu.

  • Page 18: Commands And Values

    ® - OMEGA Lite VoIP module If we select the item corresponding to the sub-menu, this sub-menu will be displayed. Now, we may select the items from the selected menu or get back by pressing of the key. 4.1.2. Commands and values...

  • Page 19: About Menus

    ® - OMEGA Lite VoIP module Some commands realise the operations, which significantly influence the behaviour of whole system (e.g. restart of the unit). Before their realisation, the system usually confirms, that you really wish their realisation. Are you sure [y/n] : If you answer to such question anything else than „y“...

  • Page 20: Access From The Web Browser

    ® - OMEGA Lite VoIP module 4.2. Access from the web browser While the serial console interface enables changing of only basic parameters, the setting of all parameters of the VoIP module and all its services is available via the web browser.
  • Page 21 ® - OMEGA Lite VoIP module After successful log-in into the system, we will get into the basic display of the web application. The window is divided into four basic parts. Heading line: the window heading contains the pull-up menu for selection of language, in which the user relation will take place;...

  • Page 22: Overview Of Group Tabs And Menus

    Network configuration – module network parameters Firmware updating – updating of the gateway firmware ® Services: besides its main function, the VoIP module 2N - OMEGA Lite offers also other network services. The forms for their setting and control elements for the service switching on/off are in this tab.

  • Page 23: Setting Of The Network Parameters

    ® - OMEGA Lite VoIP module 4.3. Setting of the network parameters Before the module is used for telephoning, it is necessary to set its network parameters. It may be done by two different manners. If the gateway is pre-set from...

  • Page 24: Setting From The Web Browser

    ® - OMEGA Lite VoIP module Dns2 – IP address of the second DNS server. Host Name – network name of VoIP module. Domain – domain name. Location – any text documenting the module location. This value is published by means of SNMP.
  • Page 25 ® - OMEGA Lite VoIP module Network Mask – network mask. If the dynamic assignment of the addresses is activated by means of the DHCP protocol, the value may not be manually changed. Gateway – IP address of initial router. It is used for routing of the data traffic outside the network limit.

  • Page 26: Administration

    In this chapter, we will describe the setting of the general parameters of the ® VoIP module 2N - OMEGA Lite, with creating of the user accounts and the authorisation groups. 4.4.1. General gateway parameters In the Configuration tag, there is the item Administration. Clicking to it will open the page with the general parameters of the module.

  • Page 27: User Accounts

    ® - OMEGA Lite VoIP module The form contains following fields: Confirm remove – If this mark is selected, then any deleting command is accompanied by a confirmation window. Enable SIP session progress – This mark enables the SIP stack to send so-called session progress messages during call establishing.
  • Page 28 ® - OMEGA Lite VoIP module Following items are displayed in individual table columns: Name – name of the user account. Group – authorisation group. Language – language, to which the web interface will be switched to after the user log-in.
  • Page 29 ® - OMEGA Lite VoIP module The form contains following fields: User name – name of the user account. It must be unique, contain alphanumeric characters only and the Upper/Lower Case must be respected. New Password – the password to be entered for user login. Dots are displayed instead of characters for safety reasons.
  • Page 30 ® - OMEGA Lite VoIP module CSS style filename – This setting influences the web interface appearance. You can select various sets of graphic elements from the pop-up menu. The selected set is activated upon user login. Rights – access rights beyond the selected rights group.

  • Page 31: Authorisation Groups

    ® - OMEGA Lite VoIP module 4.4.3. Authorisation groups The authorisation groups are created for the reason, that we do not want to specify at each creation of the user account, to which parts of the system the user may have access. The resulted subset of assigned and refused rights is composed during the log-in from the settings of assigned authorisation group and from eventual corrections, which are adjusted during establishment of the user account.

  • Page 32: Emergency Change Of The Administrator Password

    We must establish at least one SIP or H.323 line to enable proper functioning ® of the VoIP module 2N - OMEGA Lite. 4.5.1. SIP On the SIP line setting initial screen, there are displayed all defined SIP lines in the table: User’s manual –...

  • Page 33: Parameters Of Sip Line

    ® - OMEGA Lite VoIP module Following items are displayed in particular columns of the table: Line ID – internal identification of the line used by module firmware. The line detail will be displayed after clicking to the number. SIP server – IP address of SIP proxy, to which the line is registered.
  • Page 34 ® - OMEGA Lite VoIP module The form contains following fields: SIP server address – IP address or fully qualified network name of SIP proxy, to which the line is to be registered. SIP name – calling line number. Display name – text, which is to be displayed to the called person.

  • Page 35: H.323

    ® - OMEGA Lite VoIP module User name – name, by which the line is specified during registration to SIP proxy. Password – password, by which the line is authorised during registration to SIP proxy. Due to safety, the dots are displayed instead of characters.

  • Page 36: Parameters Of H.323 Line

    ® - OMEGA Lite VoIP module 4.5.4. Parameters of H.323 line If we add the new line, there is item Add below the form. During the modification of existing line, there is the item Change. Clicking to it, the entered data are confirmed and we request the realisation of relevant operation.
  • Page 37 ® - OMEGA Lite VoIP module Call method – method of the new calling activation. There are three options: 1) direct – calling with specified fully qualified network name of the called person, 2) gatekeeper – the search of the relevant path and connection is realised by selected Gatekeeper;...

  • Page 38: Least Cost Router - Lcr

    ® - OMEGA Lite VoIP module 4.6. Least Cost Router - LCR This section deals with the purpose and operation of the gateway cost saving machine - the Least Cost Router. Let us explain how it works and can be configured.

  • Page 39: Routing Rules

    ® - OMEGA Lite VoIP module 4.6.1. Routing rules Routing rules are the core of the LCR system. They consist of a relatively high number of parameters, which make the routing process highly flexible. A guide is available to make your configuration steps as convenient as possible.
  • Page 40 ® - OMEGA Lite VoIP module The first step is to define the destination. Basically, the destination is a set of prefixes. Looking for the appropriate routing rule, the LCR searches the allowed routing rules from the top to bottom for a match between the normalized called number prefix and the destination number prefix.

  • Page 41: Modify Rule

    ® - OMEGA Lite VoIP module To restore the values available at the instant of form opening press the Reset button. To close the guide window click on Close. To proceed to the second part of creation, press the Next key. The Previous and Add keys are not active in the first step because they cannot initiate a meaningful operation.
  • Page 42 ® - OMEGA Lite VoIP module User’s manual – VoIP module www.2n.cz...

  • Page 43: Remove Rule

    ® - OMEGA Lite VoIP module 4.6.4. Remove rule To delete a useless routing rule put the check-mark in the second column of the respective line and press the Remove button. 4.6.5. Change sequence To change the sequence of rules, take steps similar to those for rule removal.

  • Page 44: Add Group

    ® - OMEGA Lite VoIP module 4.7.2. Add group Click on the Add group link to add a group. A form gets displayed in the browser for you to complete the following data: Group name – The group name may contain any alphanumerical characters.
  • Page 45 ® - OMEGA Lite VoIP module User’s manual – VoIP module www.2n.cz...

  • Page 46: Modify Group Settings

    ® - OMEGA Lite VoIP module 4.7.3. Modify group settings To modify a group setting, click on the pencil symbol of the respective group. This displays a guide similar to that introduced in the text above. The only difference is the presence of the Modify key instead of the Add key.

  • Page 47: Lcr - Barred Numbers

    ® - OMEGA Lite VoIP module The meanings of the fields in the form are identical with the following columns of the normalizing table: Prefix – a prefix that a number must start with to meet the transformation regulation. Remove count – a count of characters to be removed from the number beginning behind the prefix.

  • Page 48: Lcr - Test

    ® - OMEGA Lite VoIP module By clicking on the pencil symbol you transit into the detail and can change the settings. The above-mentioned two fields are to be completed in the modifying form only. The cross is used for deleting a barred number. Another way to delete a barred number is to tick off the field in the last table column and click on the Remove selected items.

  • Page 49: Sip Proxy

    ® The VoIP module 2N - OMEGA Lite is delivered with integrated SIP proxy, which is able to fulfil the function of branch central for the SIP telephones. Its configuration is very easy and it consists only of easy setting of the routing.
  • Page 50 ® - OMEGA Lite VoIP module The form and the table contain following fields: If prefix – If the called subscriber's URI (Uniform Resource Identifier) starts with this string, this rule is used for routing. In the SIP environment, the URI is introduced with the "sip:" prefix, which must be included in the value in this field.

  • Page 51: Overview Of Registrations

    ® - OMEGA Lite VoIP module 4.11.1. Overview of registrations Via the web interface of the module, it is possible to see, which units are registered to the SIP proxy. This list is available via Registration item in the menu SIP proxy in tag Services.

  • Page 52: Licence File

    ® The firmware updating serves for exchange of the firmware of the 2N OMEGA Lite VoIP module. The updating must be realised exclusively by the firmware delivered by the gateway producer, or by firmware loaded from the web pages of the producer.

  • Page 53: Configuration Downloading

    Select the path to the file containing the firmware by pressing the Browse ® button and record the new firmware into the 2N OMEGA Lite VoIP module. 4.14. Configuration downloading Any configuration setting can be downloaded and saved into a file.
  • Page 54 ® - OMEGA Lite VoIP module Find the saved configuration backup.tgz and press Upload. User’s manual – VoIP module www.2n.cz...

  • Page 55: Configuration Of Voip Module Parameters In Pbx Config Tool

    5. Configuration of VoIP module parameters in PbX config tool ® For correct function of the VoIP module it is necessary, that the 2N OMEGA Lite central is loaded with the firmware of minimal version 4.02REV11. Otherwise the upgrade is necessary.
  • Page 56 ® - OMEGA Lite VoIP module User’s manual – VoIP module www.2n.cz...

  • Page 57: Setting Of Voip Line

    ® - OMEGA Lite VoIP module 5.3. Setting of VoIP line Setting of the VoIP line must be adjusted in module OmegaProgram External lines/Digital line types/VoIP Set: Name – line name of max. 14 characters Without autoris. – the authorisation check will not be performed on this line Private –...

  • Page 58: Incoming Ringing

    ® - OMEGA Lite VoIP module automatically included into the bundle no. 6 and the approach of all lines to the bundle is enabled by the service Approach to bundle of all external lines by dialling 86. Include the VoIP lines into the LCR for comfort calling.
  • Page 59 ® - OMEGA Lite VoIP module The manufacturer reserves the right, in contrast to the submitted documentation, to make modifications to the product that will improve the product’s properties. Please use the product in accord with the instructions and for the purpose for which it was designed and manufactured.
