www.collegehillshonda.com
INSTALLATION
INSTRUCTIONS

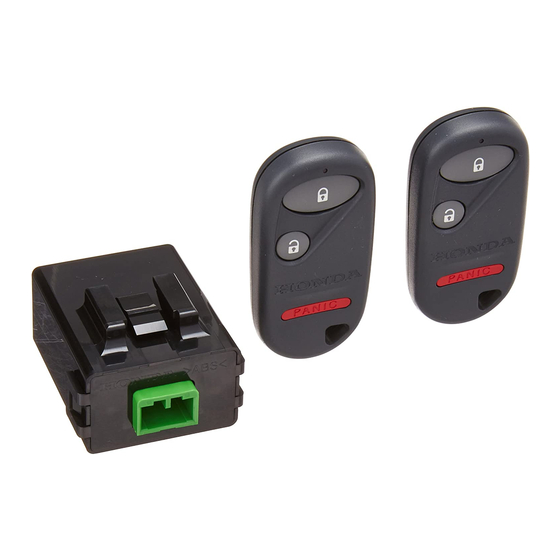

PARTS LIST
2 Transmitters
Receiver unit
Bracket
Flange bolt
Owner's manual
TOOLS REQUIRED
Ratchet
10 mm Socket
Illustration of the Keyless Entry Installed in the
Vehicle
RECEIVER
UNIT
2005 American Honda Motor Co., Inc. - All Rights Reserved.
©
Accessory
KEYLESS ENTRY
P/N 08E60-SCV-100
INSTALLATION
Customer Information: The information in this
installation instruction is intended for use only by
skilled technicians who have the proper tools,
equipment, and training to correctly and safely add
equipment to your vehicle. These procedures
should not be attempted by "do-it-yourselfers."
1.
2.
3.
2709050K
AII 31066 (0510)
Application
2003-2006 ELEMENT
If equipped, make sure you have the anti-theft
code for the radio, then write down the radio
station presets.
Disconnect the negative cable from the battery.
Remove the driver's dashboard lower cover, turn
the knobs clockwise, then pull the driver's
dashboard lower cover out toward you to release
the six retaining tabs.
DRIVER'S
DASHBOARD
LOWER
COVER
KNOB
Publications No.
AII 31066
Issue Date
OCT 2005
RETAINING
TABS (6)
2403050K
1 of 2
08E60-SCV-1000-91
Advertisement
Table of Contents
Related Manuals for Honda 08E60-SCV-100
Summary of Contents for Honda 08E60-SCV-100
- Page 1 10 mm Socket TABS (6) Illustration of the Keyless Entry Installed in the DRIVER’S DASHBOARD Vehicle LOWER COVER 2403050K KNOB RECEIVER UNIT 2709050K 1 of 2 08E60-SCV-1000-91 2005 American Honda Motor Co., Inc. - All Rights Reserved. AII 31066 (0510) ©...
- Page 2 Locate the 5-pin connector blue-taped to the vehicle harness, and remove the blue tape to free the 5-pin connector. Plug the 5-pin connector into the receiver unit. 2 of 2 AII 31066 (0510) 2005 American Honda Motor Co., Inc. - All Rights Reserved. ©...
