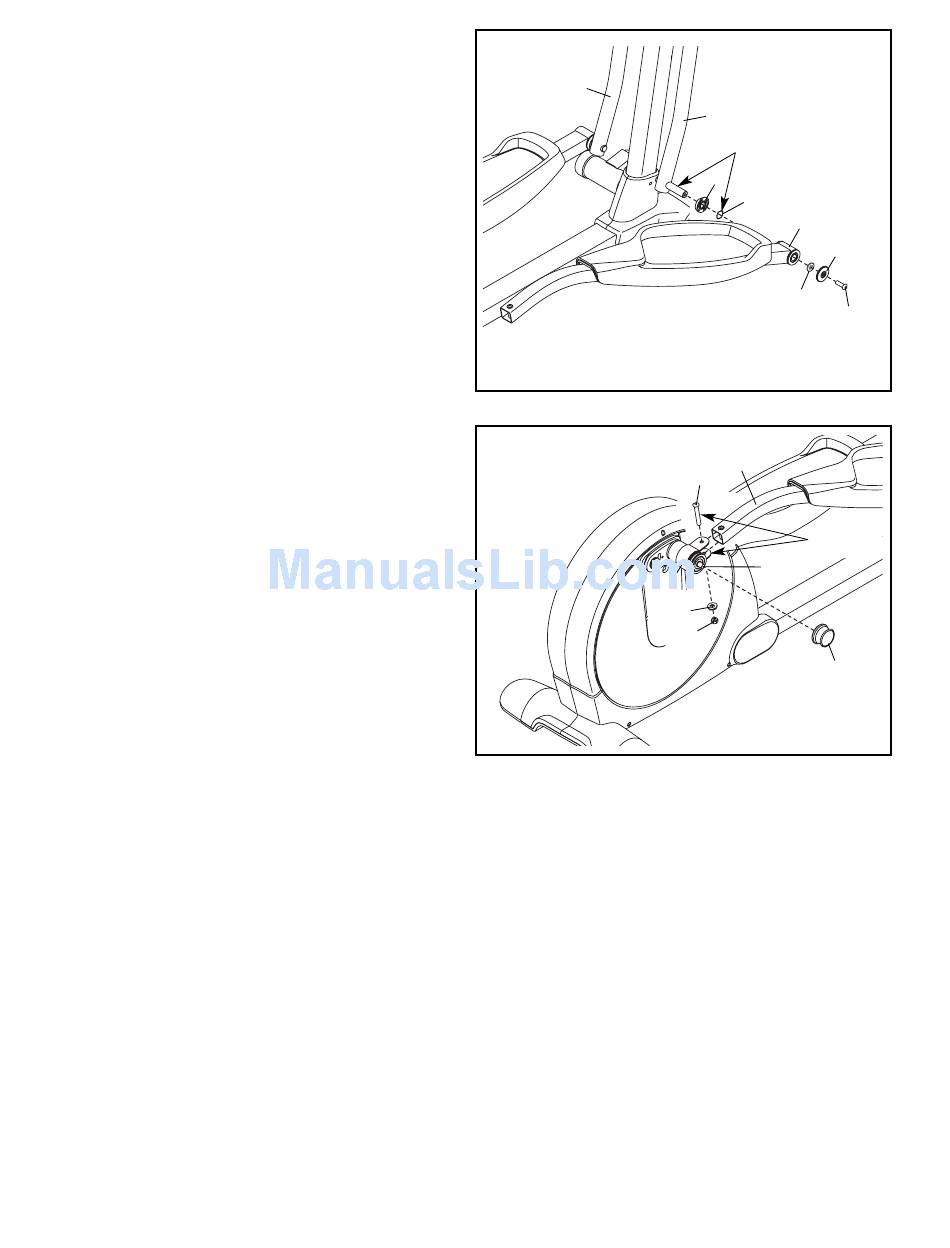

10. Apply a small amount of grease to the axle on
the Right Upper Body Leg (72) and to a Large
Wave Washer (89).
Slide an Upper Body Leg Spacer (9) onto the
Right Upper Body Leg (72); make sure that the
flat side of the Upper Body Leg Spacer is
facing outward. Then, slide the Large Wave
Washer (89) and the right Pedal Arm (32) onto
Right Upper Body Leg.
Attach the right Pedal Arm (32) with an M8 x
23mm Patch Shoulder Screw (103), an Axle
Cover (66), and an M8 x 23mm x 1mm Washer
(102).
Repeat this step for the other side of the
elliptical exerciser.
11. Apply a small amount of grease to an M8 x
58mm Shoulder Bolt (88) and to the right Link
Arm Bracket (45).
Insert the right Link Arm (30) into the right Link
Arm Bracket (45). Attach the Link Arm with the
M8 x 58mm Shoulder Bolt (88), an M8 x 23mm
x 2mm Washer (31), and an M8 Nylon Locknut
(84).
Tighten an Adjustment Knob (52) onto the right
Adjustment Pin (76).
Repeat this step for the other side of the
elliptical exerciser.
10
24
11
10
72
Grease
9
89
32
66
102
30
88
Grease
76
45
31
84
52
103
