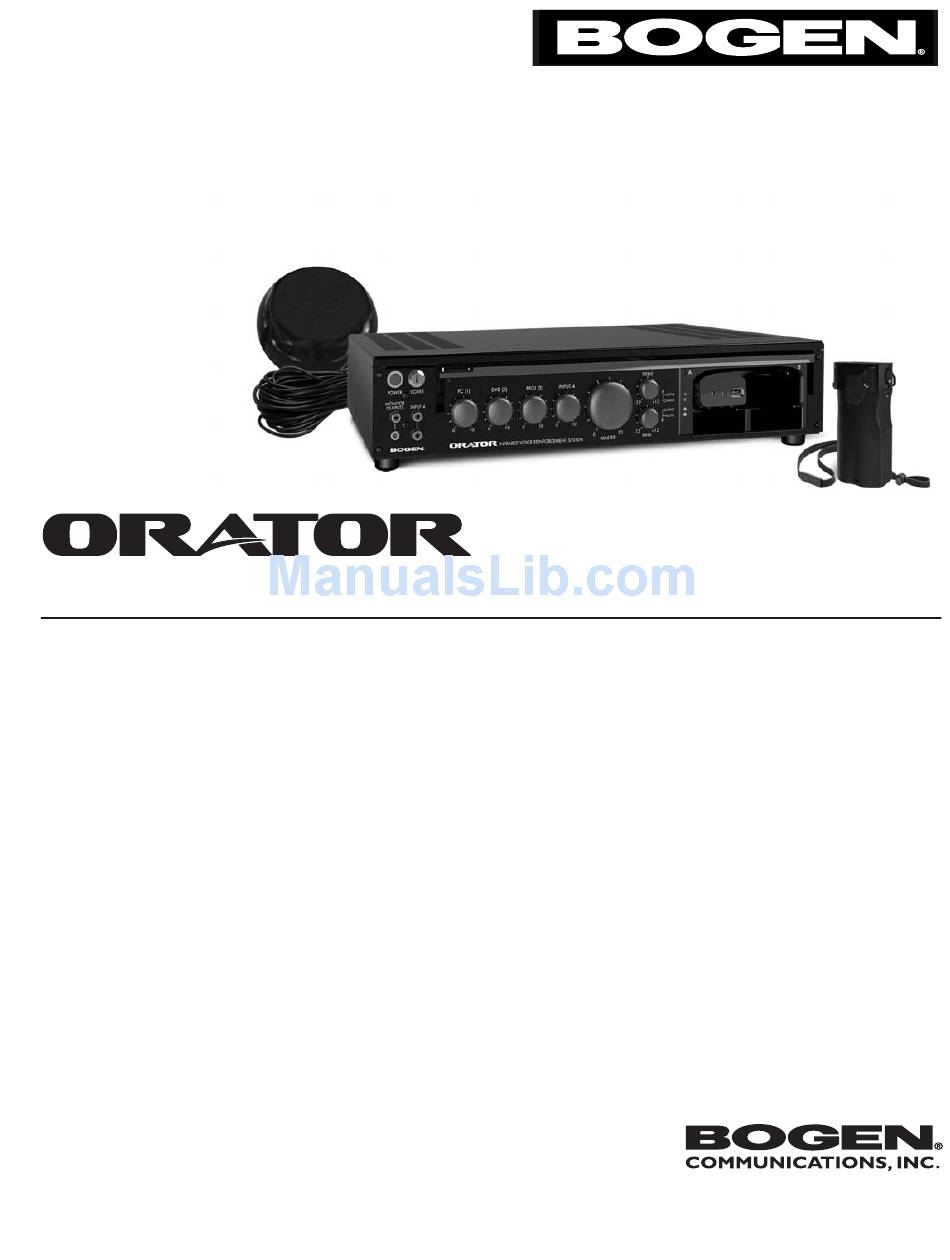

- Page 1 Infrared Voice Reinforcement System © 2011 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-2197-01G 1306...
- Page 2 NOTICE: Every effort was made to ensure that the information in this guide was complete and accurate at the time of printing. However, information is subject to change. WARNING: To reduce the risk of Fire or Electric Shock, Do Not Expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.
-
Page 3: Table Of Contents
Table of Contents Description ........................Package Contents ......................ORB35 Receiver/Base Unit Front Panel ..............ORB35 Receiver/Base Unit Rear Panel ................ OMX1 MIC/Transmitter Panels ..................ORS Infrared Sensor ...................... Quick-Start Installation Instructions ................Setting System Volumes ....................ORB35 Receiver/Base Unit Installation & Operation..........Mounting &... - Page 4 This Page Intentionally Left Blank.
-
Page 5: Description
OMX1 units. Users always know where the charging docks are and this configuration eliminates the need to find an unused outlet and a suitable spot to put the charger itself. The Oratorʼs cover rotates up and out of the way when the system is in use and back down to help secure the OMX1 units when not in use. -
Page 6: Orb35 Receiver/Base Unit Front Panel
ORB35 Receiver/Base Unit Front Panel 7. AUX Input Volume Controls - 1. Power Switch - page 8 page 8 2. Rotating Security Cover Lock 8. Master Volume Control - page 8 3. Translucent Rotating Security Cover - 9. Bass & Treble Controls - page 9 page 8 4. -
Page 7: Omx1 Mic/Transmitter Panels
OMX1 MIC/Transmitter Panels 1. AUX Input Jack - 9. Emitter Lens page 11 2. Charging Dock Selector Tab - 10. External Microphone Input - page 11 page 11 3. Call-In Push Button - 11. Durable Spring Wire Belt Clip - page 12 page 13 4. -
Page 8: Quick-Start Installation Instructions
Test each OMX1 for audio transmission. Adjust the systemʼs volume controls as needed. The Orator system is now proved out and functioning. Turn off the power to the ORB35 unit before making any other connections. Review the full instructions for information on enabling OMX1 functions, setting up the Override input, and using the 8-Band EQ among other system operation details. -
Page 9: Orb35 Receiver/Base Unit Installation & Operation
PLEASE READ THIS BEFORE INSTALLATION: Before the MIC/Transmitter OMX1 will work in the Orator system, it must first be programmed by inserting it into a charging dock. In systems with 2 OMX1 units, each must be inserted into a different dock. - Page 10 ORB35 Receiver/Base Unit (contʼd) Call Switch Contacts (Rear) Function buttons on the OMX1 can be activated to cause a relay contact in the ORB35 unit to cycle for the purpose of signaling a call-in from the room to the facilityʼs intercom system.
-
Page 11: Receiver/Base Unit Programming Dip Switches
OFF disables this feature. See the OMX1 section for information on this function button. IMPORTANT: The Orator Call-In feature is provided as a convenience for the user and is not intended to be used as a personal safety device. In an emergency situation, the Call-In device provided with the intercom system should be used. -
Page 12: Controls & Indicators
The soft touch power switch turns the ORB35 Receiver/Base Unit on and off. A green indicator ring around the power switch indicates that the Orator is powered on. This indicator is extinguished when the Orator is off. Charging and communication between OMX1 MIC/Transmitters still continue when the ORB35 is powered off. -
Page 13: Charging Dock Indicators
A fault condition is signaled by a RED indicator. A fault condi- tion may indicate a problem with the battery. IMPORTANT: When replacing batteries use only Bogen P/N 45-7543-05.The use of other batteries will void the warranty and may result in product damage or fire. -
Page 14: Omx1 Mic/Transmitter
Battery Installation The OMX1 operates on a single, Li-ion rechargeable battery (included). Use only the Bogen P/N 45-7543-05 battery for replacement. To install the battery, first remove Battery Door (A) from rear of the OMX1 MIC/Transmitter by pulling back on the small latch. -
Page 15: Dock Selection Tabs
ORB35 unit. Care must be taken when adjusting volume levels with the built-in microphone not to cause feedback. The Orator products are a voice reinforcement system and when the voice program level is set correctly, the speakers will not pick up their own sound. -
Page 16: Function Buttons
Audio Link The OMX1 can be used to connect audio sources into the Orator system. Simply plug a mono or stereo line-level signal into the AUX input jack (1/8” mini style) and use the OMX1ʼs volume control, and the sourceʼs volume (if it has one), adjust the volume control for the desired playback level. -
Page 17: Omx1 Adjustable Lanyard Assembly
OMX1 MIC/Transmitter Features (contʼd) OMX1 Adjustable Lanyard Assembly Setup for OMX1 Pendant Use The figures to the right show how to properly assemble TOP HOLE the Lanyard and Lanyard Plate onto the rear of the OMX1 TOP SLAT and how to best position the unit when worn. LANYARD (1) Feed Lanyard into Top Slat on the Lanyard Plate, then PLATE... -
Page 18: Ors Infrared Sensor
ORS Infrared Sensor Installation Sensor Wiring The sensor connects to the coaxial cable using F-connectors. Route the coaxial cable over the ceiling from the IR sensor location to the location of the ORB35 unit. Connect the cable with the sensorʼs pigtail connector. For distances longer than the included coaxial cable, a user-supplied cable can be connected to the included coaxial cable using a double ended F-connector. -
Page 19: Technical Specifications
On/Off Switch, Input Volume Control, 2 function buttons Connectors: MIC (external): mono 1/8” mini style AUX: stereo or mono 1/8” mini style Batteries: Li-ion, Rechargeable, Bogen P/N 45-7543-05 Operational Time: 10-15 hours (approx.), depending on transmit frequency Dimensions: 1.9" W x 4" H x 1.2" D Product Weight: 4 oz. -
Page 20: Limited Warranty; Exclusion Of Certain Damages
Limited Warranty; Exclusion of Certain Damages The Bogen Orator ORB35 Receiver/Base Unit and the ORS Sensor and cable are warranted to be free from defects in material and workmanship for five (5) years from the date of sale to the original purchaser; the OMX1 MIC/Transmitter, its battery, and accessories carry a two (2) year warranty.
