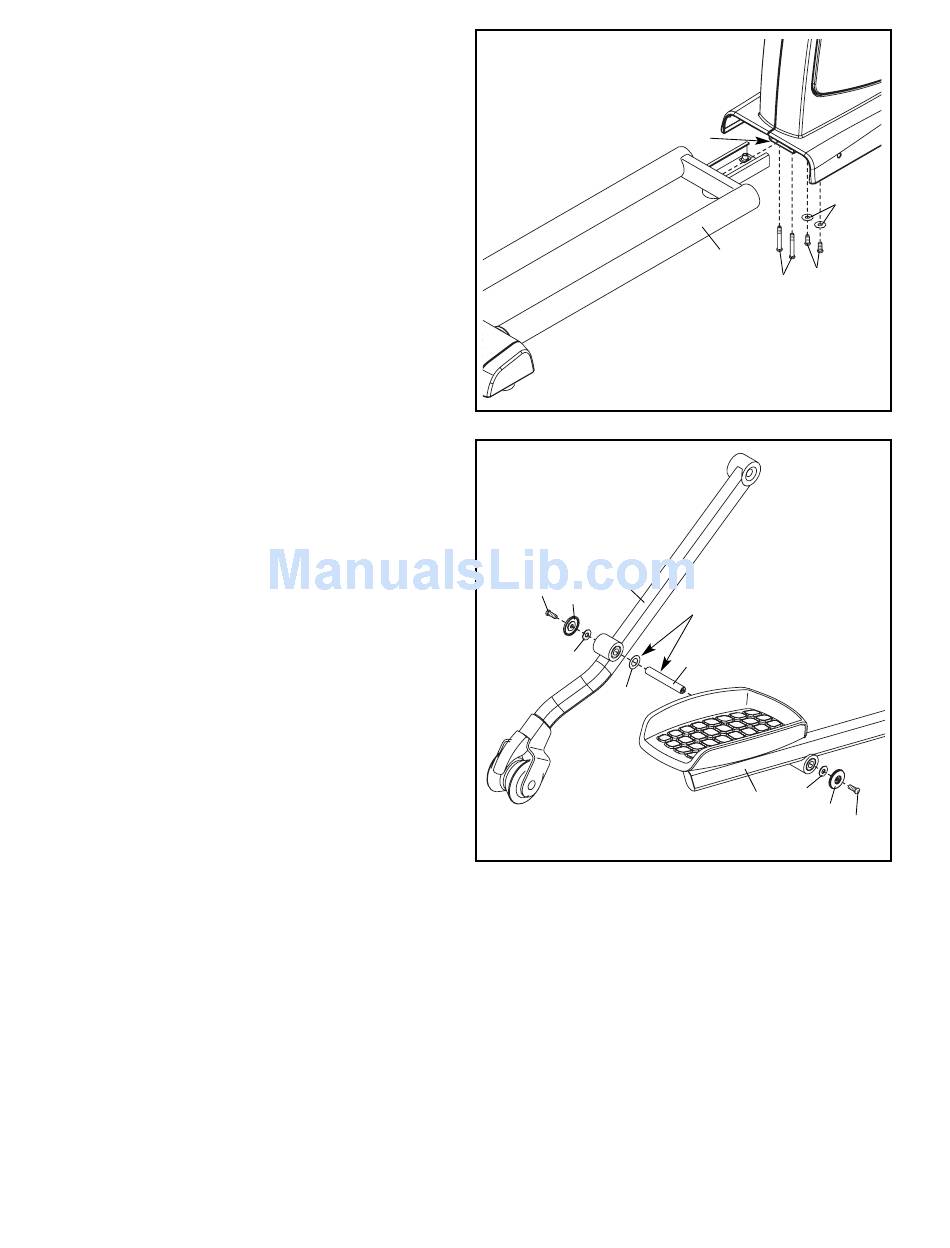

9. Insert the Track (2) into the Frame (1). Attach
the Track with two M8 x 50mm Patch Screws
(65), two M8 x 16mm Patch Screws (53), and
two M8 x 25mm Washers (54).
10. Identify the Right Link Arm (39) and the Right
Pedal Leg (38), which are marked with "R" stick-
ers, and orient them as shown.
Apply a generous amount of grease to a Link
Axle (47). Also, apply a small amount of grease
to a 16mm Wave Washer (66). Slide the Link
Axle through the Right Link Arm (39) and then
slide the Wave Washer onto the right side of the
Link Axle.
With the help of another person, slide the Right
Pedal Leg (38) onto the right side of the Link
Axle (47). Attach the Right Link Arm (39) and the
Right Pedal Leg with two M8 x 25mm Patch
Screws (77), two Link Axle Covers (49), and two
M8 x 25mm Washers (54).
Repeat this step for the Left Link Arm and
the Left Pedal Leg (not shown).
