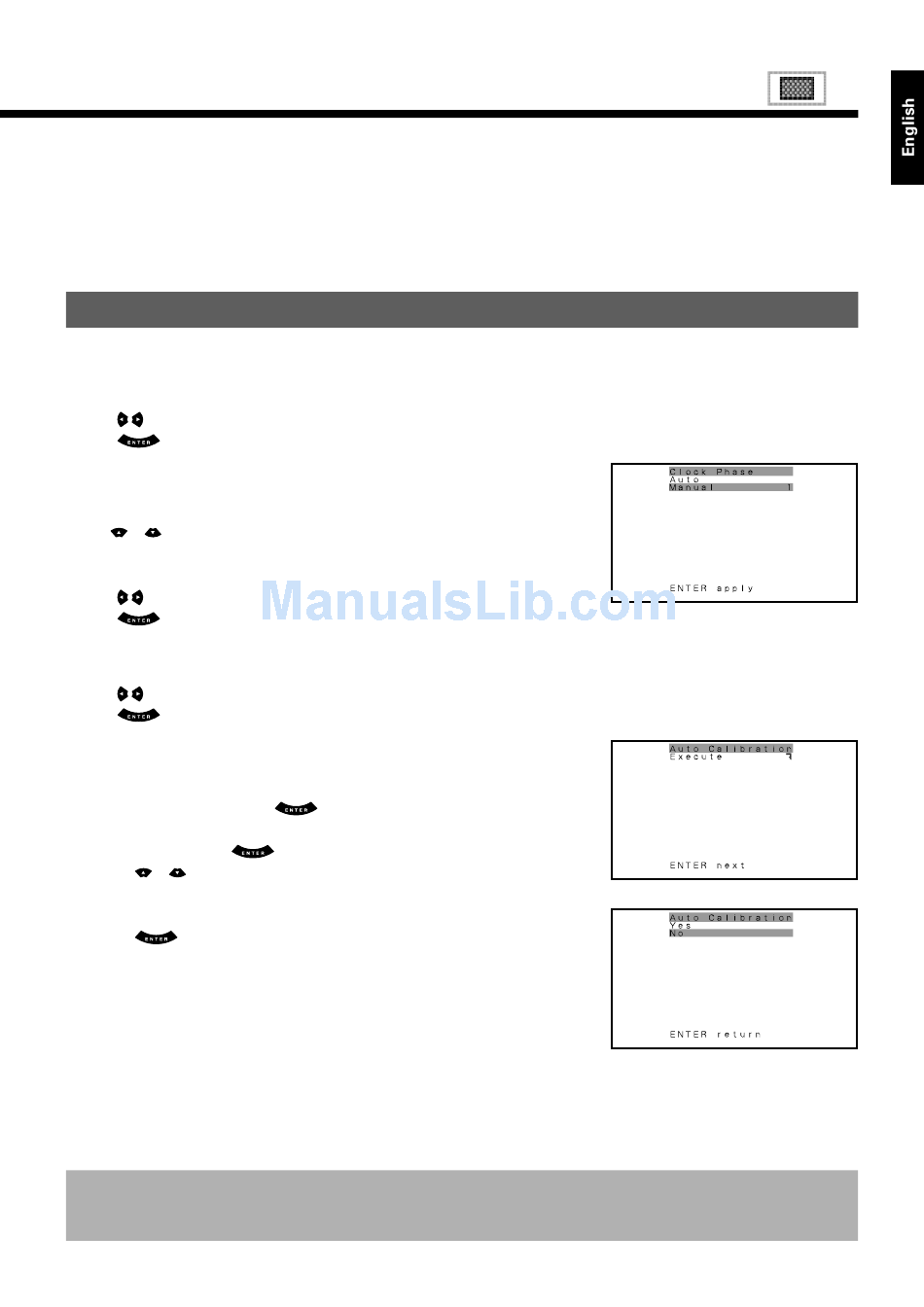

• FEATURES setup screen has the following 4 options.
Adjustment
: Can make a fine adjustment of pictures such as Dot Clock, Clamp Position.
On Screen Menu : Can make a display setting such as OSD, Language. (See P. E-20.)
Input Terminal
: Can make an input terminal setting such as Video Input. (See P. E-20–E-21.)
Others
: Can make other settings. (See P. E-22–E-25.)
ADJUSTMENT
• Adjusting Dot Clock (Dot Clock)
You may find that pictures blur, depending on the clock frequency of your PC's processor.
If you experience blurring, you can obtain a clearer picture by adjusting the "Dot Clock".
Press
to make adjustments..
Press
to store.
• Adjusting Clock Phase (Clock Phase)
You may find that pictures blur, depending on the clock phase of your PC's processor. If you
experience blurring, you can obtain a clearer picture by adjusting the "Clock Phase".
Use
or
to select "Auto" or "Manual".
Auto:
Makes automatic adjustment.
Manual: Makes manual adjustment.
Press
to make adjustments.
Press
to store.
• Adjusting Clamp Position (Clamp Position)
Adjusts clamp pulse in accordance with the input signal received from connected equipment.
Press
to make adjustments.
Press
to store.
• Selecting the Optimum Dynamic Range of Images (Auto Calibration)
Receives a white screen signal and adjusts the dynamic range of images to the optimum.
(1) Select Auto Calibration and press
Auto Calibration screen appears.
(2) Select Execute and press
Press
or
to select Yes or No.
Yes: Stores the data of Auto Calibration.
No: Disables the execution result of Auto Calibration.
(3) Press
to execute.
* On-screen information disappears if you do not take any action for about 60 seconds.
* Functions may not be available with some models and some device options.
* The adjustment range varies with the display signal. You can adjust the display quality to the value you want within the adjustable range.
.
.
for RGB
for RGB
When selecting Manual by Clock Phase
for RGB
for RGB
"Auto Calibration" setting screen
"Yes/No" screen to select
E-19
