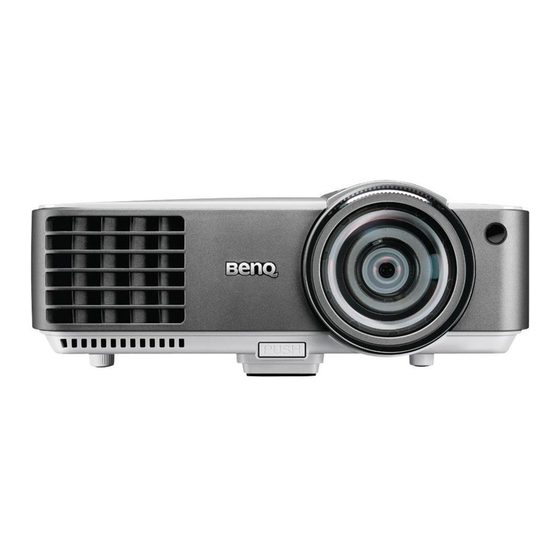

MX823ST/MW824ST
Digital Projector
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX823ST and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ MX823ST

Summary of Contents for BenQ MX823ST

  • Page 1 MX823ST/MW824ST Digital Projector User Manual...

  • Page 2: Table Of Contents

    Table of contents Important safety Using the test pattern......35 Using the teaching templates ....36 instructions ....3 Shutting down the projector ....37 Introduction....7 Direct power off........37 Menu operation ........38 Projector features........7 Shipping contents ........8 Maintenance ....

  • Page 3: Important Safety Instructions

    Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. Safety Instructions Please read this manual before In some countries, the line voltage is...
  • Page 4 Safety Instructions (Continued) The lamp becomes extremely hot Do not place this product on an during operation. Allow the projector unstable cart, stand, or table. The to cool for approximately 45 minutes product may fall, sustaining serious prior to removing the lamp assembly damage.
  • Page 5 Safety Instructions (Continued) Do not place this projector in any of Do not block the ventilation holes. the following environments. - Do not place this projector on a blanket, bedding or any other soft - Space that is poorly ventilated or surface.
  • Page 6 If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed.

  • Page 7: Introduction

    3D Function supported Various 3D formats make the 3D function more flexible. By presenting the depth of the images, you can wear BenQ 3D glassed to enjoy the 3D movies, videos and sporting events in a more realistic way. •...

  • Page 8: Shipping Contents

    Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories The supplied accessories will be suitable for your region, and may differ from those illustrated. *The warranty card is only supplied in some specific regions.

  • Page 9: Projector Exterior View

    Projector exterior view External control panel Front/upper side (See "Controls and functions" on page for details.) Lamp cover Vent (heated air exhaust) Quick-release button Focus ring Vent (cool air intake) Speaker grill Front IR remote sensor Projection lens Lens cap AC power jack RS232 control port RJ45 LAN input jack...

  • Page 10: Controls And Functions

    Controls and functions Projector Focus ring 10. AUTO Adjusts the focus of the projected image. Automatically determines the best picture timings for the displayed image. LAMP indicator light Indicates the status of the lamp. Lights up POWER or flashes when the lamp has developed a Toggles the projector between standby problem.

  • Page 11: Remote Control

    Remote control ECO BLANK Used to hide the screen picture. Toggles the projector between standby LASER mode and on. Emits visible laser pointer light for Source selection buttons presentation purposes. (COMPUTER 1, COMPUTER 2, MHL control buttons VIDEO, S-VIDEO, HDMI, Previous, Play/Pause, NETWORK...

  • Page 12: Network Setting

    11. PAGE +/PAGE - 19. MUTE Operate your display software program Toggles projector audio between on and (on a connected PC) which responds to off. page up/down commands (like Microsoft 20. ASPECT PowerPoint). Selects the display aspect ratio. 12. FREEZE 21.

  • Page 13: Remote Control Effective Range

    Remote control effective range The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor(s) to function correctly. The distance between the remote control and the sensor(s) should not exceed 8 meters (~ 26 feet). Make sure that there are no obstacles between the remote control and the IR sensor(s) on the projector that might obstruct the infra-red beam.

  • Page 14: Positioning Your Projector

    Note that a special rear projection screen portability. and the BenQ Projector Ceiling Mount Kit are required for this installation location. Set Rear Ceiling in the SYSTEM SETUP: Basic > Projector Installation menu after you turn the projector on.

  • Page 15: Obtaining A Preferred Projected Image Size

    Refer to "Dimensions" on page 58 for the center of lens dimensions of this projector before calculating the appropriate position. MX823ST Screen Center of lens The screen aspect ratio is 4:3 and the projected picture is 4:3 (a) Screen size...
  • Page 16 All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.

  • Page 17: Connection

    Connection When connecting a signal source to the projector, be sure to: Turn all equipment off before making any connections. Use the correct signal cables for each source. Ensure the cables are firmly inserted. • In the connections shown below, some cables may not be included with the projector (see "Shipping contents"...

  • Page 18: Connecting Video Source Devices

    • Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/ LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously.

  • Page 19: Connecting Smart Devices

    Connecting smart devices The projector can project the content directly from a MHL compatible smart device. Using a HDMI to Micro USB cable or a HDMI to Micro USB adaptor, you can connect your smart devices to the projector and then enjoy your content on the big screen. Some smart devices may not be compatible to the cable that you use.

  • Page 20: Operation

    Operation Starting up the projector Plug the power cord into the projector and into a power outlet. Turn on the power outlet switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied. Please use the original accessories (e.g.

  • Page 21: Adjusting The Projected Image

    Adjusting the projected image Adjusting the projection angle To adjust the projector: Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position. Screw the rear adjuster foot to fine-tune the Do not look into the lens while the horizontal angle.

  • Page 22: Correcting Keystone

    Correcting keystone Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen. To correct this, follow ONE of these steps: • Press on the projector or remote control to display the Keystone correction page.

  • Page 23: Using The Menus

    Front Table Position Menu Settings Phase Operation Settings H. Size Remote Receiver Front+Rear Digital Zoom Panel Key Lock Background Color BenQ Teaching Template Splash Screen BenQ Analog RGB MENU Exit Analog RGB Exit MENU Press to select a to highlight the SYSTEM preferred language and press SETUP: Basic menu.

  • Page 24: Securing The Projector

    Securing the projector Using a security cable lock The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector. You can locate a Kensington lock slot on the rear side of the projector. See item 22 on page for details.

  • Page 25: If You Forget The Password

    BenQ Customer Center. Write down the number and turn off your projector. Recall Code: Seek help from the local BenQ service 255 255 255 255 center to decode the number. You may be required to provide proof of purchase MENU...

  • Page 26: Switching Input Signal

    The native display resolution of this projector is in a 4:3 (MX823ST)/16:10 (MW824ST) aspect ratio. For best display picture results, you should select and use an input signal which outputs at this resolution. Any other resolutions will be scaled by the projector depending upon the “aspect ratio”...

  • Page 27: Magnifying And Searching For Details

    Press to highlight Color Space Conversion and press to select a suitable color space. This function is only available when the HDMI/MHL-input port is in use. Magnifying and searching for details If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.
  • Page 28 Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width. This MX823ST MW824ST is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the...

  • Page 29: Optimizing The Image

    Optimizing the image Using Wall Color In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures. To use this function, go to the DISPLAY >...

  • Page 30: Adjusting Brightness

    Press to select a menu item to be changed and adjust the value with . See "Fine-tuning the image quality in user modes" below for details. Fine-tuning the image quality in user modes According to the detected signal type and selected picture mode, some of the below functions may not be available.

  • Page 31: Setting A Preferred Color Temperature

    Setting a preferred color temperature To set a preferred color temperature: Highlight Color Temperature and select Warm, Normal or Cool by pressing on the projector or remote control. Press to highlight Color Temperature Fine Tuning and press MODE/ ENTER. The Color Temperature Fine Tuning page displays. Press to highlight the item you want to change and adjust the values by pressing...

  • Page 32: Setting The Presentation Timer

    Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red in the projected Yellow GREEN picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

  • Page 33: Remote Paging Operations

    Press to highlight Timer Position and set the timer position by pressing Top-Left Bottom-Left Top-Right Bottom-Right Press to highlight Timer Counting Direction and select your desired counting direction by pressing Selection Description Count Up Increases from 0 to the preset time. Count Down Decreases from the preset time to 0.

  • Page 34: Hiding The Image

    Hiding the image In order to draw the audience's full attention to the presenter, you can use ECO BLANK on the projector or remote control to hide the screen image. When this function is activated with an audio input connected, the audio can still be heard. You can set the blank time in the SYSTEM SETUP: Basic >...

  • Page 35: Adjusting The Sound

    Adjusting the sound The sound adjustments made as below will have an effect on the projector speaker(s). Be sure you have made a correct connection to the projector audio input. See "Connection" on page 17 for how the audio input is connected. Muting the sound To temporarily turn off the sound: Press MENU/EXIT and then press...

  • Page 36: Using The Teaching Templates

    Using the teaching templates The projector provides several preset patterns for various teaching purposes. To activate the pattern: Open the OSD menu and go to the DISPLAY > Teaching Template menu and press to select Blackboard or Whiteboard. Press to choose the pattern you need. Press MODE/ENTER to activate the pattern.

  • Page 37: Shutting Down The Projector

    Shutting down the projector Press POWER or OFF and a confirmation message will display prompting you. If you don't respond in a few seconds, the message will disappear. Press POWER or OFF a second time. The POWER indicator light flashes orange, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.

  • Page 38: Menu Operation

    Menu operation Menu system Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using. Main menu Sub-menu Options Off/Light Yellow/Pink/Light Green/Blue/ Wall Color Blackboard Aspect Ratio Auto/Real/4:3/16:9/16:10 Keystone Position Phase H.

  • Page 39: System Setup

    Quick Cooling On/Off Settings Instant Restart On/Off Disable/5 min/10 min/15 min/20 min/25 Blank Timer min/30 min Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/ Sleep Timer 12 hr Remote Receiver Front+Rear/Front/Rear Panel Key Lock On/Off Background Color BenQ/Black/Blue/Purple Splash Screen BenQ/Black/Blue Operation...
  • Page 40 Main menu Sub-menu Options High Altitude Mode On/Off Mute On/Off Volume Audio Settings Power On/Off On/Off Ring Tone Normal/Economic/SmartEco/ Lamp Mode LampSave/LumenCare Lamp Settings Reset Lamp Timer Equivalent Lamp Change Password Security Change Security Settings Power On Lock Settings 2400/4800/9600/14400/19200/ Baud Rate 38400/57600/115200 Test Pattern...

  • Page 41: Description Of Each Menu

    Description of each menu Function Description Corrects the projected picture’s color when the projection surface is Wall Color not white. See "Using Wall Color" on page 29 for details. There are several options to set the image's aspect ratio depending on Aspect Ratio your input signal source.

  • Page 42: Function Description

    Function Description This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.
  • Page 43 Function Description Pre-defined picture modes are provided so you can optimize your Picture Mode projector image set-up to suit your program type. See "Selecting a picture mode" on page 29 for details. Selects a picture mode that best suits your need for the image quality Reference and further fine-tune the image based on the selections listed on the Mode...
  • Page 44 Function Description Quick Auto "Switching input signal" on page 26 for details. Search Color Space "Changing Color Space" on page 26 for details. Conversion Presentation Reminds the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 32 for details.
  • Page 45 Function Description Direct Power On Allows the projector to turn on automatically once the power is fed through the power cord. Signal Power On Sets whether to turn the projector directly on without pressing POWER or ON when the projector is in standby mode and the signal is feed through the VGA cable.
  • Page 46 Function Description High A mode for operation in high altitude areas. See "Operating in a high Altitude altitude environment" on page 34 for details. Mode Audio "Adjusting the sound" on page 35 for details. Settings Lamp Mode "Setting the Lamp Mode" on page 50 for details.

  • Page 47: Monitor Out

    Selecting On enables the function. The projector will automatically charge the connected MHL compatible smart device as long as the power is fed to the projector. Wired LAN BenQ Network Projector Operation Guide for details. AMX Device Discovery Network When AMX Device Discovery is On, the projector can be detected Settings by AMX controller.

  • Page 48: System Status

    Function Description Source Shows the current signal source. Picture Mode Shows the selected mode in the PICTURE menu. Lamp Mode Shows the current lamp mode. Resolution Current Shows the native resolution of the input signal. System 3D Format Status Shows the current 3D mode. Color System Shows input system format.

  • Page 49: Maintenance

    Maintenance Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens and case clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

  • Page 50: Lamp Information

    Lamp information Getting to know the lamp hour When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. To obtain the lamp hour information: Press MENU/EXIT and then press to highlight the SYSTEM SETUP: Advanced menu.

  • Page 51: Timing Of Replacing The Lamp

    50), you may continue to operate the Lamp>XXXX Hours projector until the next hour lamp warning appears. Order a new lamp at lamp.benq.com Press MODE/ENTER to dismiss the message. It is strongly recommended that you replace the Notice lamp at this age. The lamp is a consumable item.

  • Page 52: Replacing The Lamp

    Replacing the lamp • To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp. • To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

  • Page 53: The Projector

    Use the handle to slowly pull the lamp out of the projector. • Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector. • Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.

  • Page 54: Resetting The Lamp Timer

    Tighten the screw(s) that secures the lamp cover. • Loose screw may cause a bad connection, which could result in malfunction. • Do not over tighten the screw. Connect the power and restart the projector. Do not turn the power on with the lamp cover removed. Resetting the lamp timer After the startup logo, open the On-Screen Display (OSD) menu.
  • Page 55 Indicators Light Status & Description Power events Stand-by mode. Orange Green Powering up. Flashing Normal operation. Green Orange Normal power-down cooling Flashing Download CW start fail Green Scaler shutdown fail (data abort) Red Flashing LAN download fail LAN download processing Green Green Burn-in ON...

  • Page 56: Troubleshooting

    Troubleshooting The projector does not turn on. Cause Remedy Plug the power cord into the AC power jack on the projector, and plug the power cord into the There is no power from the power cord. power outlet. If the power outlet has a switch, make sure that it is switched on.

  • Page 57: Specifications

    Specifications Projector specifications All specifications are subject to change without notice. Optical Control Resolution RS-232 serial control (MX823ST) 9 pin x 1 1024 x 768 XGA LAN control (MW824ST) RJ45 x 1 1280 x 800 WXGA IR receiver x 2...

  • Page 58: Dimensions

    Dimensions 287.3 232.6 114.4 Unit: mm Ceiling mount installation Ceiling Mount screw: M4 (Max L = 25 mm; Min L = 20 mm) 84.021 199.613 Unit: mm 137.494 Specifications...

  • Page 59: Wall Mount Installation

    Wall mount installation Minimum installation requirements Computer Resolution: SMART Smart Promethean Promethean Hitachi Diagram StarBoard Board Board ActivBoard ActivBoard ClassBoard2 StarBoard Image Reference FX-77 77.5 FX-63 Resolution: Image Diagonal (inches) Image 1173 1189 1181 1173 Height (mm) Image 1300 1565 1300 1585 1575...
  • Page 60 Computer Resolution: SMART Promethean Hitachi Hitachi Diagram WXGA Board ActivBoard FX-TRIO- FX-DUO- Reference Image Resolution: WXGA Image Diagonal (inches) 1171 1171 1181 1181 Image Height (mm) 1874 1874 1887 1887 Image Width (mm) Distance from floor to bottom of image (mm) Distance from screen surface to projector lens (mm) Distance from top case to...
  • Page 61 The dimensions are based on the BenQ wall mount (P/N: 5J.J4R10.001). • All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.

  • Page 62: Timing Chart

    1024 x 768 XGA_85 84.997 68.667 94.500 XGA_120** 119.989 97.551 115.5 (Reduce Blanking) 1152 x 864 1152 x 864_75 67.5 BenQ 1024 x 576 60.0 35.820 46.966 Notebook_timing BenQ 1024 x 600 64.995 41.467 51.419 Notebook_timing 1280 x 720 1280 x 720_60* 45.000...
  • Page 63 119.989 97.551 115.5 (Reduce Blanking) 1152 x 864 1152 x 864_75 67.5 1280 x 768 1280 x 768_60* 59.87 47.776 79.5 BenQ Notebook 1024 x 576@60Hz 60.00 35.820 46.996 Timing BenQ Notebook 1024 x 600@65Hz 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60* 45.000...
  • Page 64 • The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen. Vertical Horizontal Pixel Timing Resolution Frequency Frequency Frequency Remark (Hz) (kHz) (MHz) 480i* 720 x 480 59.94 15.73...
  • Page 65 Supported timing for Component-YP input Vertical Horizontal Pixel Frequency Timing Resolution Frequency (Hz) Frequency (kHz) (MHz) 480i* 720 x 480 59.94 15.73 13.5 480p* 720 x 480 59.94 31.47 576i 720 x 576 15.63 13.5 576p 720 x 576 31.25 720/50p 1280 x 720 37.5...

  • Page 66: Warranty And Copyright Information

    Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.
