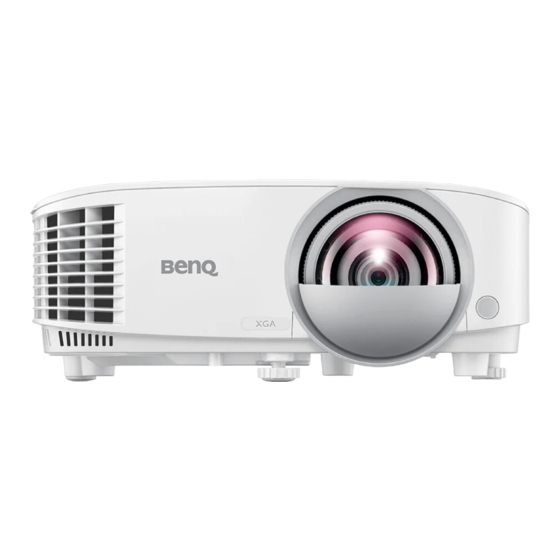

BenQ MX808STH User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Projector
User Manual
MX808STH / MW809STH
V 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX808STH and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ MX808STH

Summary of Contents for BenQ MX808STH

  • Page 1 Digital Projector User Manual MX808STH / MW809STH V 1.00...

  • Page 2: Warranty And Copyright Information

    For other information, please visit www.BenQ.com. Copyright Copyright © 2020 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

  • Page 3: Table Of Contents

    Table of Contents Warranty and Copyright information ................2 Important safety instructions ....................4 Introduction .......................... 7 Shipping contents ............................7 Projector exterior view ..........................8 Controls and functions..........................9 Positioning your projector ....................12 Choosing a location ..........................12 Obtaining a preferred projected image size..................

  • Page 4: Important Safety Instructions

    Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. 1.
  • Page 5 9. Never replace the lamp assembly or any 13. Always place the projector on a level, electronic components unless the projector is horizontal surface during operation. unplugged. - Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back.
  • Page 6 50 cm clearance from walls and free flow of air around the projector. outlet and call BenQ to have the projector - Locations where temperatures may become serviced. excessively high, such as the inside of a car with all windows rolled up.

  • Page 7: Introduction

    Introduction Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories Remote control with Projector Quick start guide batteries Warranty card* Power cord •...

  • Page 8: Projector Exterior View

    Projector exterior view 1. Focus ring 11. HDMI 2 input port 2. Vent (air exhaust) 12. USB Type A port (Power for Touch kit) 3. Adjuster feet 13. USB Mini-B port 4. Projection lens 14. RGB (PC) signal input jacks 5.

  • Page 9: Controls And Functions

    Controls and functions Projector & Remote control • All the key presses described in this document are available on the remote control or projector. • The remote control is without laser pointer in Japan INFO 5. Arrow keys ( , POWER When the On-Screen Display (OSD) menu is Toggles the projector between standby mode...
  • Page 10 6. SOURCE 16. PAGE /PAGE Displays the source selection bar. Operate your display software program (on a connected PC) which responds to page 7. ECO BLANK up/down commands (like Microsoft Used to hide the screen picture. PowerPoint). Do not block the projection lens from 17.
  • Page 11 Remote control effective range The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor(s) to function correctly. The distance between the remote control and the sensor(s) should not exceed 8 meters (~ 26 feet). Make sure that there are no obstacles between the remote control and the IR sensor(s) on the projector that might obstruct the infra-red beam.

  • Page 12: Positioning Your Projector

    Purchase the BenQ Projector Ceiling Note that a special rear projection screen and the Mount Kit from your dealer to mount your BenQ Projector Ceiling Mount Kit are required projector on the ceiling. for this installation location. After turning on the projector, go to Advanced Menu - Settings > Projector Installation >...

  • Page 13: Obtaining A Preferred Projected Image Size

    All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.

  • Page 14: Mounting The Projector

    If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may fall down due to an improper attachment through the use of the wrong gauge or length screws.

  • Page 15: Adjusting The Projected Image

    • Consider the surrounding temperature where the projector is ceiling/wall mounted. If a heater is used, the temperature around the ceiling may be higher than expected. • Read the user manual for the mounting kit about the range of torque. Tightening with torque exceeding the recommended range may cause damage to the projector and subsequently falling off.
  • Page 16 Fine-tuning the image clarity Sharpen the image by rotating the focus ring. Correcting keystone Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection. To correct this, you will need to manually correct it following these steps. 1.

  • Page 17: Connection

    Connection When connecting a signal source to the projector, be sure to: 1. Turn all equipment off before making any connections. 2. Use the correct signal cables for each source. 3. Ensure the cables are firmly inserted. A/V device Touch module VGA cable VGA to DVI-A cable...
  • Page 18 You need only connect the projector to a video source device using just one of the connecting methods, however each provides a different level of video quality. Terminal Picture quality Best HDMI Component Video (through RGB Better input) Connecting audio The projector has built-in mono speaker(s) which are designed to provide basic audio functionality accompanying data presentations for business purposes only.

  • Page 19: Operation

    Operation Starting up the projector 1. Plug the power cord. Turn on the power outlet switch (where fitted). The power indicator on the projector lights orange after power has been applied. 2. Press on the projector or on the remote control to start the projector.

  • Page 20: Using The Menus

    Using the menus The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various adjustments and settings. • Basic OSD menu: provides primary menu functions. (See Basic menu on page • Advanced OSD menu: provides full menu functions. (See Advanced menu on page To access the OSD menu, press MENU on the projector or remote control.

  • Page 21: Securing The Projector

    Likewise, when you wish to switch from the Advanced OSD menu to the Basic OSD menu, follow the instructions below: 1. Go to Advanced Menu - System > Menu Settings and press OK. 2. Select Menu Type and OK. 3. Press / to select Basic. Next time when you turn on the projector, you may access the Basic OSD menu by pressing MENU.
  • Page 22 Please write down the recall code, and contact 2. Write down the number and turn off your projector. BenQ Customer Center. 3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of Recall Code: purchase documentation to verify that you are an authorized user of the projector.

  • Page 23: Switching Input Signal

    Switching input signal The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. When starting Source up, the projector automatically searches for the available signals. Be sure the Advanced Menu - Settings > Auto Source Search menu is On if you want the projector to automatically search for the signals.

  • Page 24: Menu Operation

    There are several options to set the image's aspect ratio depending on your input signal source. • Auto: Scales an image proportionally to fit (MX808STH) (MW809STH) the projector's native resolution in its horizontal or vertical width.
  • Page 25 Picture Mode • Video: Is suitable for playing videos in an environment where there is ambient light. Dynamic color details are preserved by BenQ enhancement technology. • sRGB: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.

  • Page 26: Advanced Menu

    Picture Mode • Video: Is suitable for playing videos in an environment where there is ambient light. Dynamic color details are preserved by BenQ enhancement technology. • sRGB: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.
  • Page 27 The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes. Tint Only YUV color space is supported. Sharpness The higher the value, the sharper the picture becomes. This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture.
  • Page 28 Color Temperature There are several preset color temperature settings available. The available settings may vary according to the signal type selected. • Normal: Maintains normal colorings for white. • Cool: Makes images appear bluish white. • Warm: Makes images appear reddish white. Color Temperature Tuning You can also set a preferred color temperature by adjusting the following options.
  • Page 29 Display There are several options to set the image's aspect ratio depending on your input signal source. • Auto: Scales an image proportionally to fit (MX808STH) (MW809STH) the projector's native resolution in its horizontal or vertical width. 15:9 picture • Real: Projects an image as its original...
  • Page 30 This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images. •...
  • Page 31 Digital Zoom Magnifies or reduces the projected image. 1. After the Zoom bar displays, press repeatedly to magnify the picture to a desired size. 2. To navigate the picture, press OK to switch to the panning mode and press the directional arrows ( , ) on the projector or remote control to navigate the picture.
  • Page 32 • On: Allows the projector to automatically determines the best picture timings for the displayed image when PC signal (analog RGB) is selected and AUTO is Auto Sync pressed. • Off: The projector will not respond when AUTO is pressed. •...
  • Page 33 Quick Cooling: Selecting On enables the function and projector cooling time will be shortened from a normal 90-second duration to approximately 15 seconds. Blank Timer Sets the image blank time when there is no action taken on the blank screen, once elapsed the image will return to the screen.
  • Page 34 Selects a baud rate that is identical with your computer’s so that you can connect Baud Rate the projector using a suitable RS-232 cable and update or download the projector’s firmware. This function is intended for qualified service personnel. Adjusts the equalizer gain settings for an HDMI signal. The higher the setting, the HDMI stronger the gain value.
  • Page 35 Returns all of the adjustments you’ve made for the System menu to the factory Reset System preset values. Information • Native Resolution: Shows the native resolution of the projector. • Detected Resolution: Shows the native resolution of the input signal. •...

  • Page 36: Maintenance

    Maintenance Care of the projector Cleaning the lens Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the projector and let it cool down completely before cleaning the lens. • Use a canister of compressed air to remove dust. •...
  • Page 37 The following Lamp warning displays will remind you to change the lamp. Notice Order a replacement lamp Install a new lamp for optimal performance. Press Equivalent lamp hour >XXXX hours dismiss the message. Order a new lamp at www.BenQ.com Maintenance...
  • Page 38 Replace lamp soon diminishes with use. This is normal lamp behavior. You can Equivalent lamp hour >XXXX hours replace the lamp whenever you notice that the brightness level Order a new lamp at www.BenQ.com has significantly diminished. Press to dismiss the message.
  • Page 39 3. Remove the lamp cover from the projector. • Do not turn the power on with the lamp cover open. • Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries 4.
  • Page 40 13. Tighten the screw that secures the lamp cover. • Loose screw may cause a bad connection, which could result in malfunction. • Do not over tighten the screw. 14. .Connect the power and restart the projector. Resetting the lamp timer 15.
  • Page 41 Indicators Light Status & Description Power events Stand-by mode Powering up Normal operation Normal power-down cooling Download CW start fail Lamp events Lamp error in normal operation Lamp is not lit up Lamp life exhausted Thermal events Fan 1 error (the actual fan speed is outside the desired speed) Fan 2 error (the actual fan speed is outside the desired speed) Fan 3 error (the actual fan speed is outside the desired speed) Temperature 1 error (over limited temperature)

  • Page 42: Troubleshooting

    Troubleshooting The projector does not turn on. Cause Remedy Plug the power cord into the AC power jack on the projector, and plug the power cord into the power outlet. If There is no power from the power cord. the power outlet has a switch, make sure that it is switched Attempting to turn the projector on again during Wait until the cooling down process has completed.

  • Page 43: Specifications

    Specifications Projector specifications All specifications are subject to change without notice. Optical Resolution Input terminals 1024 x 768 XGA (MX808STH) Computer input 1280 x 800 WXGA (MW809STH) RGB input Display system D-Sub 15-pin (female) x 2 1-CHIP DMD Video signal input...

  • Page 44: Dimensions

    Dimensions 296 mm (W) x 120 mm (H) x 239 mm (D) Unit: mm Specifications...

  • Page 45: Timing Chart

    1024 x 768 XGA_85 84.997 68.667 94.500 XGA_120 (Reduce 119.989 97.551 115.5 Blanking) 1152 x 864 1152 x 864_75 67.5 BenQ 1024 x 576 60.0 35.820 46.966 Notebook_timing BenQ 1024 x 600 64.995 41.467 51.419 Notebook_timing 1280 x 720 1280 x 720_60 45.000...
  • Page 46 119.989 97.551 115.5 Blanking) 1152 x 864 1152 x 864_75 67.5 1280 x 768 1280 x 768_60 59.87 47.776 79.5 BenQ Notebook 1024 x 576@60Hz 60.00 35.820 46.996 Timing BenQ Notebook 1024 x 600@65Hz 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60 45.000...
  • Page 47 • Video timings Supported 3D format Vertical Horizontal Pixel Timing Resolution Frequency Frequency Frequency Frame Frame Side by (Hz) (kHz) (MHz) Sequential Packing Bottom Side 480i 720 x 480 59.94 15.73 480p 720 x 480 59.94 31.47 576i 720 x 576 15.63 576p 720 x 576...
