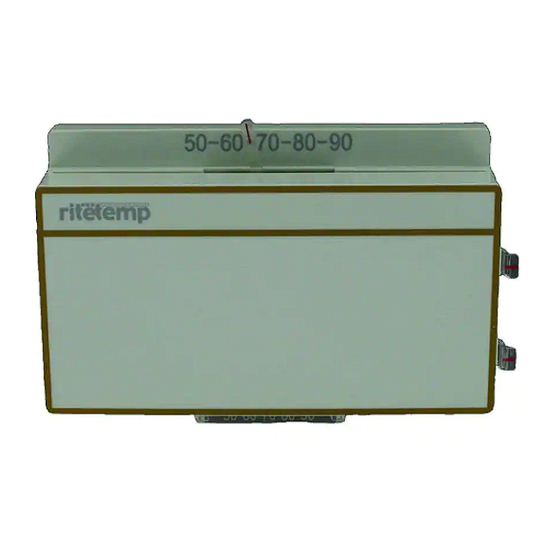

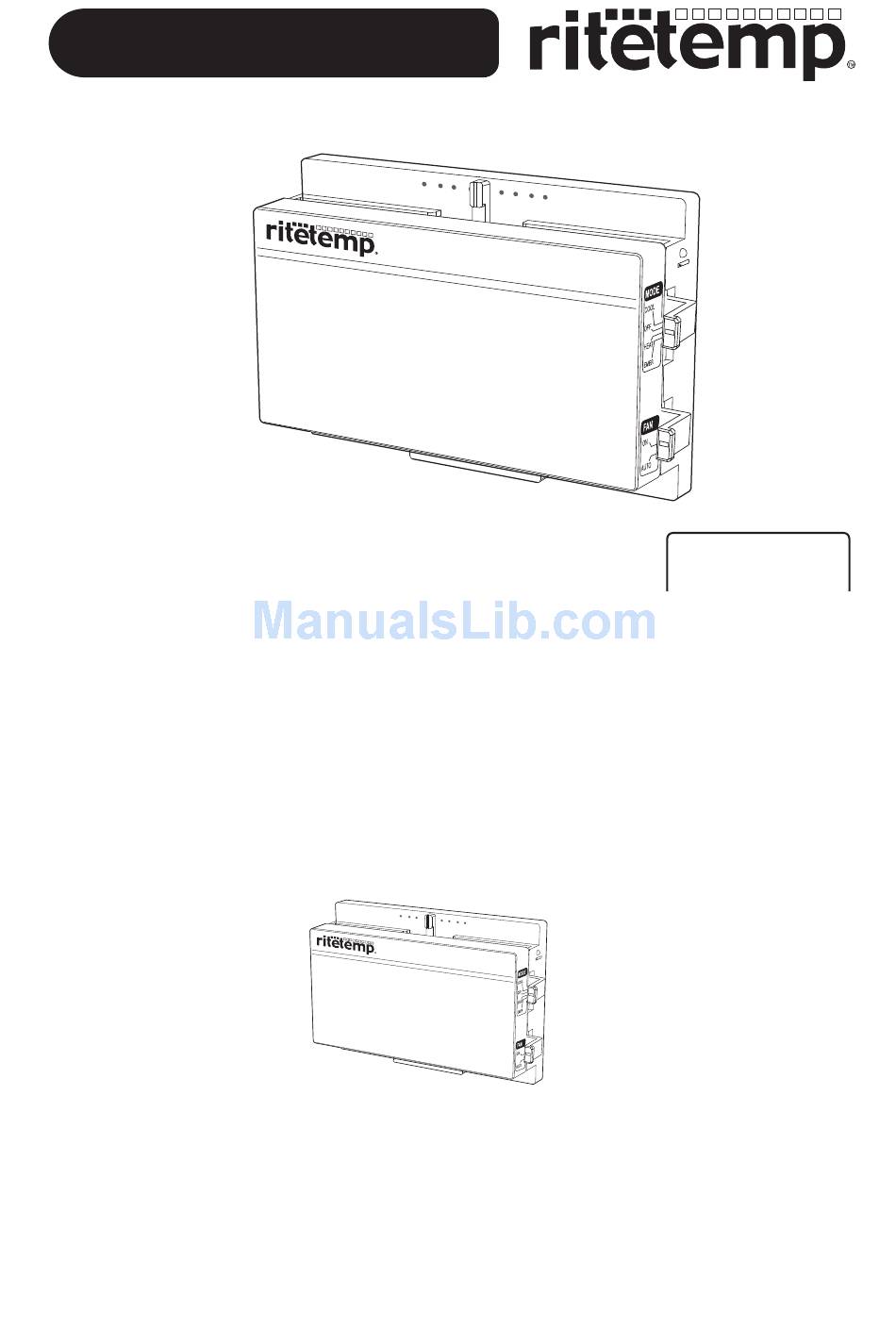

- Page 1 Install guide 8010 5 0 6 0 7 0 8 0 9 0 ENGLISH 5 0 6 0 7 0 8 0 9 0 Customer Support: 888-515-2585 or Visit our webiste www.ritetemp-thermostats.com Made in China 1-402-033...
- Page 2 Install guide 8010 To avoid electrical shock and to prevent damage to the furnace, air conditioner, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. You will need #1 Phillips screwdriver (small) and Tools Drill with 3/16-in.
- Page 3 ï Wind them around a pencil to keep them from falling. ï Remove the old thermostat from the wall. Fill wall opening with fiber glass insulation to prevent drafts. 3 Mount the 8010 50 60 70 80 90 ï Separate front from back of unit. Grasp the front of the unit and the back of the unit and pull apart.
- Page 4 The batteries will last well over 1 year. If the batteries are not replaced the thermostat will stop working. 2) The 8010 can run on the C wire if available. As shown in the wiring diagrams, The C wire is the other side of the 24VAC heating...
- Page 5 If you have a Zoned Heating/Cooling system with multiple thermostats, please refer to our website at www.ritetemp-thermostats.com for installation notes or call 1-888-515-2585. Before you Connect Wires Please refer back to these guidelines for safe and secure wire connections.
- Page 6 Go To Page 16 Go To Page 15 Go To Page 17 If you do not find the wiring information for your system try our webiste www.ritetemp-thermostats.com for more information or call our customer service hotline at 888-515-2585. 50 60 70...
- Page 7 2 WIRE Heating a c e F r o m F u r n (GAS MILLIVOLT or 24vac STEP 1 - Connect the R (or RH) wire to the RH terminal Thermostat on the thermostat. This connects the Heater Power to the thermostat. jumper wire STEP 2 - Connect the W wire...
- Page 8 a c e F ro m F u rn STEP 1 - Connect the Y wire to a n d A C u n 4 WIRE NON_HEAT PUMP the Y terminal on the thermostat. This connects to the Cooler Thermostat compressor.
- Page 9 Over to the O or B terminal on the thermostat. (If you have Single Stage HEAT PUMP both O and B contact Ritetemp or your local HVAC contractor for further help) This connects the change NOTE: Wires marked with over valve.
- Page 10 Your HVAC system is now connected to the thermostat. 8010 Features The 8010 can be used with most 24 volt gas, oil or electric heating and air conditioning systems, heat pump systems with or without auxiliary heat, Normal 2 Stage systems, Zoned Hot-Water, Zoned Forced air systems, or gas millivolt heating systems.
