Operating Manual
Install guide 8030C
Customer Support: 888-515-2585 or Visit our website
www.ritetemp-thermostats.com
401-010
Advertisement
Related Manuals for ritetemp 8030c
Summary of Contents for ritetemp 8030c

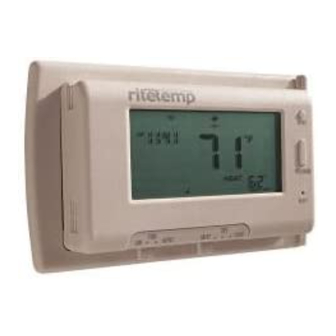

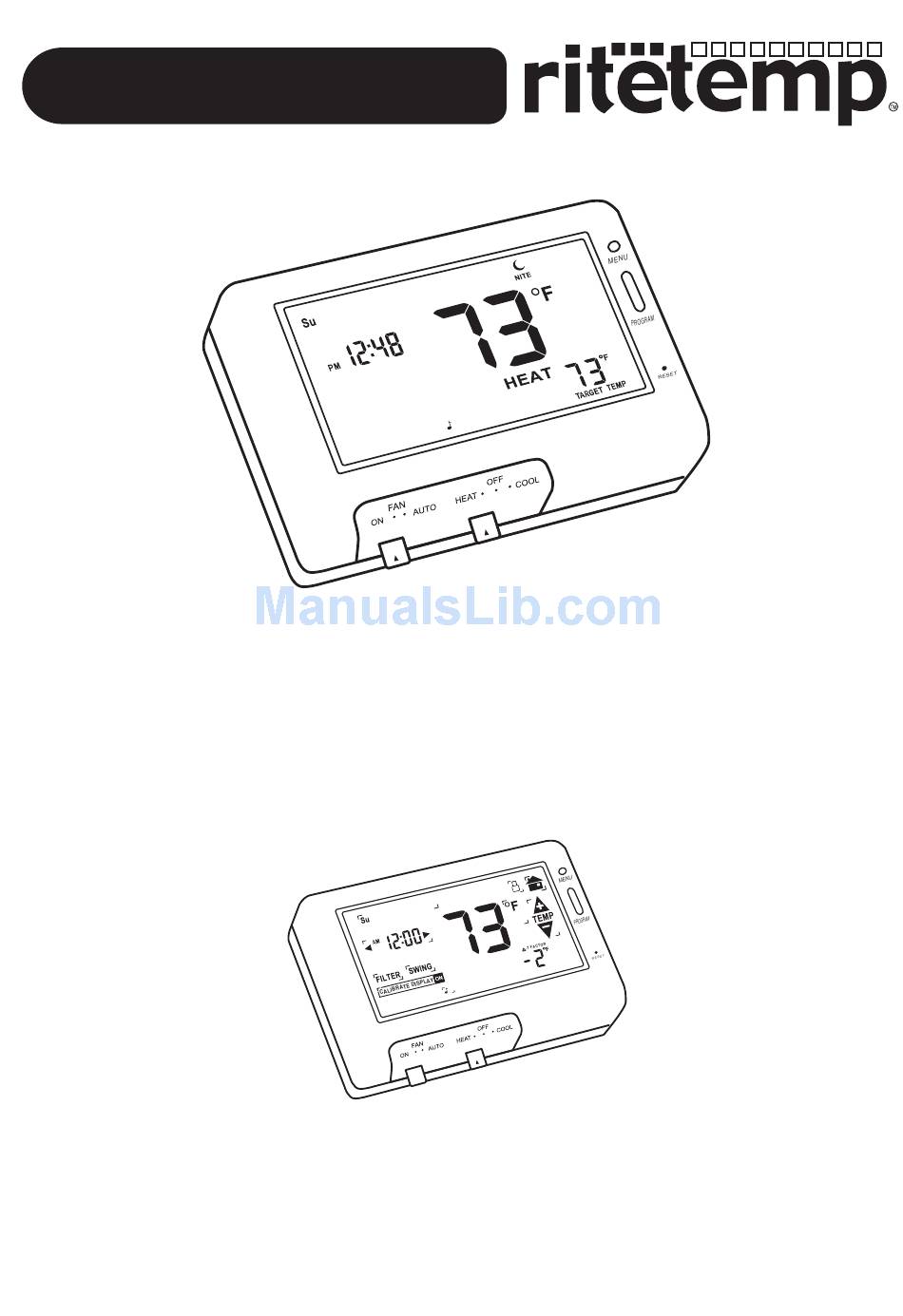

- Page 1 Install guide 8030C Customer Support: 888-515-2585 or Visit our website www.ritetemp-thermostats.com 401-010...
- Page 2 Install guide 8030C To avoid electrical shock and to prevent damage to the furnace, air conditioner, Caution and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker, or at the appliance. You will need #1 Phillips screwdriver (small) and Tools Drill with 3/16-in.
- Page 3 Fill wall opening with non-combustible insulation to prevent drafts. 3 Mount the 8030C Separate front from back of unit. Press up on the catch on bottom of thermostat and swing the body away from the base, lift up to remove the body from the base.
- Page 4 C wire and this will extend battery life. If you have zoned heating/cooling systems with multiple thermostats, please refer to the website at www.ritetemp-thermostats.com for installation details or call 1-888-515-2585 for assistance. 5 What Wires Do You Have?
- Page 5 5 Install Batteries The 8030C requires batteries to operate your furnace and retain its programming in memory. Switch MODE switch to OFF and the FAN switch to AUTO.
- Page 6 The batteries will last well over 1 year. If the batteries are not replaced the thermostat will stop working. 2) The 8030C can run on the C wire if available. 24VAC ONLY As shown in the wiring diagrams, The C wire is the other side of the 24VAC heating transformer.
- Page 7 2 WIRE Heating a c e F r o m F u r n (GAS MILLIVOLT or 24vac STEP 1 - Connect the R (or Thermostat RH) wire to the RH terminal on the thermostat. This connects the Heater jumper Power to the thermostat.
-
Page 8: Hvac System
a c e F ro m F u rn 4 WIRE a n d A C u n STEP 1 - Connect the Y Thermostat wire to the Y terminal on the thermostat. This connects to the Cooler jumper compressor. wire STEP 2 - Connect the RH or R Cool... -
Page 9: Single Stage Heat Pump
NOTE: Wires marked with the dotted line are optional. 8030C Features The 8030C can be used with most 24 volt gas, oil or electric heating and air conditioning systems, single-stage heat pumps or gas millivolt heating systems. It cannot be used with 120 volt heating systems or multistage heat pumps.
