Operation 8082C
ENGLISH
Customer Support: 888-515-2585 or Visit our webiste www.ritetemp-thermostats.com
1-402-012
Printed in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8082C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ritetemp 8082C

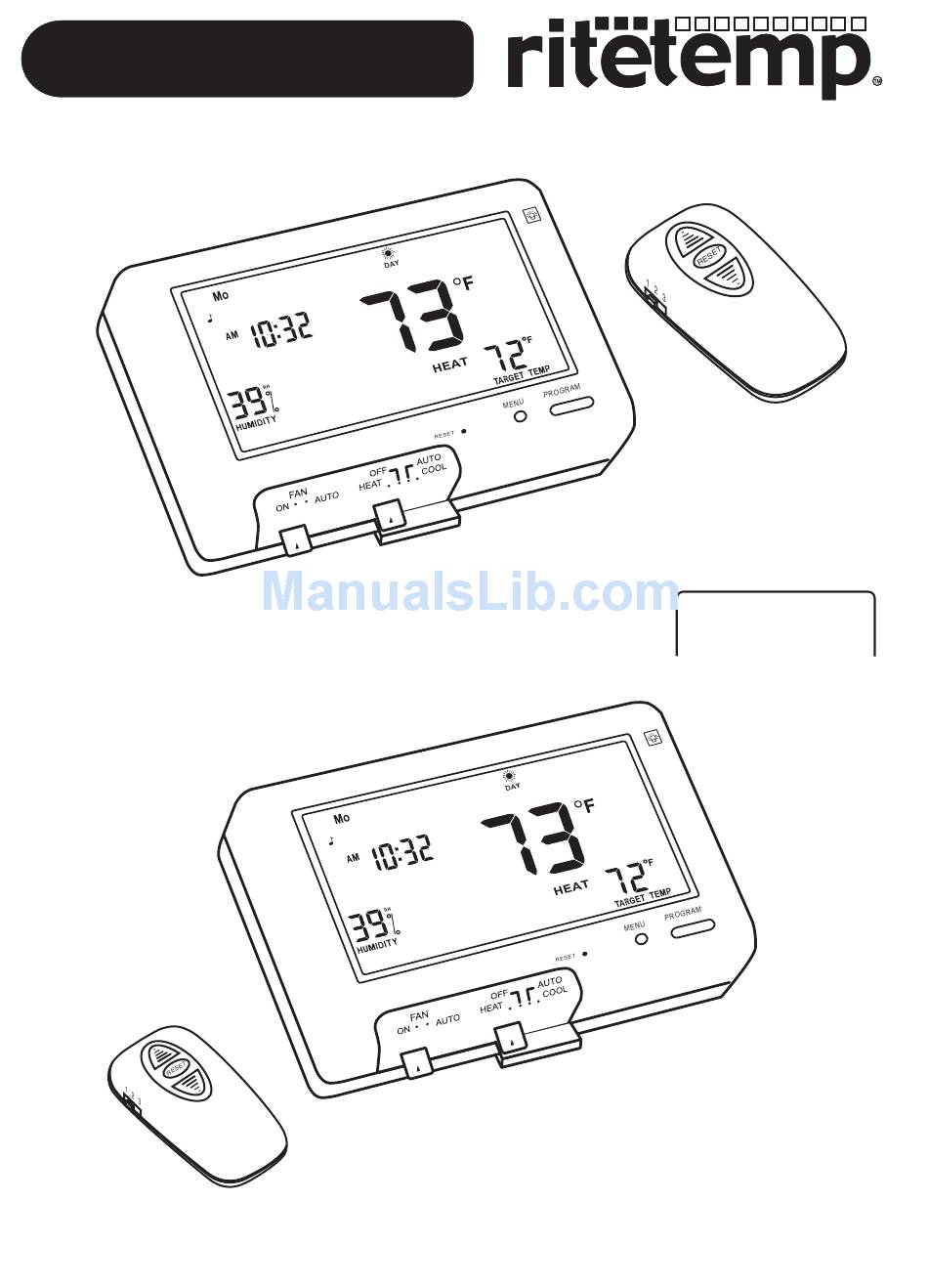

  • Page 1 Operation 8082C ENGLISH Customer Support: 888-515-2585 or Visit our webiste www.ritetemp-thermostats.com 1-402-012 Printed in China...
  • Page 2: Basic Screens

    Basic Screens The MODE SWITCH of the 8082C must be in the HEAT or the COOL position to access all control functions. The 8082C Thermostat has 3 basic screens. The HOME screen is displayed when unit is operating your system.
  • Page 3: Menu Screen

    MENU screen Displayed when the MENU button is pressed from the HOME screen. Return Temperature Swing set Set Day Lock Program HOME Touch this area to set Touch for 5 sec Filter Timer set the day of the week. to lock or unlock Chirp set Touch this to turn the audible chirp on or off.
  • Page 4: Auto-Run

    The Mode Switch must be in 1 Configure HEAT or COOL mode to configure. ï Press MENU, from the home screen, to configure the thermostat. ï Set day of the week - Touch the Day of the week area to cycle through the days of the week to select the current day.
  • Page 5: Program

    NOTE: 60 Second Rule-During programming, if a button is not pushed in 60 seconds, the unit will return to the home screen. Everything you have changed while programming will be saved. 3 Program Press PROGRAM, from the HOME screen, to go to the program screen - Select HEAT with the HEAT/COOL MODE switch - Select the PROGRAM (A or B) you want to set - ï...
  • Page 6 MANUAL override screen The 8082C has 3 manual override commands. These are accessed by touching the Current Temp Display at the HOME screen (center of screen). Target Temperature Return HOME HOLD Touch this area to set a comfortable target temp for the system to hold until you return and remove HOLD.
  • Page 7: Special Features

    2 seconds. Filter The 8082C has a feature that keeps track of actual furnace run time and reminds you to periodically replace your system's air filter. ï Press MENU, from the HOME screen, and touch FILTER icon.
  • Page 8 (MN21) NOTE: The remote control system for the 8082c operates on external "C" wire power only. The thermostat must be connected to the "C" wire or a 24vac power source for the remote to function. If...
  • Page 9 Minimum Humidity setting (requires a built-in humidifier and HEAT mode)- This thermostat can be used to humidify by turning on a humidifier in the furnace. Connect the H terminal on the 8082C to the humidifier control relay. To set the MIN humidity level desired - ï...
